Parts Location: Illustration

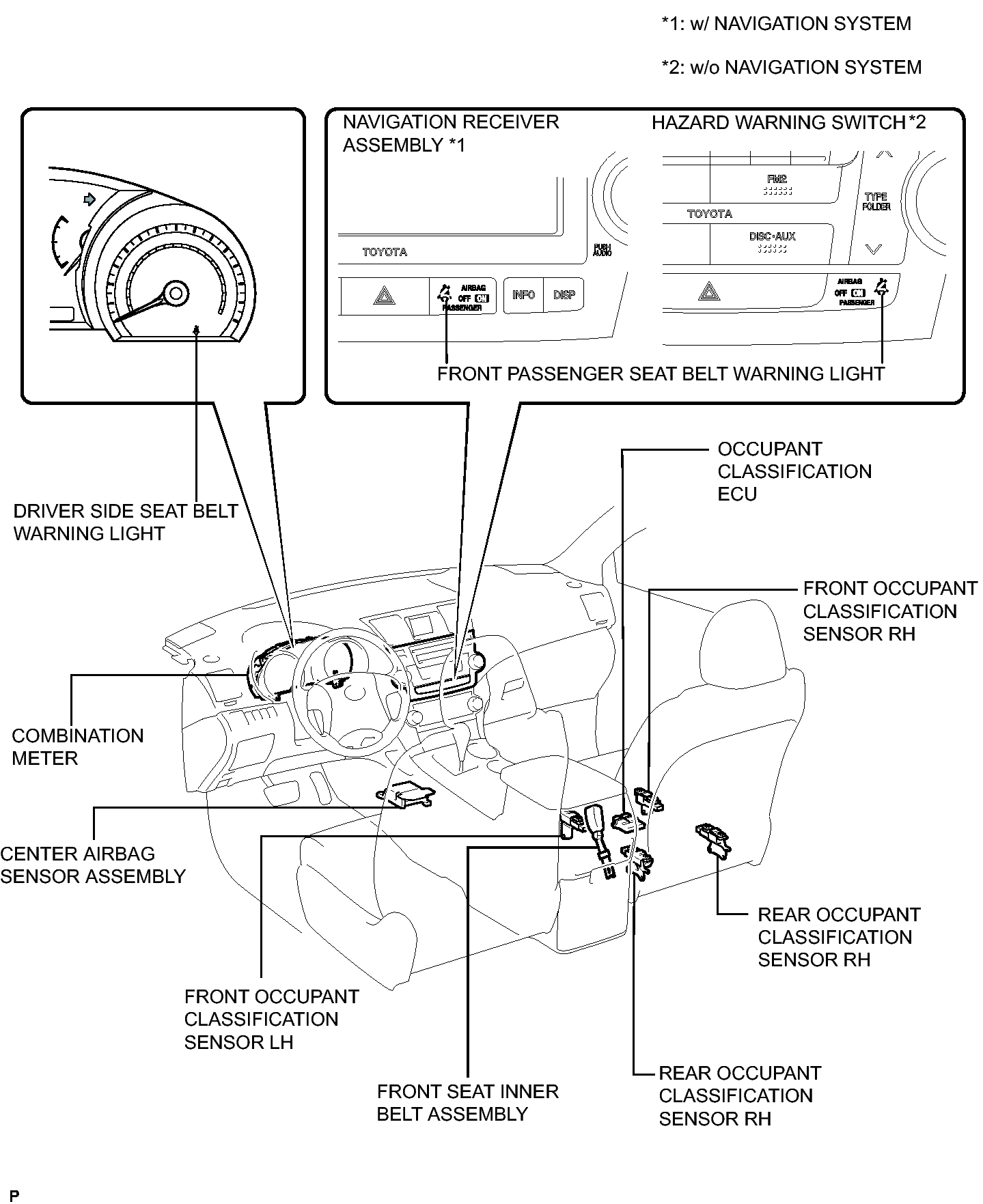

Fig 1: Identifying Seat Belt Warning System Components Location

GTY169335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
