Driver Side Seat Belt Warning Light does not Operate: Wiring Diagram

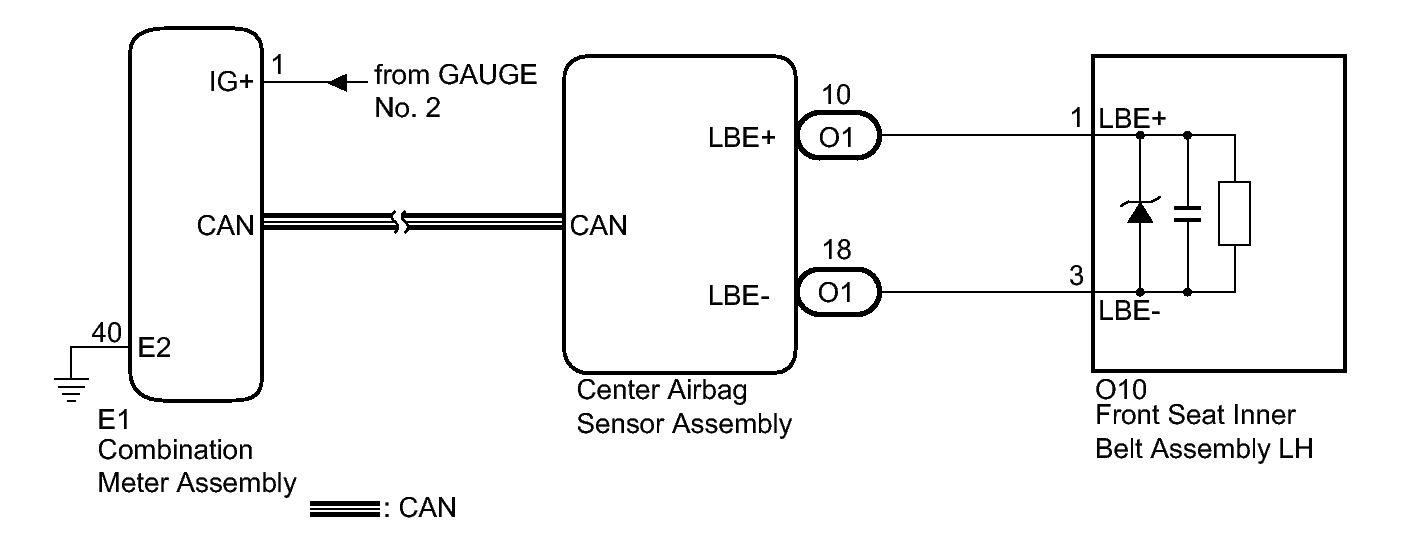

Fig 1: Driver Side Seat Belt Warning Light- Wiring Diagram

GTY296454

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
