DTC P0AD2-123: Hybrid Battery Pack Cooling Fan 3 Control Circuit Low: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK DTC OUTPUT (DTC P0AFC-123 IS OUTPUT) See step   1

    B → See step   20

    A: Go to next step

  2. CHECK DTC OUTPUT
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Read output DTCs. Refer to DTC CHECK / CLEAR .
      RESULT

      Result Proceed to
      P0AD2-123 is output A
      P0A84-123, P0A99-123, and P0AD2-123 are output B

    B → See step   9

    A: Go to next step

  3. CHECK BATTERY COOLING BLOWER ASSEMBLY (NO. 2) See step   2

    B → See step   19

    A: Go to next step

  4. CHECK HARNESS AND CONNECTOR (BATT FAN RELAY - BATTERY COOLING BLOWER ASSEMBLY [NO. 2])
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Disconnect the cable from the negative (-) battery terminal.
    2. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch ON (READY), unless instructed by the repair information because this may cause a malfunction.

    3. Remove the battery cover. Refer to REMOVAL .
    4. Disconnect the O47 connector from the battery cooling blower assembly (No. 2).

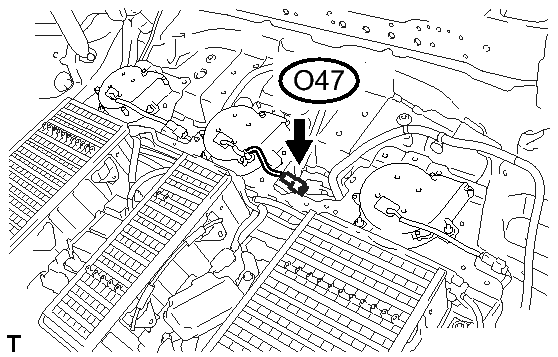

      Fig 1: Identifying Battery Cooling Blower Assembly (No. 2) & Connector
      GTY301787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the BATT FAN relay.
      Fig 2: Identifying Fuse (BATT FAN)
      GTY254294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Room No. 3 Relay Block
      *2 BATT FAN Relay
    6. Measure the resistance according to the value(s) in the table below.
      Fig 3: Checking Harness And Connector (BATT FAN Relay - Battery Cooling Blower Assembly [No. 2])
      GTY301777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      BATT FAN relay terminal 5 - O47-1 (IG2) Ignition switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Engine Room No. 3 Relay Block
      *2 Front view of wire harness connector
      (to Battery Cooling Blower Assembly [No. 2])
      *3 BATT FAN Relay Holder
      NOTE:

      When taking a measurement with a tester, do not apply excessive force to the tester probe to avoid damaging the holder.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (BATTERY SMART UNIT - BATTERY COOLING BLOWER ASSEMBLY [NO. 2])
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Disconnect the cable from the negative (-) battery terminal.
    2. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch ON (READY), unless instructed by the repair information because this may cause a malfunction.

    3. Remove the battery cover. Refer to REMOVAL .
    4. Disconnect the O47 connector from the battery cooling blower assembly (No. 2).
      Fig 4: Identifying Battery Cooling Blower Assembly (No. 2) & Connector
      GTY301787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the z18 connector from the battery smart unit.
    6. Measure the resistance according to the value(s) in the table below.
      Fig 5: Checking Harness And Connector (Battery Smart Unit - Battery Cooling Blower Assembly [No. 2])
      GTY294465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      z18-1 (VM2) - O47-2 (VM2) Ignition switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      z18-1 (VM2) or O47-2 (VM2) - Body ground Ignition switch off 10 kΩ or more
      TEXT IN ILLUSTRATION

      *1 Rear view of wire harness connector
      (to Battery Smart Unit)
      *2 Front view of wire harness connector
      (to Battery Cooling Blower Assembly [No. 2])

    NG → See step   25

    OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR (BATTERY COOLING BLOWER ASSEMBLY [NO. 2] - BODY GROUND)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Disconnect the cable from the negative (-) battery terminal.
    2. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch ON (READY), unless instructed by the repair information because this may cause a malfunction.

    3. Remove the battery cover. Refer to REMOVAL .
    4. Disconnect the O47 connector from the battery cooling blower assembly (No. 2).
      Fig 6: Identifying Battery Cooling Blower Assembly (No. 2) & Connector
      GTY301787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Measure the resistance according to the value(s) in the table below.
      Fig 7: Checking Harness And Connector (Battery Cooling Blower Assembly [No. 2] - Body Ground)
      GTY305995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      O47-4 (GND2) - Body ground Ignition switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Battery Cooling Blower Assembly [No. 2])

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BATTERY COOLING BLOWER ASSEMBLY [NO. 2])
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Disconnect the cable from the negative (-) battery terminal.
    2. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch ON (READY), unless instructed by the repair information because this may cause a malfunction.

    3. Remove the battery cover. Refer to REMOVAL .
    4. Disconnect the O47 connector from the battery cooling blower assembly (No. 2).
      Fig 8: Identifying Battery Cooling Blower Assembly (No. 2) & Connector
      GTY301787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the A65 connector from the hybrid vehicle control ECU. Refer to REMOVAL .
    6. Measure the resistance according to the value(s) in the table below.
      Fig 9: Checking Harness And Connector (Hybrid Vehicle Control ECU - Battery Cooling Blower Assembly [No. 2])
      GTY296245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      O47-3 (SI2) - A65-18 (SI2) Ignition switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      O47-3 (SI2) or A65-18 (SI2) - Body ground Ignition switch off 10 kΩ or more
      TEXT IN ILLUSTRATION

      *1 Rear view of wire harness connector
      (to Hybrid Vehicle Control ECU)
      *2 Front view of wire harness connector
      (to Battery Cooling Blower Assembly [No. 2])

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  8. CHECK HYBRID VEHICLE CONTROL ECU
    1. Using an oscilloscope, measure the waveform according to the condition in the table below.
      Fig 10: Checking Hybrid Vehicle Control ECU With Waveform Reference
      GTY303187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Item Content
      Terminal A65-18 (SI2) - D72-6 (E1)
      Equipment Setting 1 V/DIV, 50 μs/DIV
      Condition Ignition switch ON or ON (READY)

      OK

      The waveform in the illustration can be measured.

      HINT:

      • A and B in the DUTY waveform shown in the illustration vary depending on the cooling fan mode.
      • Duty command value is influenced by variance in fan motors and the change of power supply voltage.
      • Measure when the vehicle comes to a stop and an idling stop.
      TEXT IN ILLUSTRATION

      *1 Component with harness connected
      (Hybrid Vehicle Control ECU)

    NG → See step   21

    OK → See step   22

  9. INSPECT FUSE (BATT FAN) See step   9

    NG → See step   16

    OK: Go to next step

  10. INSPECT RELAY (BATT FAN) See step   10

    NG → REPLACE RELAY (BATT FAN)

    OK: Go to next step

  11. CHECK HARNESS AND CONNECTOR (BATT FAN RELAY - BATT FAN FUSE) See step   11

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  12. CHECK HARNESS AND CONNECTOR (BATT FAN RELAY - BATTERY COOLING BLOWER ASSEMBLY [NO. 2])
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Disconnect the cable from the negative (-) battery terminal.
    2. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch ON (READY), unless instructed by the repair information because this may cause a malfunction.

    3. Remove the BATT FAN relay.
      Fig 11: Identifying Fuse (BATT FAN)
      GTY254294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Room No. 3 Relay Block
      *2 BATT FAN Relay
    4. Remove the battery cover. Refer to REMOVAL .
    5. Disconnect the O47 connector from the battery cooling blower assembly (No. 2).
      Fig 12: Identifying Battery Cooling Blower Assembly (No. 2) & Connector
      GTY301787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Measure the resistance according to the value(s) in the table below.
      Fig 13: Checking Harness And Connector (BATT FAN Relay - Battery Cooling Blower Assembly [No. 2])
      GTY301774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      BATT FAN relay terminal 5 - O47-1 (IG2) Ignition switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Engine Room No. 3 Relay Block
      *2 Front view of wire harness connector
      (to Battery Cooling Blower Assembly [No. 2])
      *3 BATT FAN Relay Holder
      NOTE:

      When taking a measurement with a tester, do not apply excessive force to the tester probe to avoid damaging the holder.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BATT FAN RELAY) See step   13

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  14. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BODY GROUND) See step   14

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  15. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BODY GROUND) See step   15

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   21

  16. CHECK HARNESS AND CONNECTOR (BATT FAN RELAY - BODY GROUND) See step   16

    NG → See step   24

    OK: Go to next step

  17. CHECK HARNESS AND CONNECTOR (BATTERY COOLING BLOWER ASSEMBLY [NO. 2] - BODY GROUND)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Disconnect the cable from the negative (-) battery terminal.
    2. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch ON (READY), unless instructed by the repair information because this may cause a malfunction.

    3. Remove the battery cover. Refer to REMOVAL .
    4. Disconnect each of the 3 battery cooling blower assembly connectors.
      Fig 14: Identifying Battery Cooling Blower Assembly (No. 2) & Connector
      GTY301787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Measure the resistance according to the value(s) in the table below.
      Fig 15: Checking Harness And Connector (Battery Cooling Blower Assembly [No. 2] - Body Ground)
      GTY297716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      O47-1 (IG2) - Body ground Ignition switch off 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Battery Cooling Blower Assembly [No. 2])

    NG → See step   24

    OK: Go to next step

  18. CHECK BATTERY COOLING BLOWER ASSEMBLY See step   18

    NG → See step   23

    OK → REPLACE FUSE (BATT FAN)

  19. REPLACE BATTERY COOLING BLOWER ASSEMBLY (NO. 2). Refer to  REMOVAL
  20. GO TO DTC P0AFC-123. Refer to  DTC P0AFC-123: Hybrid Battery Pack Sensor Module
  21. REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL
  22. REPLACE BATTERY SMART UNIT. Refer to  REMOVAL
  23. REPLACE BATTERY COOLING BLOWER ASSEMBLY (MALFUNCTIONING BATTERY COOLING BLOWER ASSEMBLY)
    1. Replace the battery cooling blower assembly (malfunctioning battery cooling blower assembly). Refer to REMOVAL .

    NEXT → REPLACE FUSE (BATT FAN)

  24. REPAIR OR REPLACE HARNESS OR CONNECTOR

    NEXT → REPLACE FUSE (BATT FAN)

  25. CHECK HARNESS AND CONNECTOR (NO. 2 BATTERY PACK WIRE)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Disconnect the cable from the negative (-) battery terminal.
    2. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch ON (READY), unless instructed by the repair information because this may cause a malfunction.

    3. Remove the battery cover. Refer to REMOVAL .
    4. Disconnect the Oz3 connector from the No. 2 battery pack wire.
      Fig 16: Identifying OZ3 Connector And No. 2 Battery Pack Wire
      GTY294919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the z18 connector from the battery smart unit.
    6. Measure the resistance according to the value(s) in the table below.
      Fig 17: Checking Harness And Connector (No. 2 Battery Pack Wire)
      GTY296336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance (Check for Open)

      Tester Connection Switch Condition Specified Condition
      z18-1 (VM2) - Oz3-4 (VM2) Ignition switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Switch Condition Specified Condition
      z18-1 (VM2) or Oz3-4 (VM2) - Body ground Ignition switch off 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 Rear view of wire harness connector
      (to Battery Smart Unit)
      *2 Front view of wire harness connector
      (to No. 2 Battery Pack Wire Connector)

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (NO. 2 BATTERY PACK WIRE)

    OK → REPAIR OR REPLACE HARNESS OR CONNECTOR

scientia non olet · About LEMON Manuals
