DTC P0ABF-123: Hybrid Battery Pack Current Sensor Circuit; DTC P0AC1-123: Hybrid Battery Pack Current Sensor "A" Circuit Low; DTC P0AC2-123: Hybrid Battery Pack Current Sensor "A" Circuit High: Description
WARNING: This page is about a different variant/trim than selected.

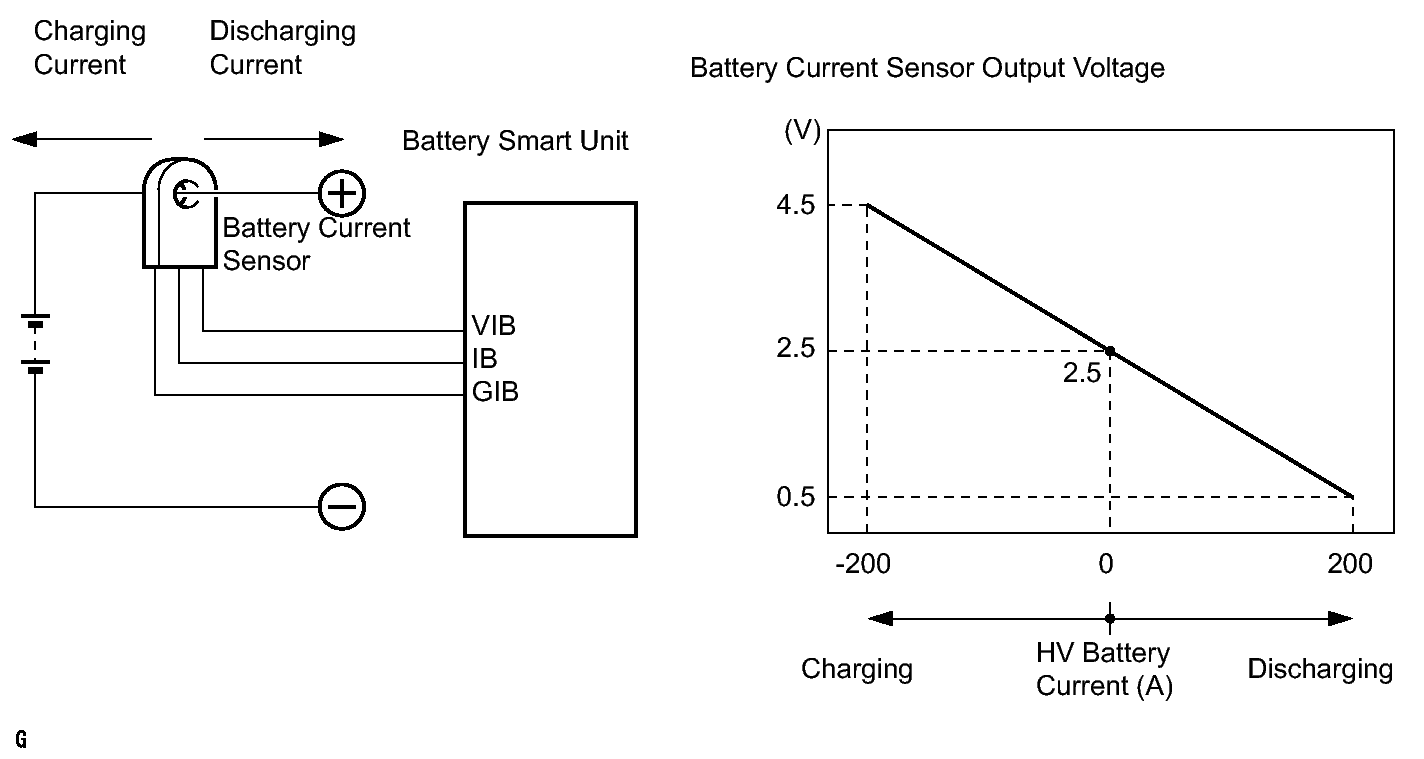

- The battery current sensor, which is mounted on the positive cable side of the HV battery assembly, detects the amperage that flows into the HV battery. The battery smart unit inputs a voltage, which varies between 0 and 5 V in proportion to the amperage, into the IB terminal from the battery current sensor. An output voltage of the battery current sensor below 2.5 V indicates that the HV battery is being discharged, and above 2.5 V indicates that the HV battery is being charged. The hybrid vehicle control ECU determines the charging and discharging amperage of the HV battery based on the signals that are input to its IB terminal from the battery smart unit, and calculates the SOC (state of charge) of the HV battery through the accumulated amperage.
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| P0ABF-123 P0AC1-123 P0AC2-123 |
When the battery current sensor is abnormal (1 trip detection) |
|
