DTC P0A9A-123: Hybrid Battery Pack Cooling Fan 2 Control Circuit High: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Battery Temperature Sensor Wiring Diagram
GTY296113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

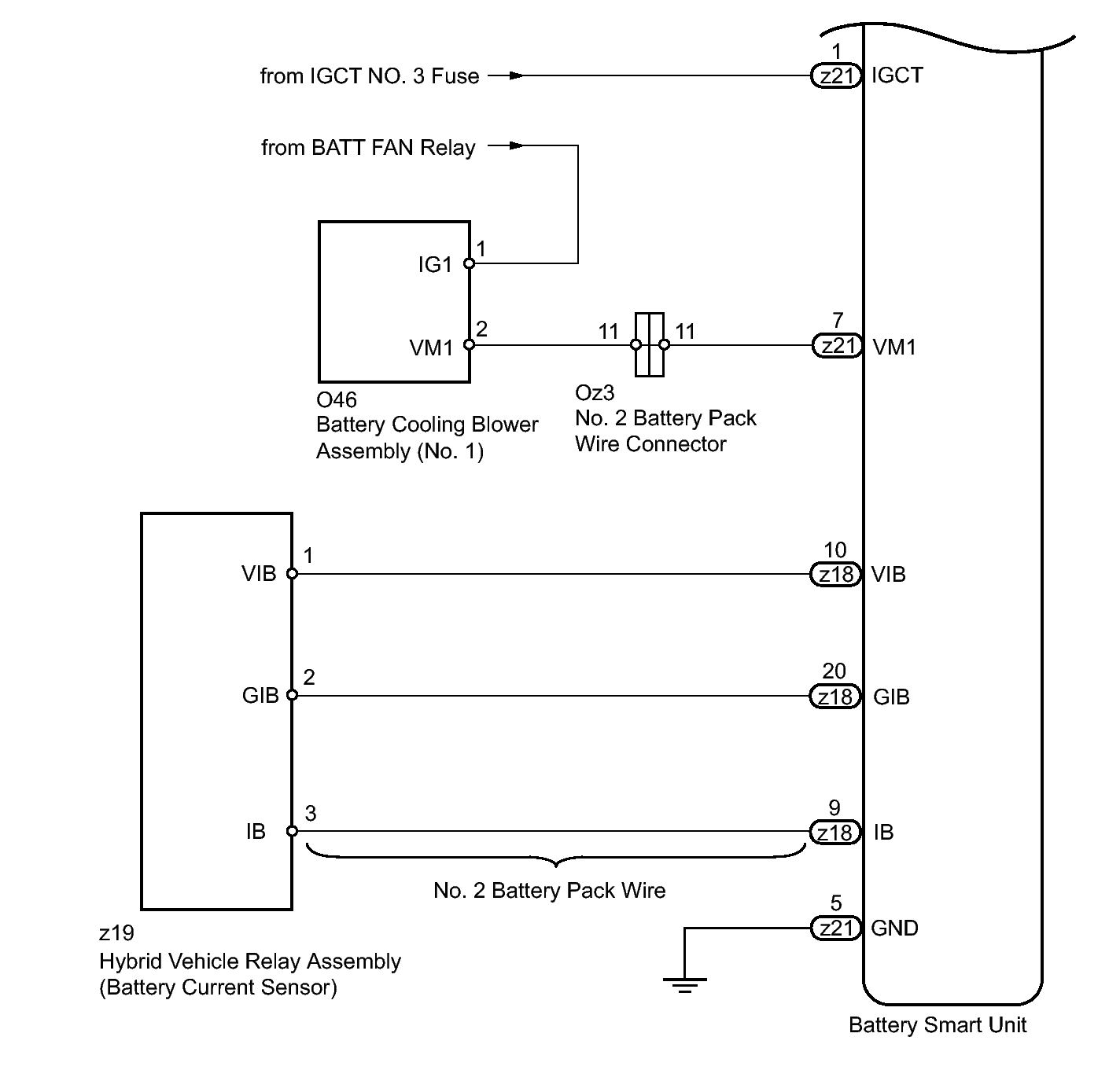

Fig 2: Identifying Battery Smart Unit Wiring Diagram
GTY296738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
