CLOCK (w/o Multi-information Display): Components: Illustration

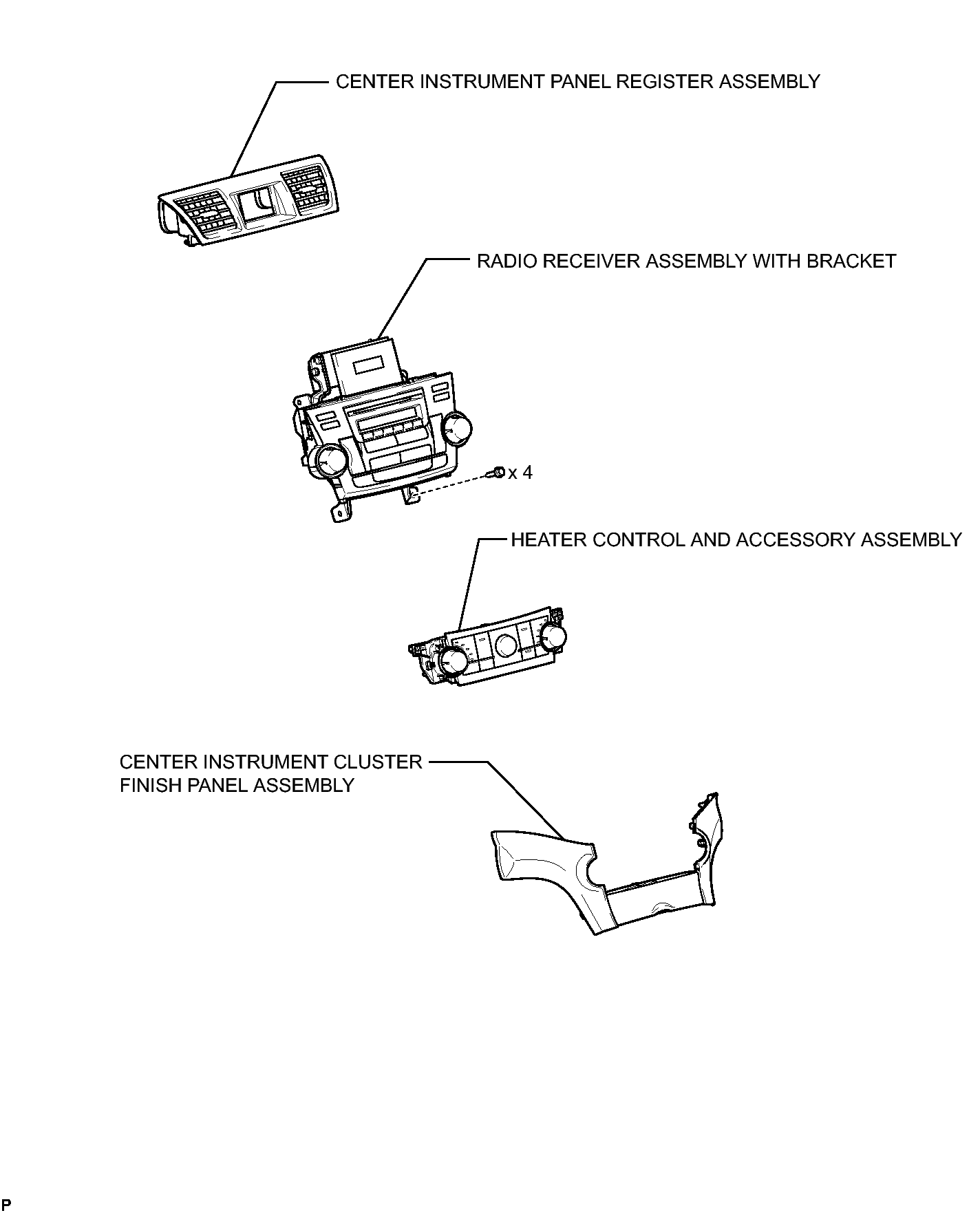

Fig 1: Identifying Clock (W/O Multi-Information Display) Replacement Components (1 Of 2)
GTY208107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

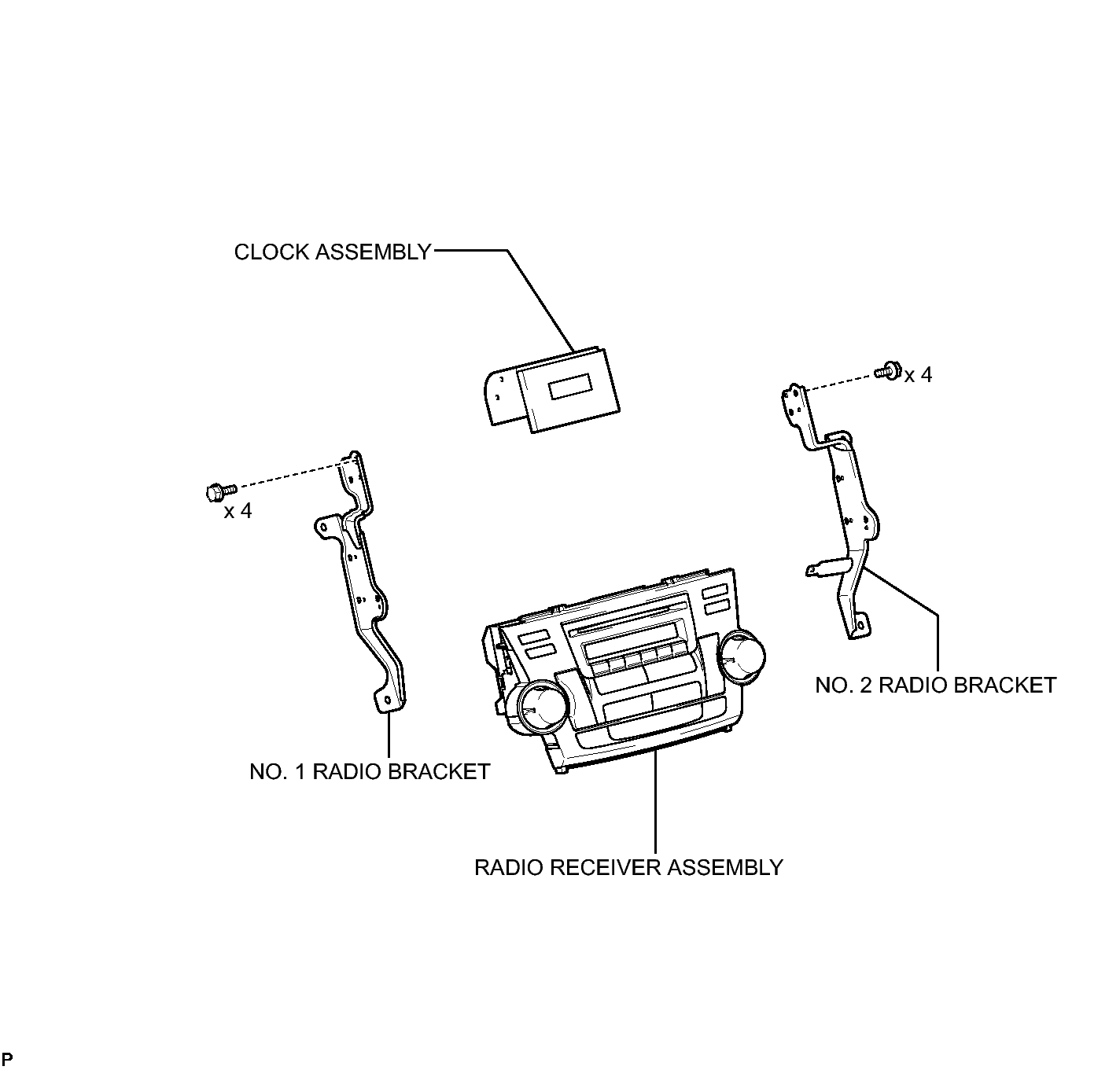

Fig 1: Identifying Clock (W/O Multi-Information Display) Replacement Components (2 Of 2)
GTY208108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
