Position of Parts in Engine Compartment: 2GR-FE

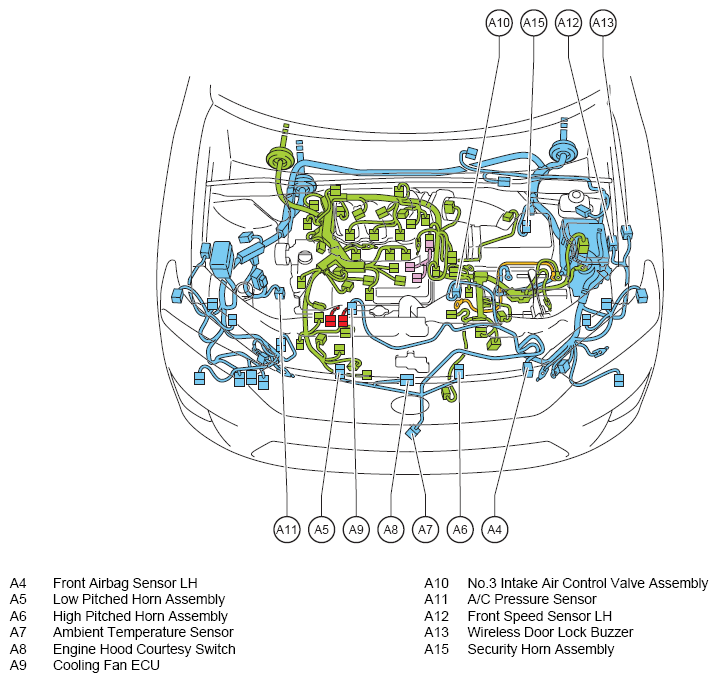

Fig 1: Engine Compartment Parts (2GR-FE; 1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

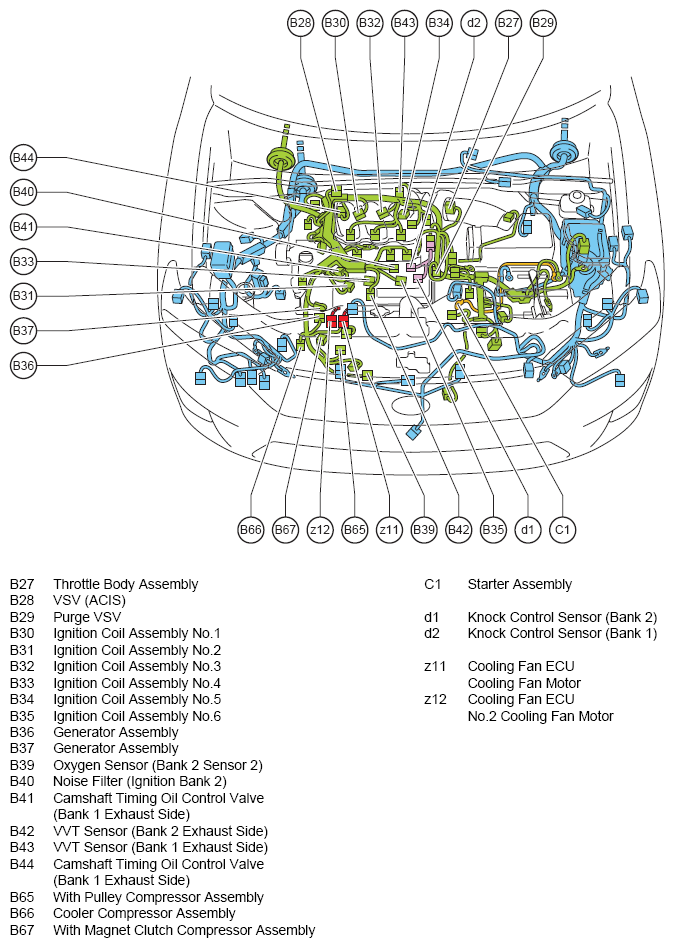

Fig 2: Engine Compartment Parts (2GR-FE; 2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment Parts (2GR-FE; 3 Of 4)

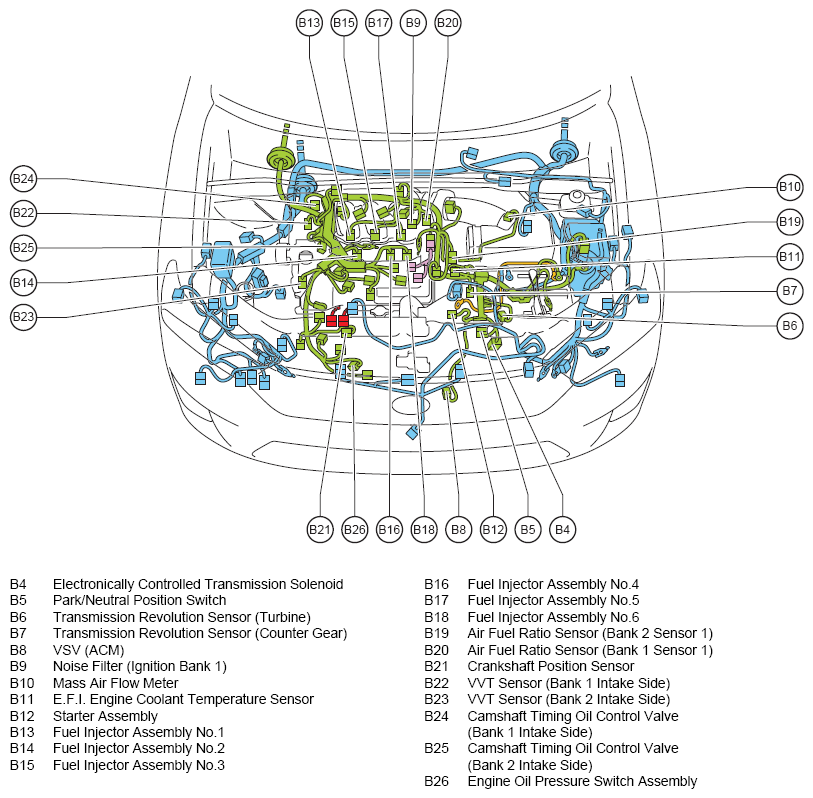

Fig 4: Engine Compartment Parts (2GR-FE; 4 Of 4)
