: Location of Ground Points: Notes

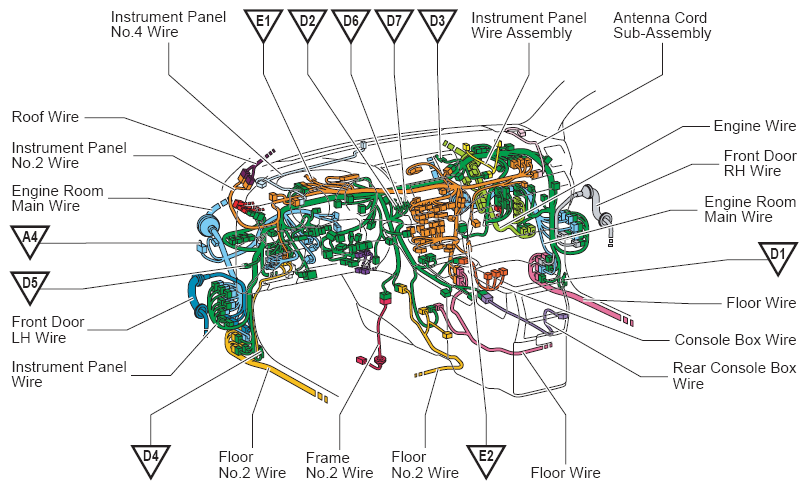

Fig 1: Locating Ground Points
G08849085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

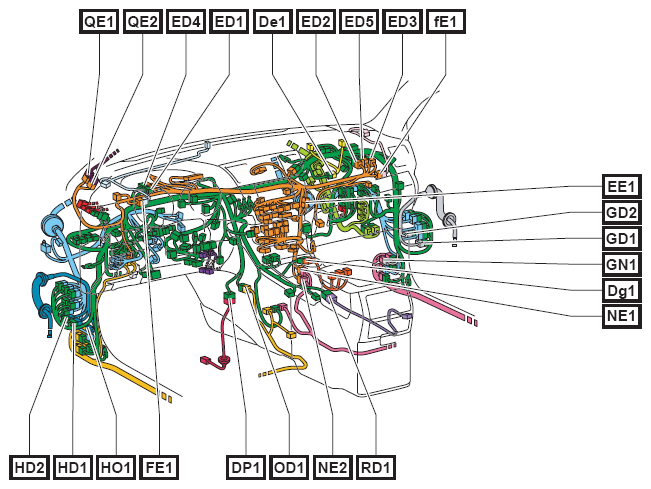

Fig 2: Locating Wiring Harnesses (1 Of 2)
G08849086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

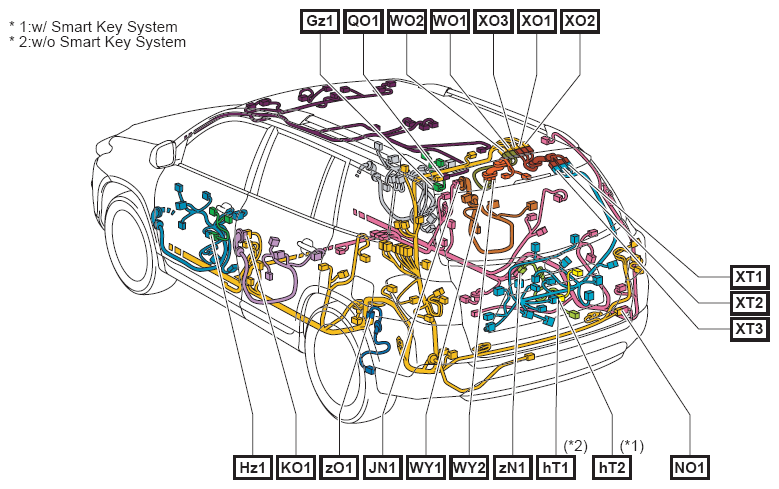

Fig 3: Locating Wiring Harnesses (2 Of 2)
G08849087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

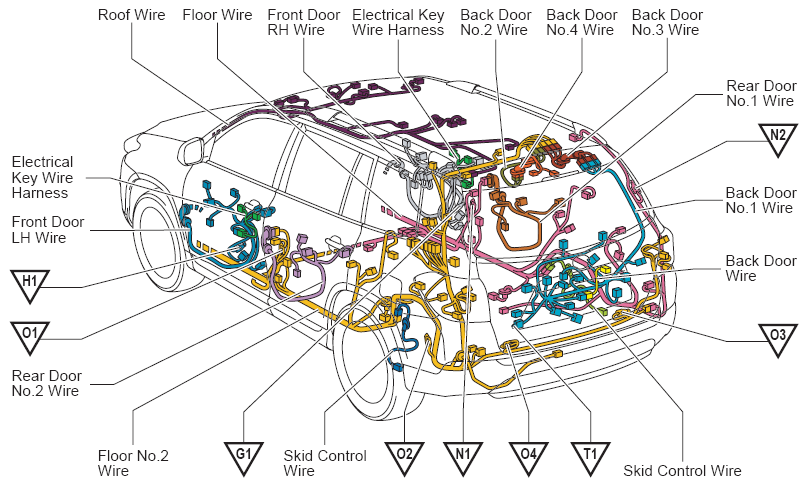

Fig 4: Locating Ground Points
G08849088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
