Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

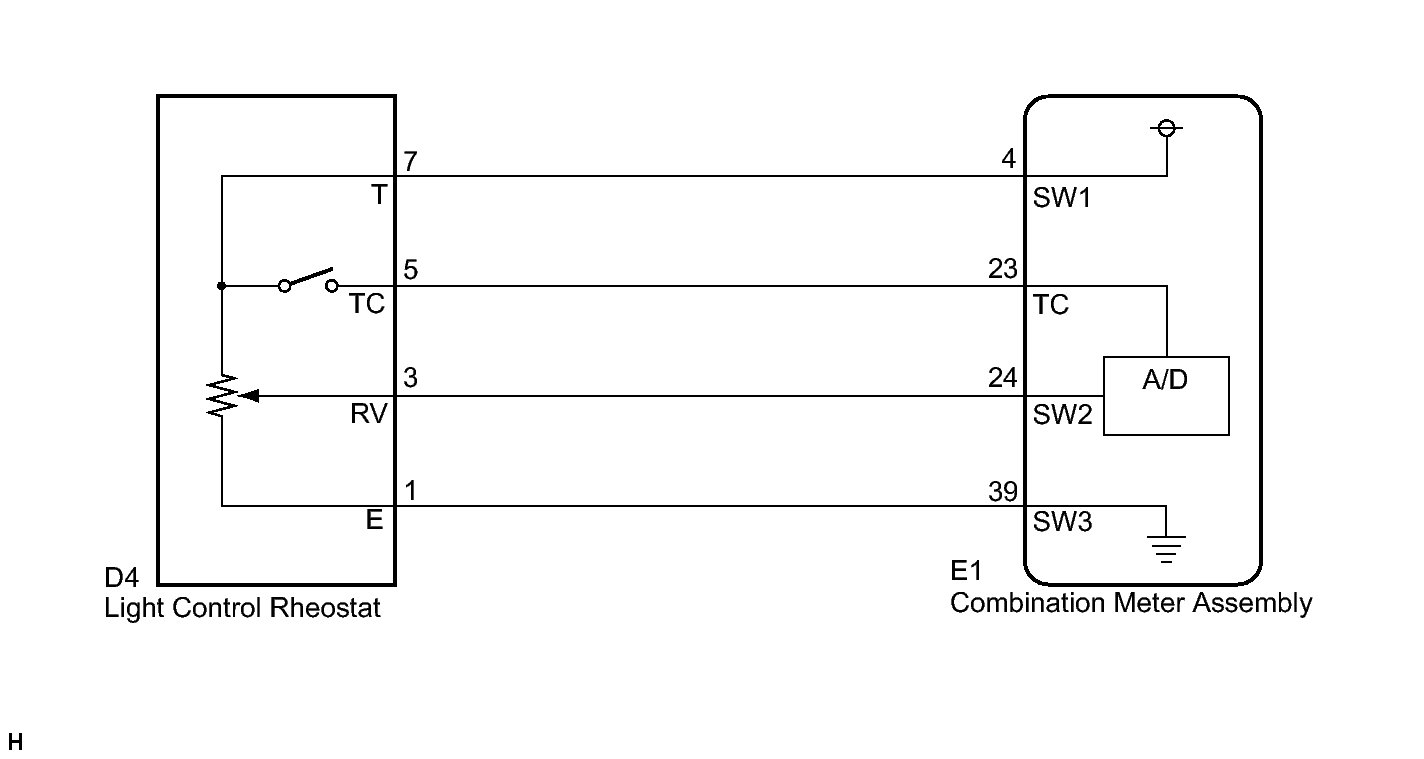

Fig 1: Light Control Rheostat Circuit Wiring Diagram

GTY207792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
