Fuel Receiver Gauge Malfunction: Wiring Diagram

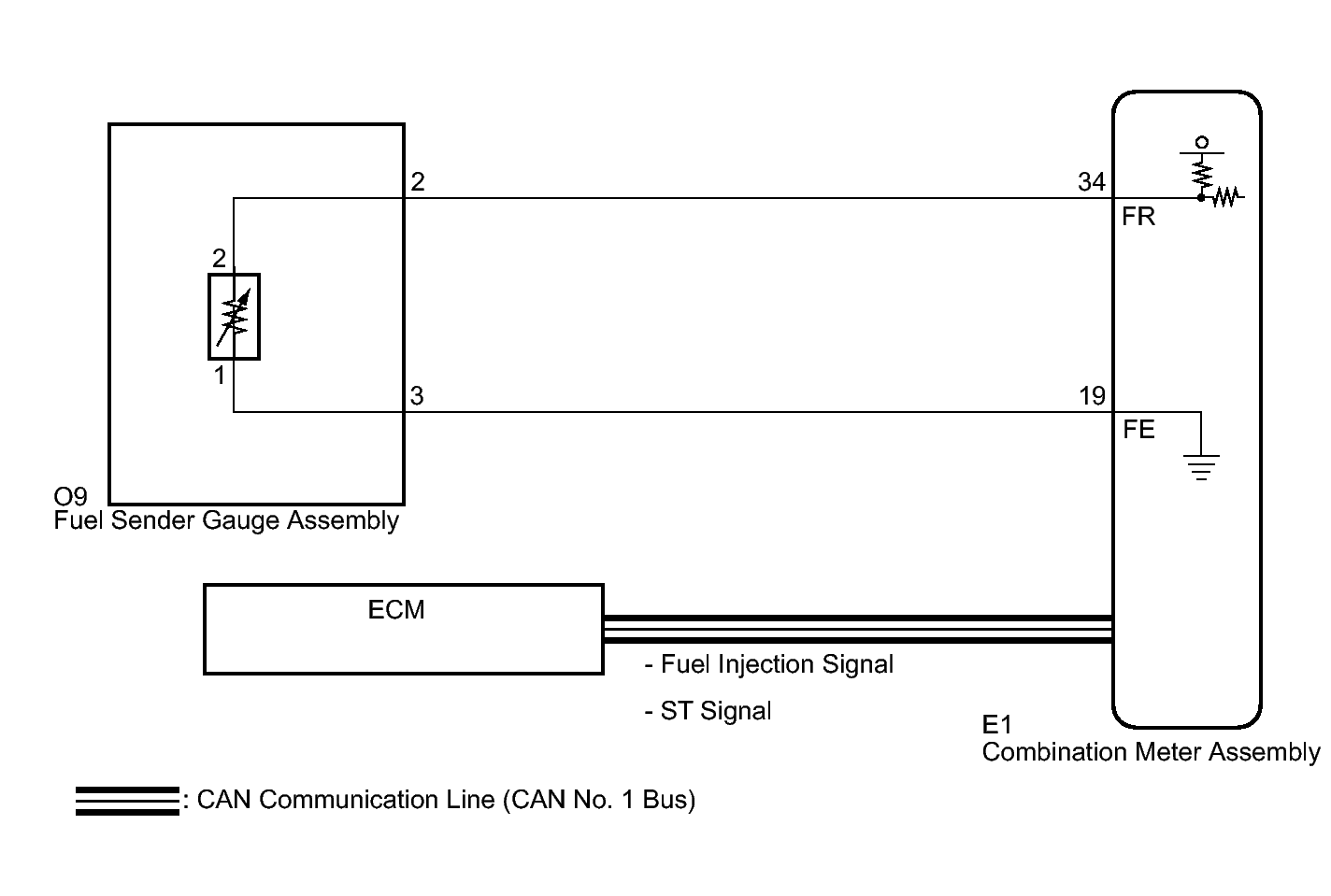

Fig 1: Fuel Sender Gauge Communication Circuit Wiring Diagram

GTY189692

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
