Entire Combination Meter does not Operate: Wiring Diagram

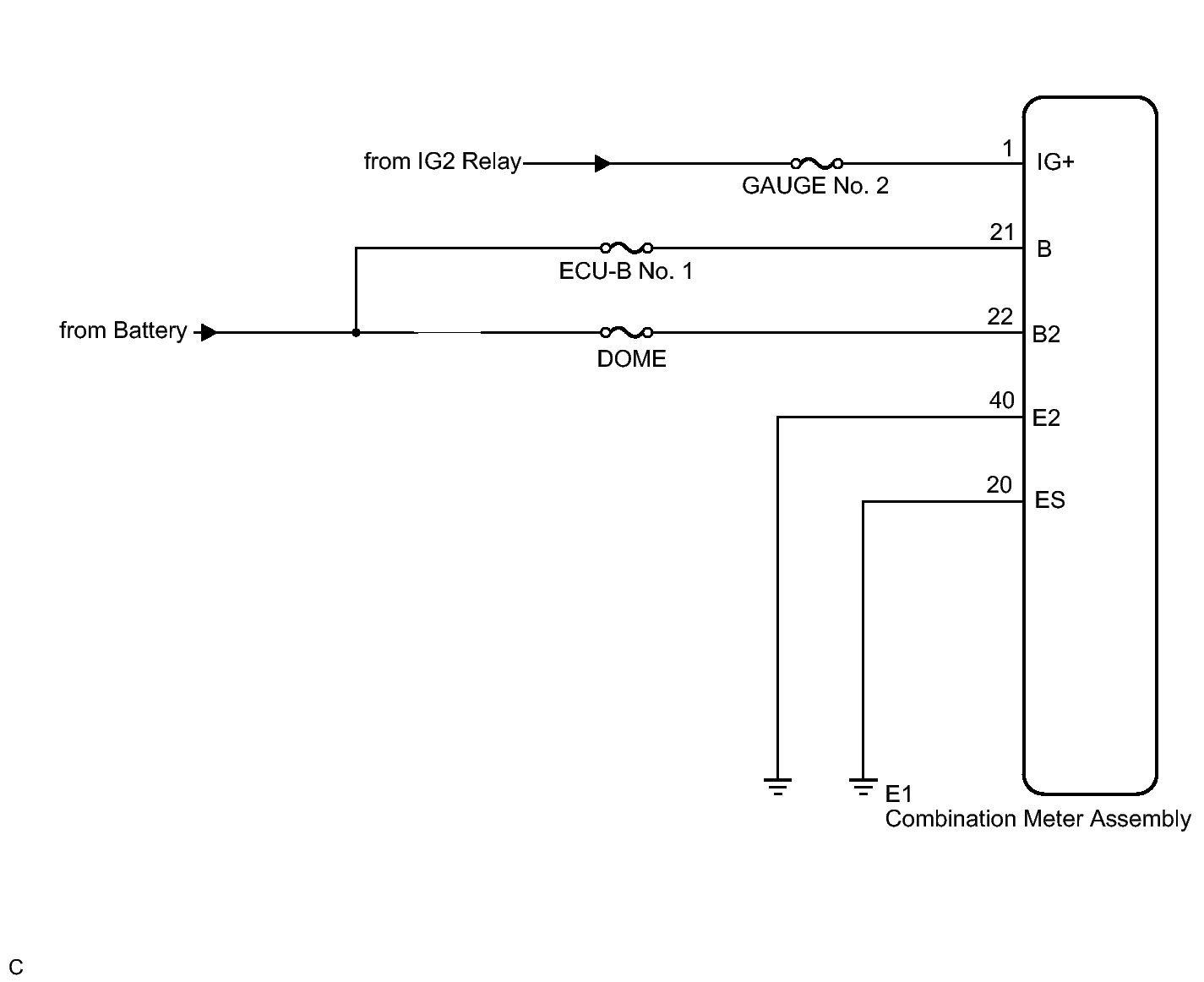

Fig 1: Combination Meter Power Source Circuit Wiring Diagram

GTY296789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
