Engine Coolant Temperature Receiver Gauge Malfunction: Wiring Diagram

  1. for 2GR-FE

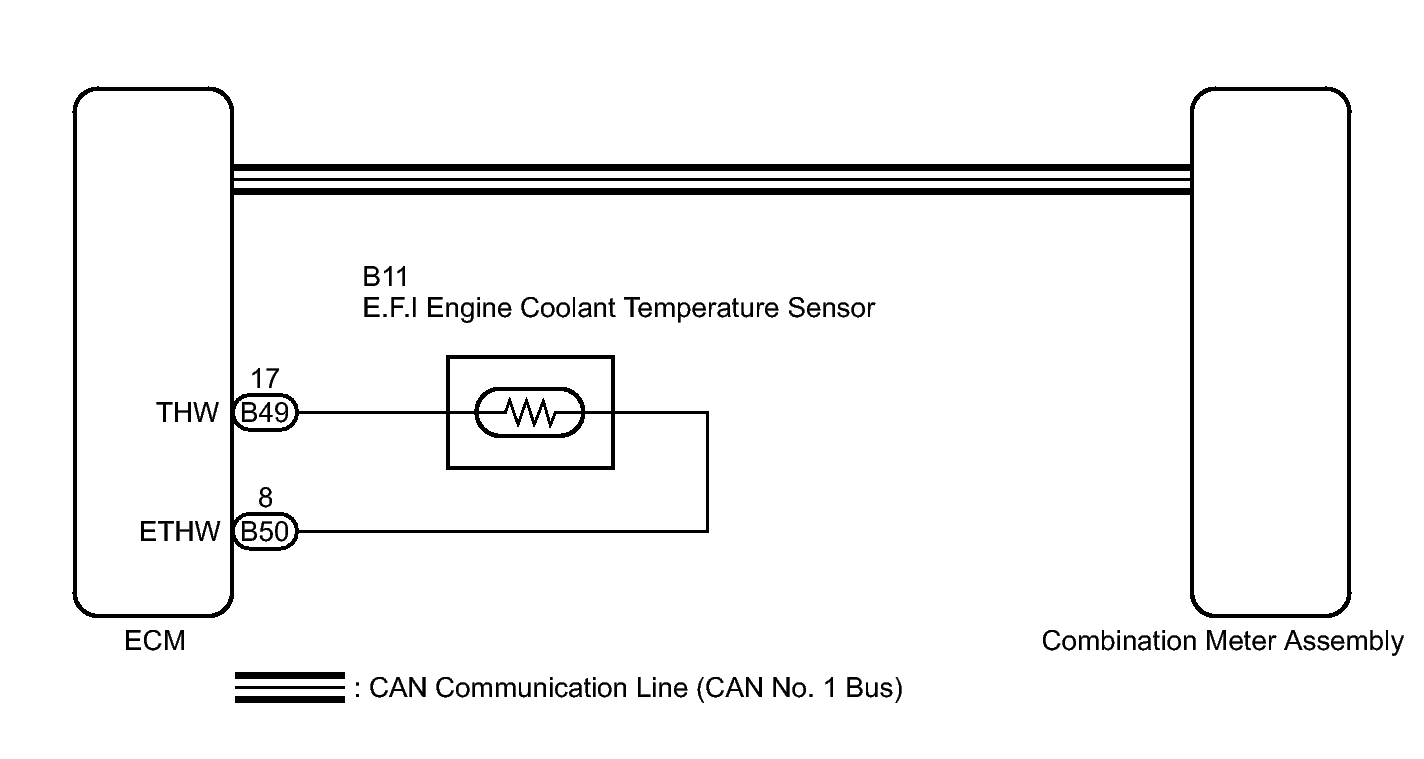

    Fig 1: Engine Coolant Temperature Sensor Communication Circuit Wiring Diagram (1 Of 2)
    GTY295533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 1AR-FE

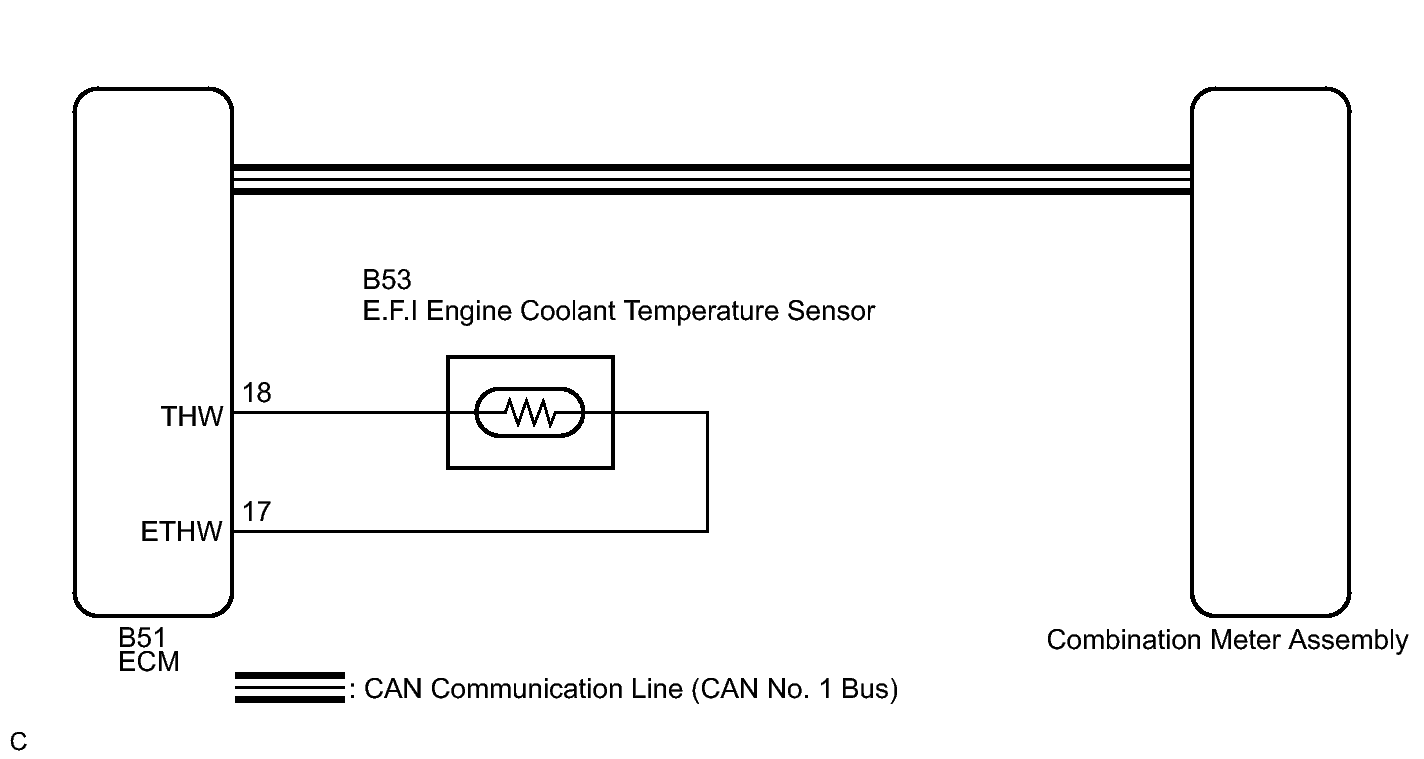

    Fig 2: Engine Coolant Temperature Sensor Communication Circuit Wiring Diagram (2 Of 2)
    GTY207475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
