DTC B1500: Fuel Sender Open Detected: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the tester on.
4. Enter following menus: Body / Combination Meter / Data List.
5. Check the values by referring to the table below.
   COMBINATION METER:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Fuel Input	Fuel input signal/Min.: 0, Max.: 127.5	Fuel gauge indicates (E): 7.5 (L) Fuel gauge indicates (1/2): 35.0 (L) Fuel gauge indicates (F): 62.9 (L)	-

   Result

   Result	Proceed to
   Fuel level data can be displayed on the Techstream and DTC B1500 is output.	A
   Fuel level data cannot be displayed on the Techstream.	B

B → See step   2

A → See step   5

1. Disconnect the E1 connector.

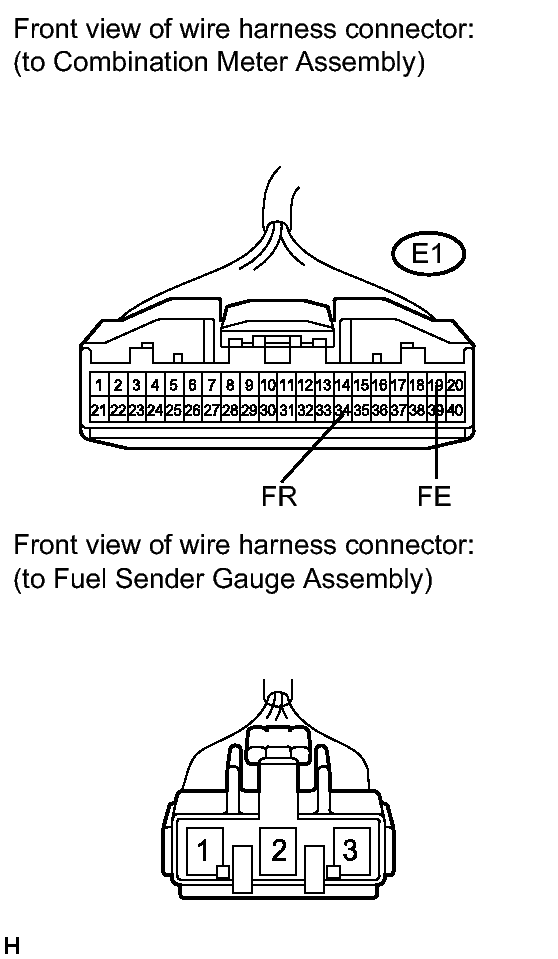

   Fig 1: Measuring Resistance Of Combination Meter Assembly With Connector End View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   E1-19 (FE) - E1-34 (FR)	Always	13.5 to 414.5 Ω

NG → See step   3

OK → See step   5

1. Disconnect the fuel sender gauge assembly connector.
   Fig 2: Checking Harness And Connector (Combination Meter Assembly - Fuel Sender Gauge Assembly)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   E1-34 (FR) - 2	Always	Below 1 Ω
   E1-34 (FR) - Body ground	Always	10 kΩ or higher
   E1-19 (FE) - 1	Always	Below 1 Ω
   E1-19 (FE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the fuel sender gauge assembly. Refer to REMOVAL for 2GR-FE. Refer to REMOVAL for 1AR-FE.
   Fig 3: Inspecting Fuel Sender Gauge Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the float moves smoothly between E and F.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	Float level is F (upper)	3.0 to 5.0 Ω
   1 - 2	Float level is between F (upper) and E (lower)	3.0 to 111.0 Ω (Gradually changes)
   1 - 2	Float level is E (lower)	109.0 to 111.0 Ω

   Result

   Result	Proceed to
   OK	A
   NG (for 2GR-FE)	B
   NG (for 1AR-FE)	C

B → See step   6

C → See step   7

A → See step   5
