Clock Display Circuit: Procedure

1. Check if CAN communication DTC is output. Refer to DIAGNOSIS SYSTEM .

   Result

   Result	Proceed to
   CAN communication DTC is not output.	A
   CAN communication DTC is output.	B

B → See step   4

A: Go to next step

1. Disconnect the E11 and E1 connectors.

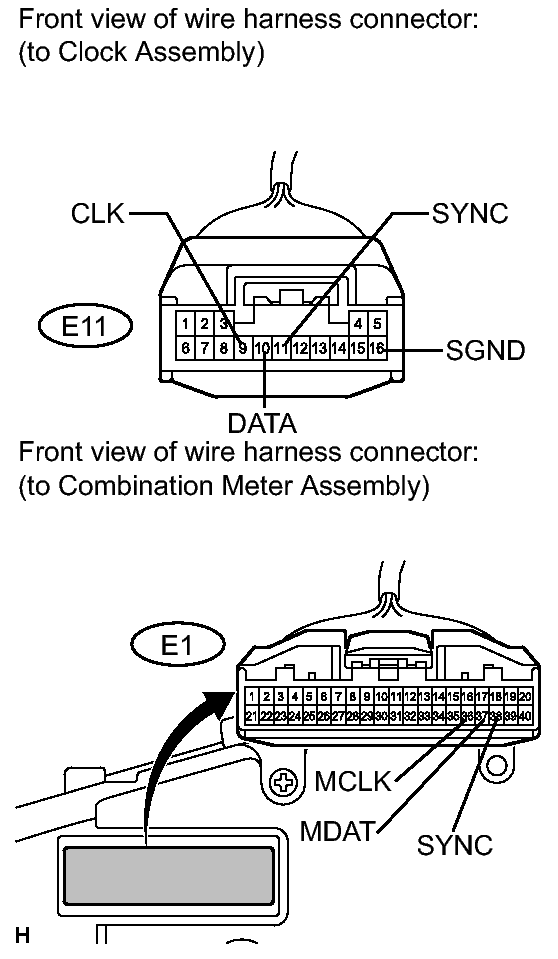

   Fig 1: Checking Harness And Connector (Clock Assembly - Combination Meter)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   E11-9 (CLK) - E1-36 (MCLK)	Always	Below 1 Ω
   E11-10 (DATA) - E1-37 (MDAT)	Always	Below 1 Ω
   E11-11 (SYNC) - E1-38 (SYNC)	Always	Below 1 Ω
   E11-9 (CLK) - Body ground	Always	10 kΩ or higher
   E11-10 (DATA) - Body ground	Always	10 kΩ or higher
   E11-11 (SYNC) - Body ground	Always	10 kΩ or higher
   E11-16 (SGND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the E1 connector.
   Fig 2: Checking Clock Assembly With Connector End View

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   E11-9 (CLK) - Body ground	Ignition switch on (IG)	Pulse generation
   E11-10 (DATA) - Body ground	Ignition switch on (IG)	Pulse generation
   E11-11 (SYNC) - Body ground	Ignition switch on (IG)	Pulse generation

NG → See step   5

OK → See step   6
