Brake Actuator: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to to INITIALIZATION
REMOVE V-BANK COVER SUB-ASSEMBLY (for 2GR-FE) . Refer to REMOVAL - Step 25
REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (for 1AR-FE) . Refer to REMOVAL - Step 25
REMOVE BRAKE ACTUATOR WITH BRACKET
1. Separate the relay box.

  Fig 1: Identifying Relay Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

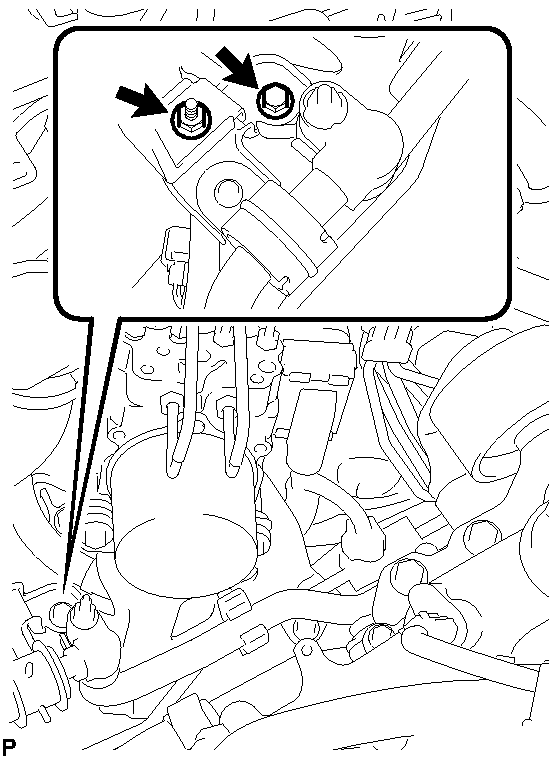

2. Remove the nut, bolt and separate the suction hose bracket from the brake actuator bracket assembly.

  Fig 2: Identifying Suction Hose Bracket Nut & Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

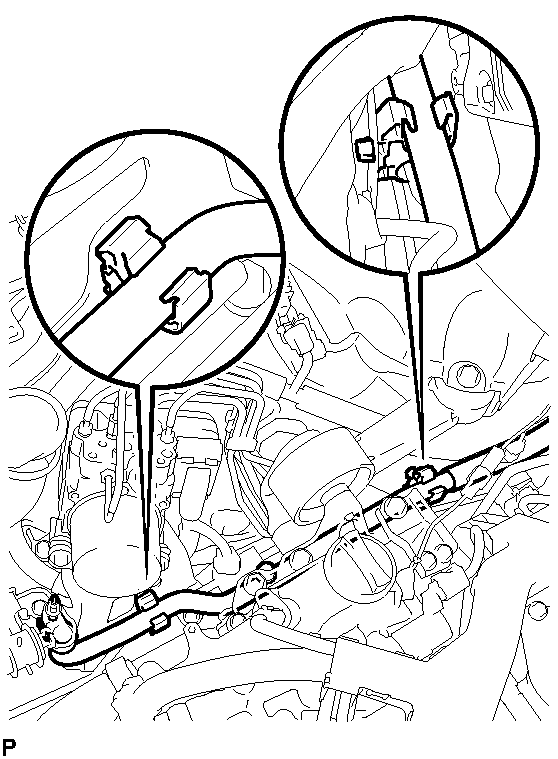

3. Separate the No. 1 cooler refrigerant suction tube from the 2 clamps, and then place the No. 1 cooler refrigerant suction tube next to the clamps.

  Fig 3: Identifying No. 1 Cooler Refrigerant Suction Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Release the lock lever and disconnect the brake actuator connector.

  Fig 4: Disconnecting Brake Actuator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to allow brake fluid to enter the removed connector.

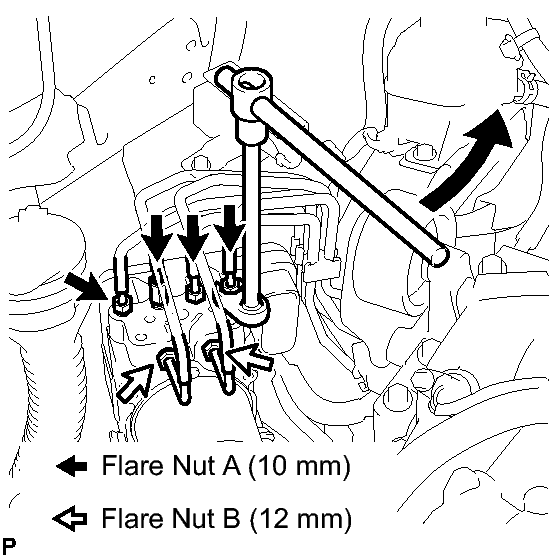

5. Using a union nut wrench (10 mm and 12 mm), disconnect the 6 brake lines from the brake actuator with bracket.

  Fig 5: Disconnecting Brake Lines From Brake Actuator With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

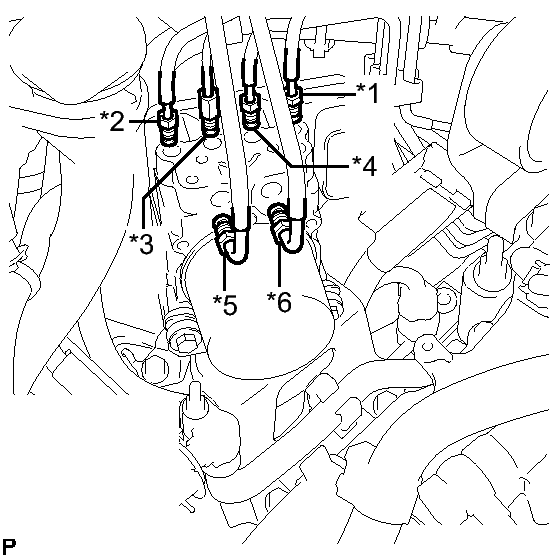

6. Use tags or make a memo to identify the places to reconnect.

  Fig 6: Identifying Brake Lines Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - *1: To front wheel cylinder RH
  - *2: To front wheel cylinder LH
  - *3: To rear wheel cylinder RH
  - *4: To rear wheel cylinder LH
  - *5: From 1st of master cylinder
  - *6: From 2nd of master cylinder

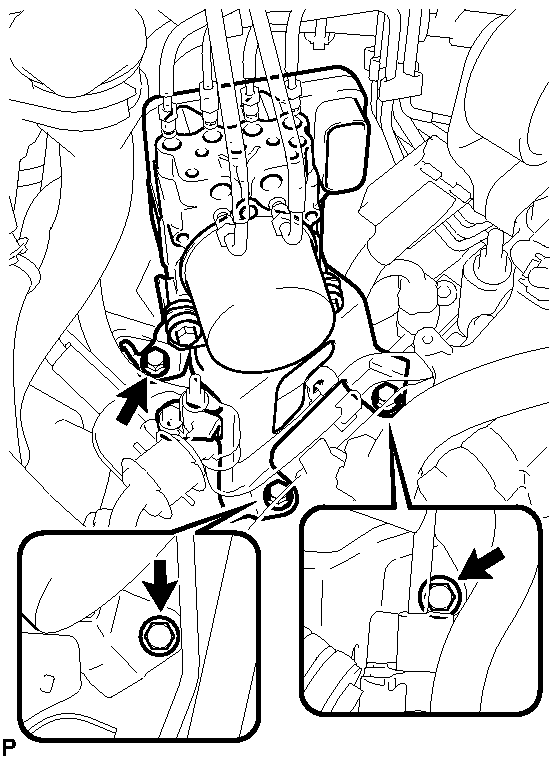

7. Remove the 3 bolts and brake actuator with bracket from the body.

  Fig 7: Identifying Brake Actuator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the brake lines or wire harness.
REMOVE BRAKE ACTUATOR
1. Remove the piping clamp.

  Fig 8: Identifying Brake Actuator Piping Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts and the brake actuator from the brake actuator bracket assembly.

  Fig 9: Identifying Brake Actuator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
