Roof Drip Side Finish Moulding: Components: Illustration

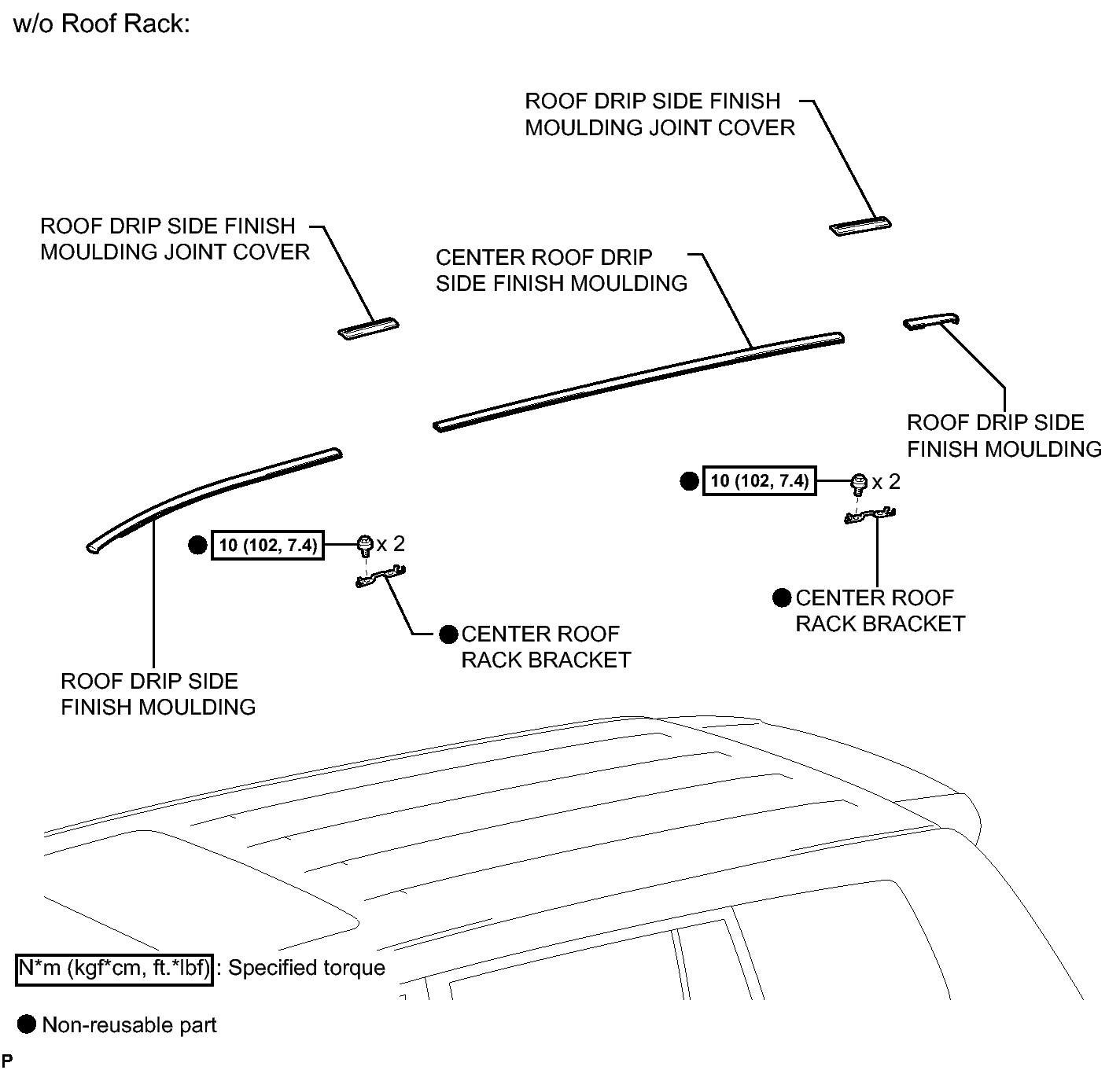

Fig 1: Identifying Roof Drip Side Finish Moulding Replacement Components With Torque Specifications (1 Of 2)
GTY199061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

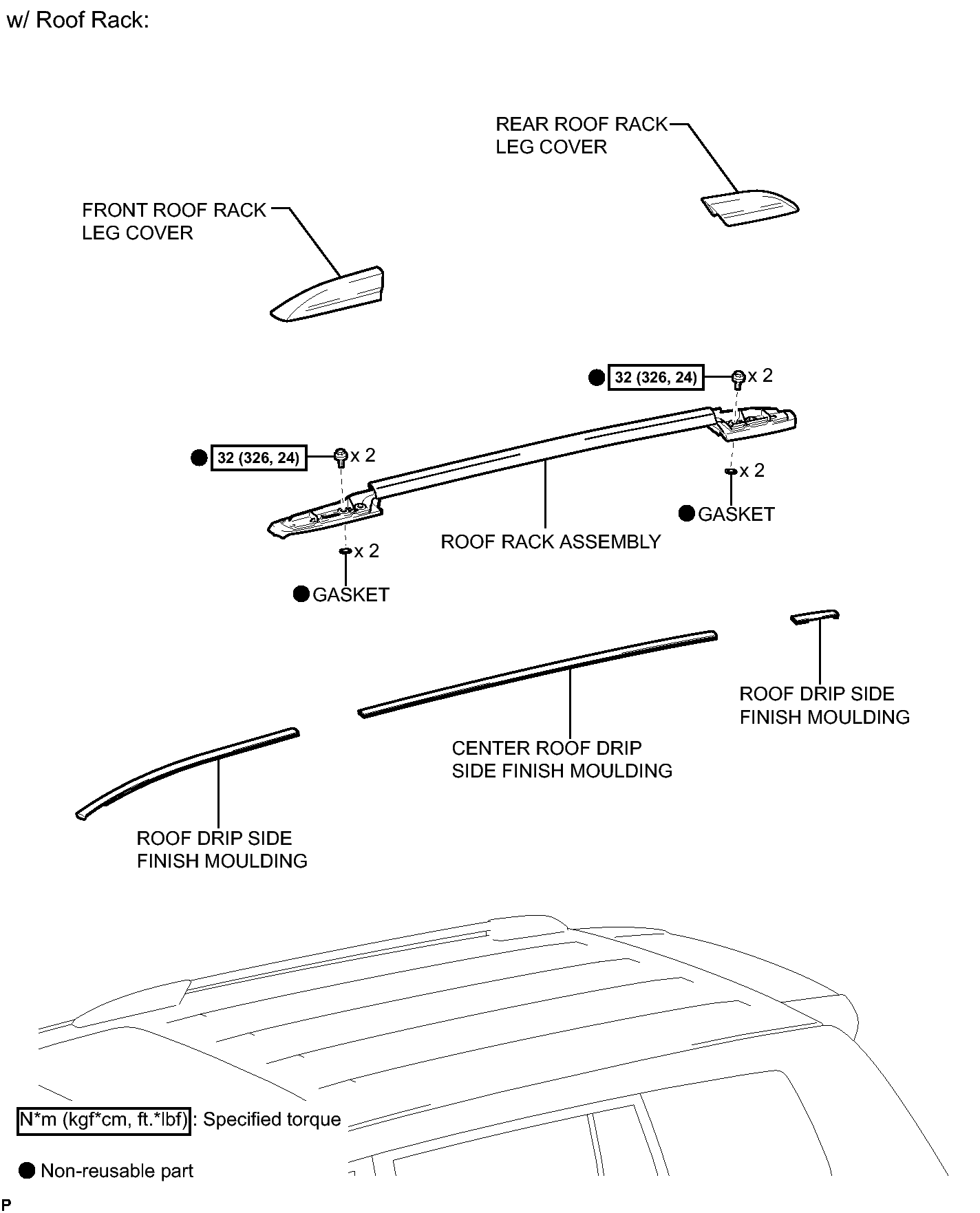

Fig 1: Identifying Roof Drip Side Finish Moulding Replacement Components With Torque Specifications (2 Of 2)
GTY199586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
