Rear Spoiler: Components: Illustration

Fig 1: Identifying Rear Spoiler Replacement Components With Torque Specifications (1 Of 5)
GTY199283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

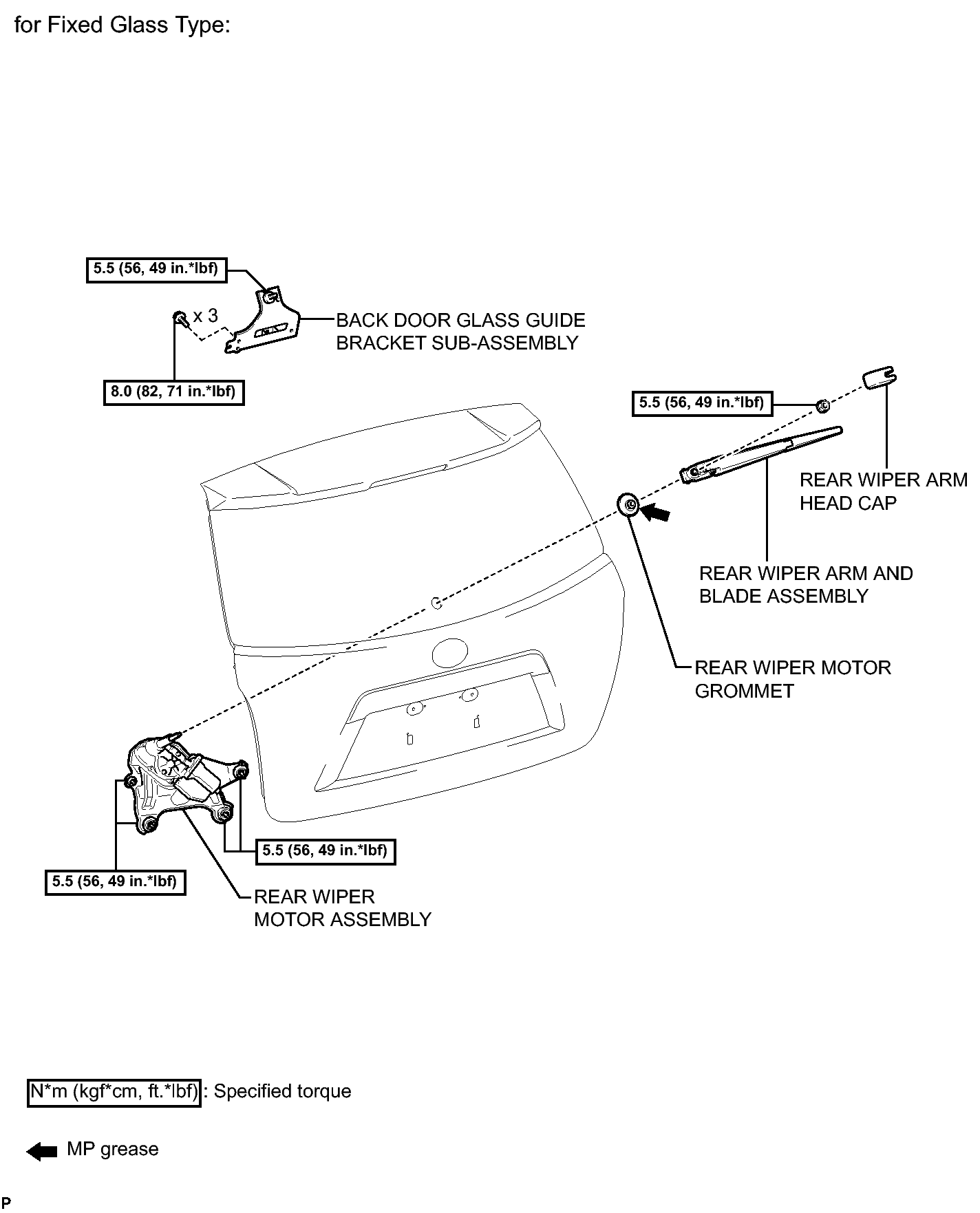

Fig 1: Identifying Rear Spoiler Replacement Components With Torque Specifications (2 Of 5)
GTY307979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Wiper Motor Replacement Components With Torque Specifications (2 Of 3)
GTY299778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

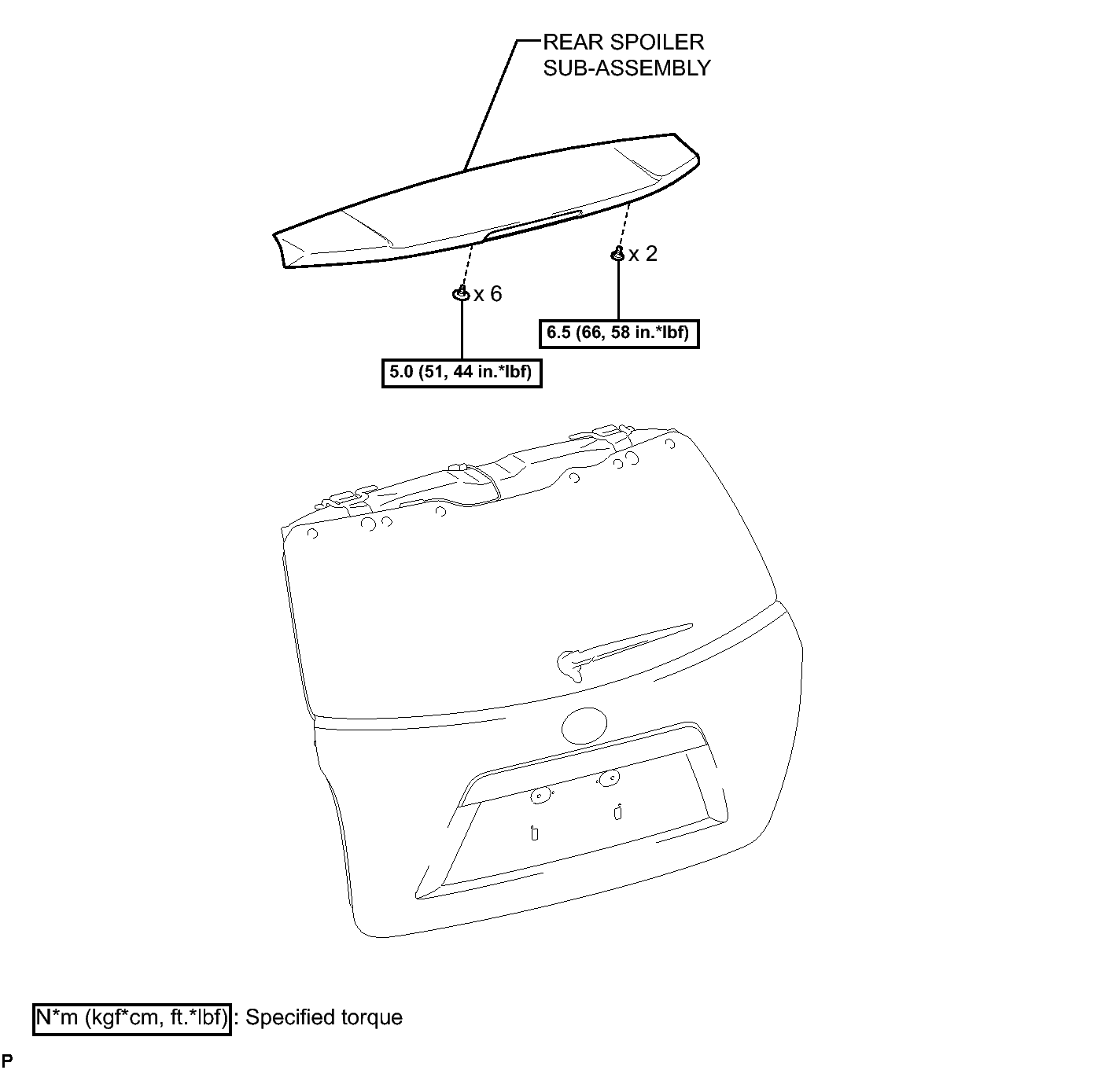

Fig 1: Identifying Rear Spoiler Replacement Components With Torque Specifications (4 Of 5)
GTY299434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

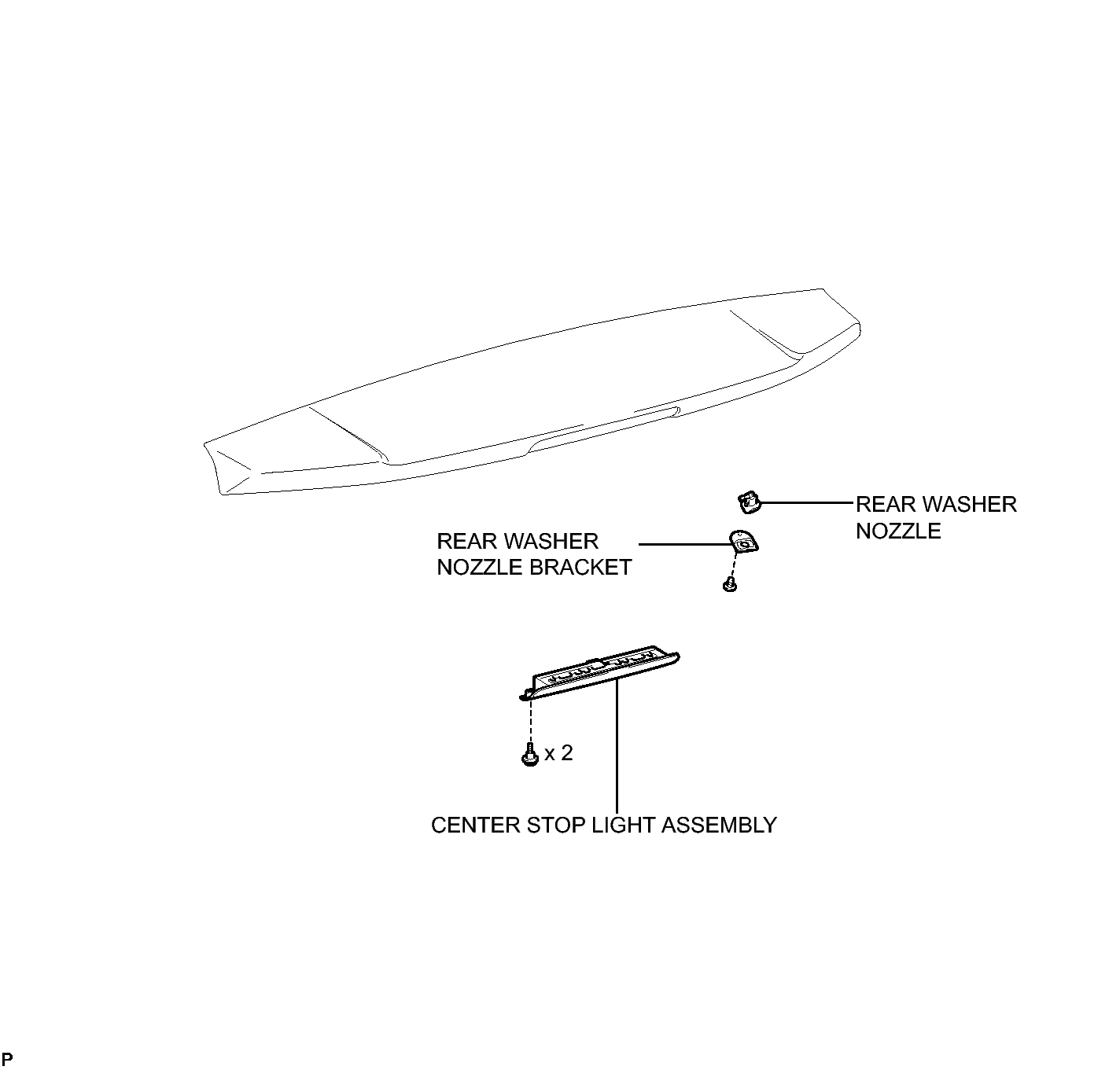

Fig 1: Identifying Rear Spoiler Replacement Components (5 Of 5)
GTY296774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
