Rear Bumper: Components: Illustration

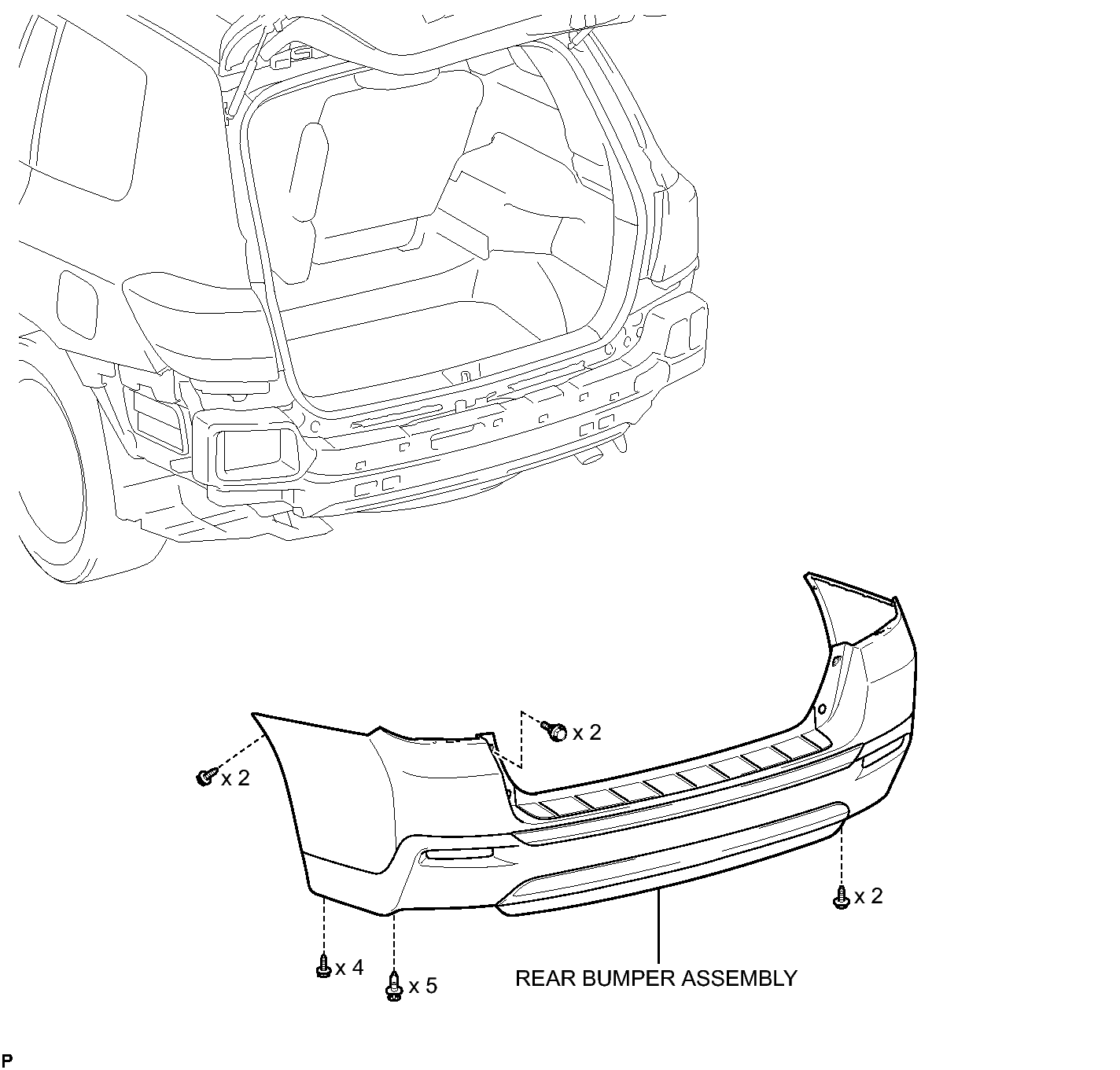

Fig 1: Identifying Rear Bumper Replacement Components (1 Of 3)
GTY299775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

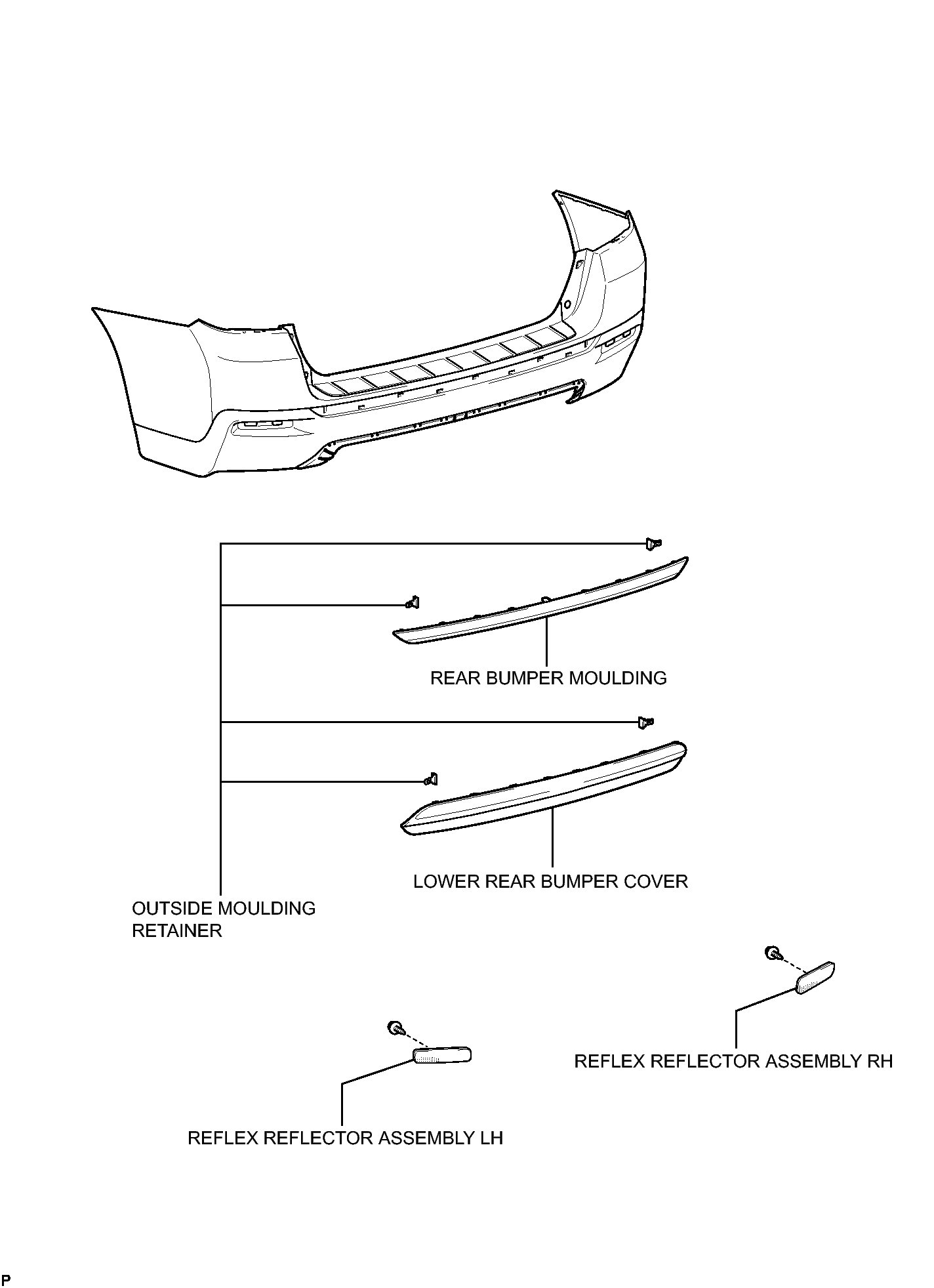

Fig 1: Identifying Rear Bumper Replacement Components (2 Of 3)
GTY303485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

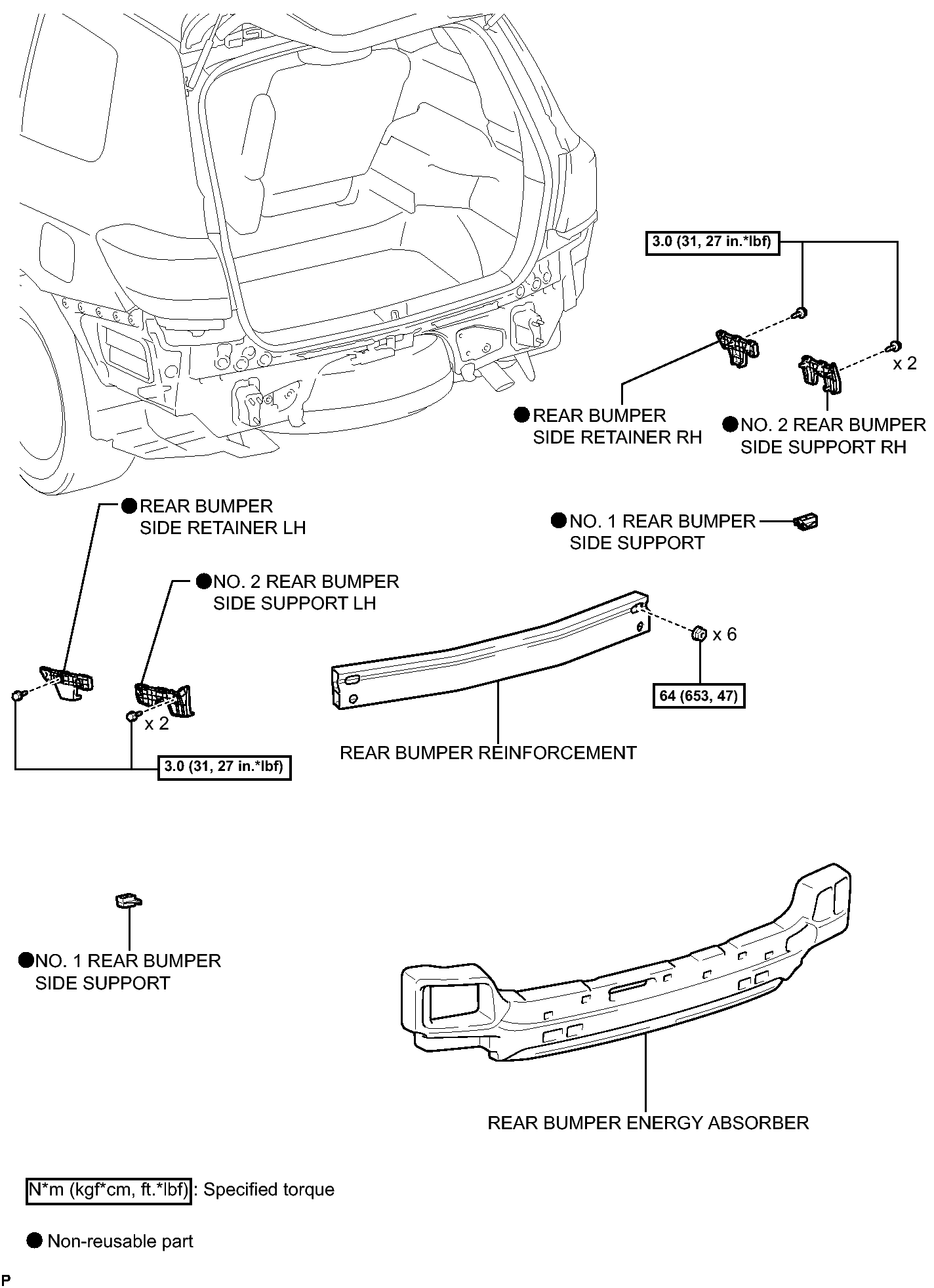

Fig 1: Identifying Rear Bumper Replacement Components With Torque Specifications (3 Of 3)
GTY306120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
