Front Bumper: Components: Illustration

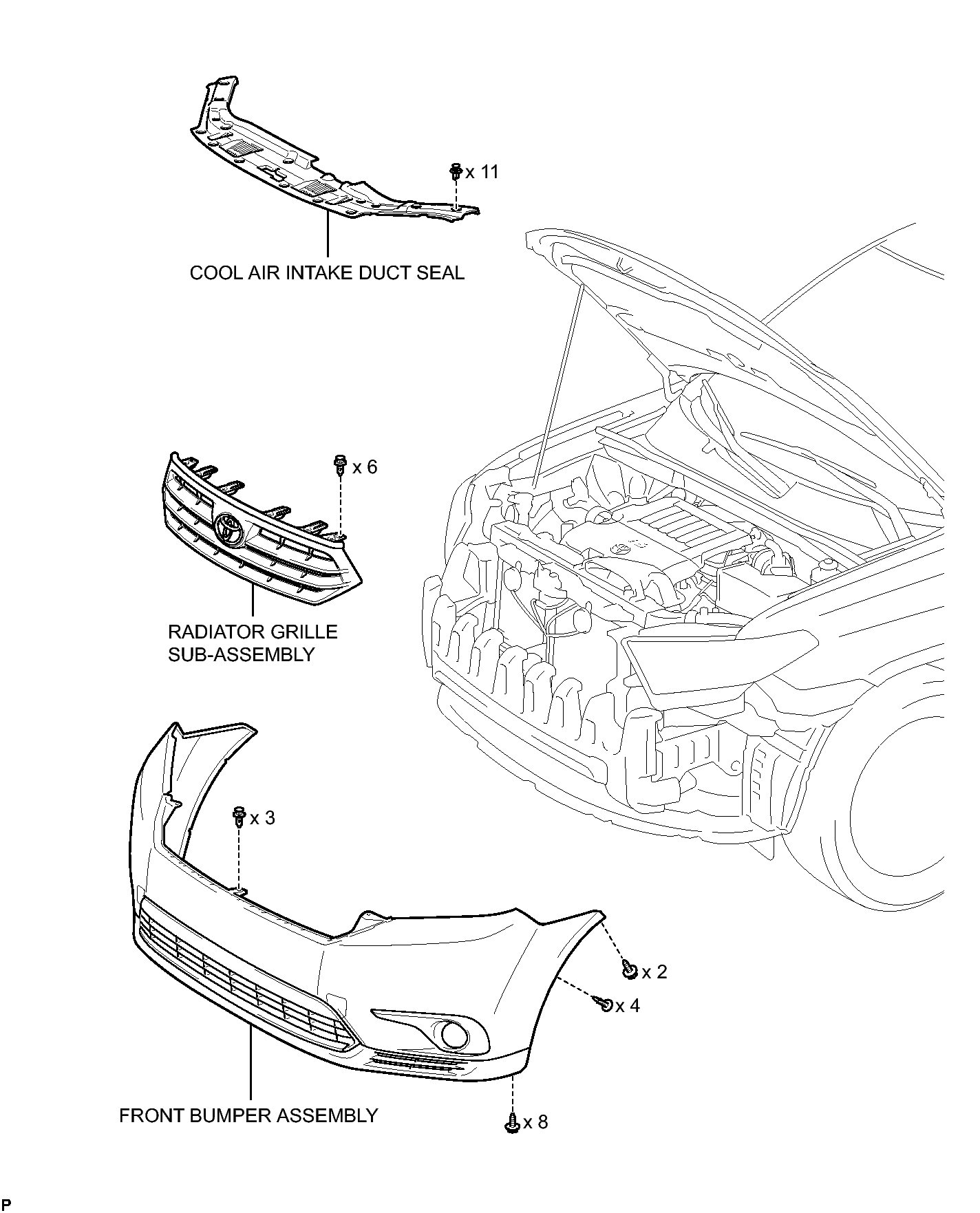

Fig 1: Identifying Front Bumper Replacement Components (1 Of 3)
GTY298845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

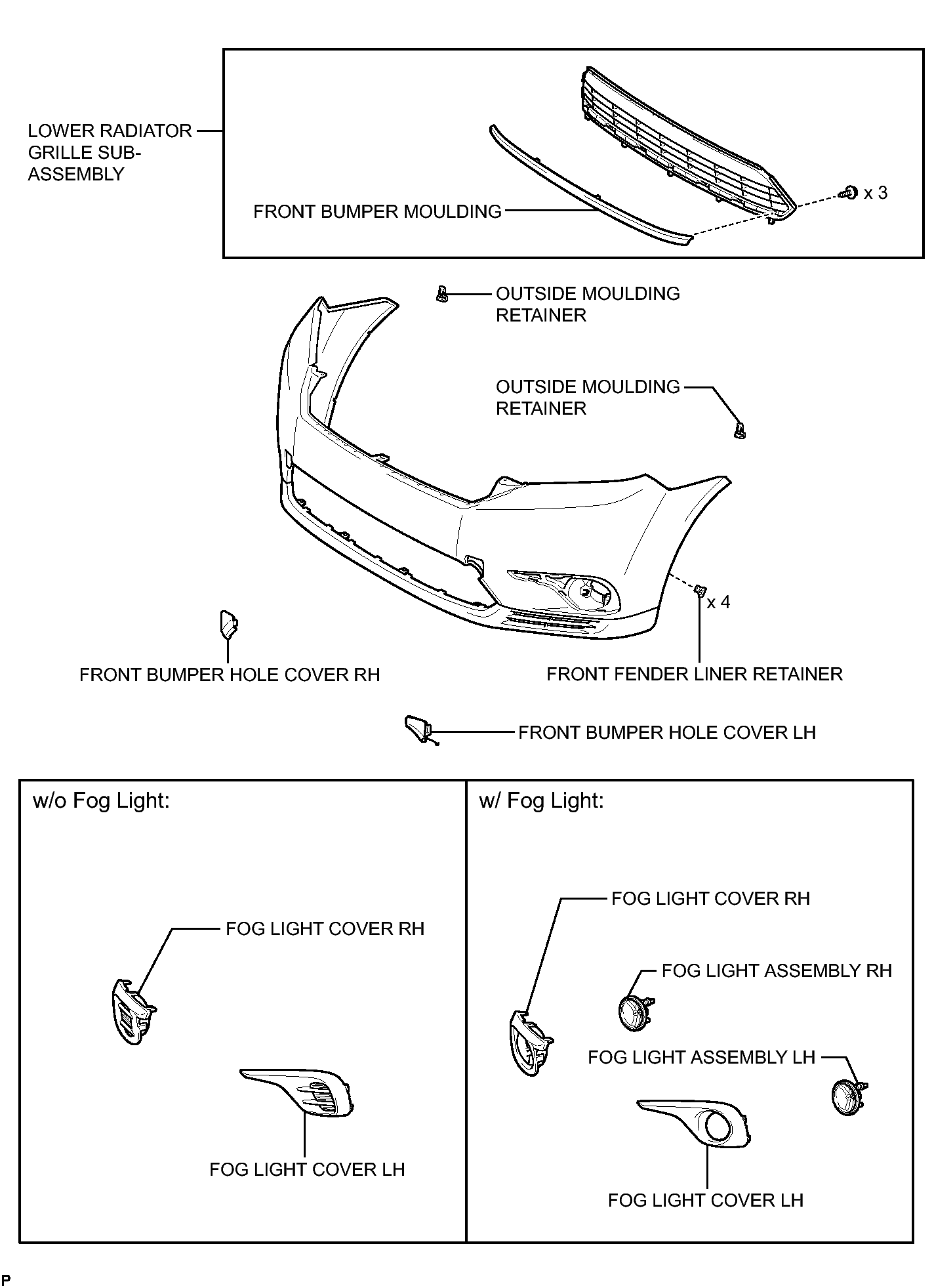

Fig 1: Identifying Front Bumper Replacement Components (2 Of 3)
GTY303898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

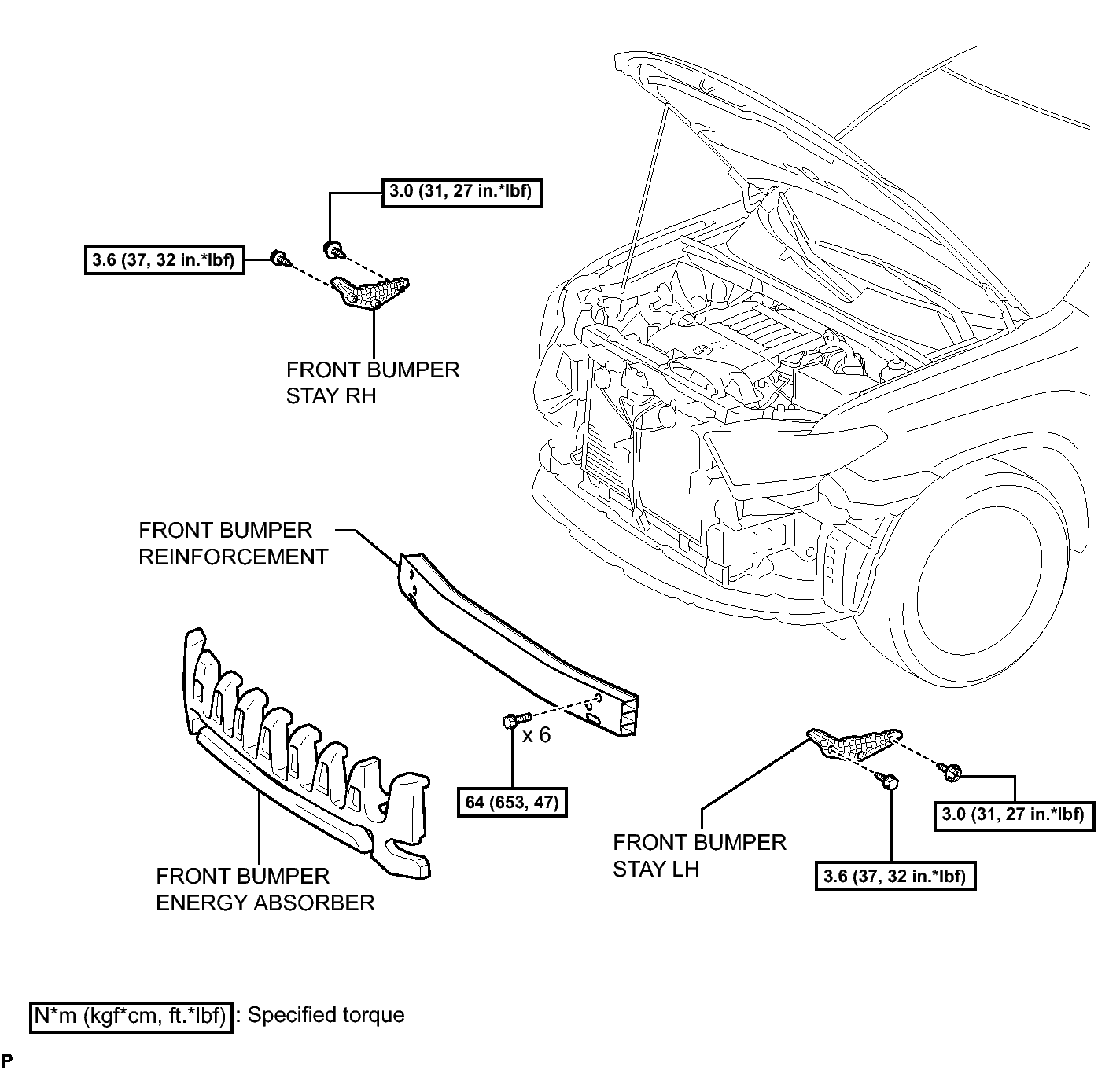

Fig 1: Identifying Front Bumper Replacement Components (3 Of 3)
GTY333314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
