FENDER LINER (for Rear Side): Components: Illustration

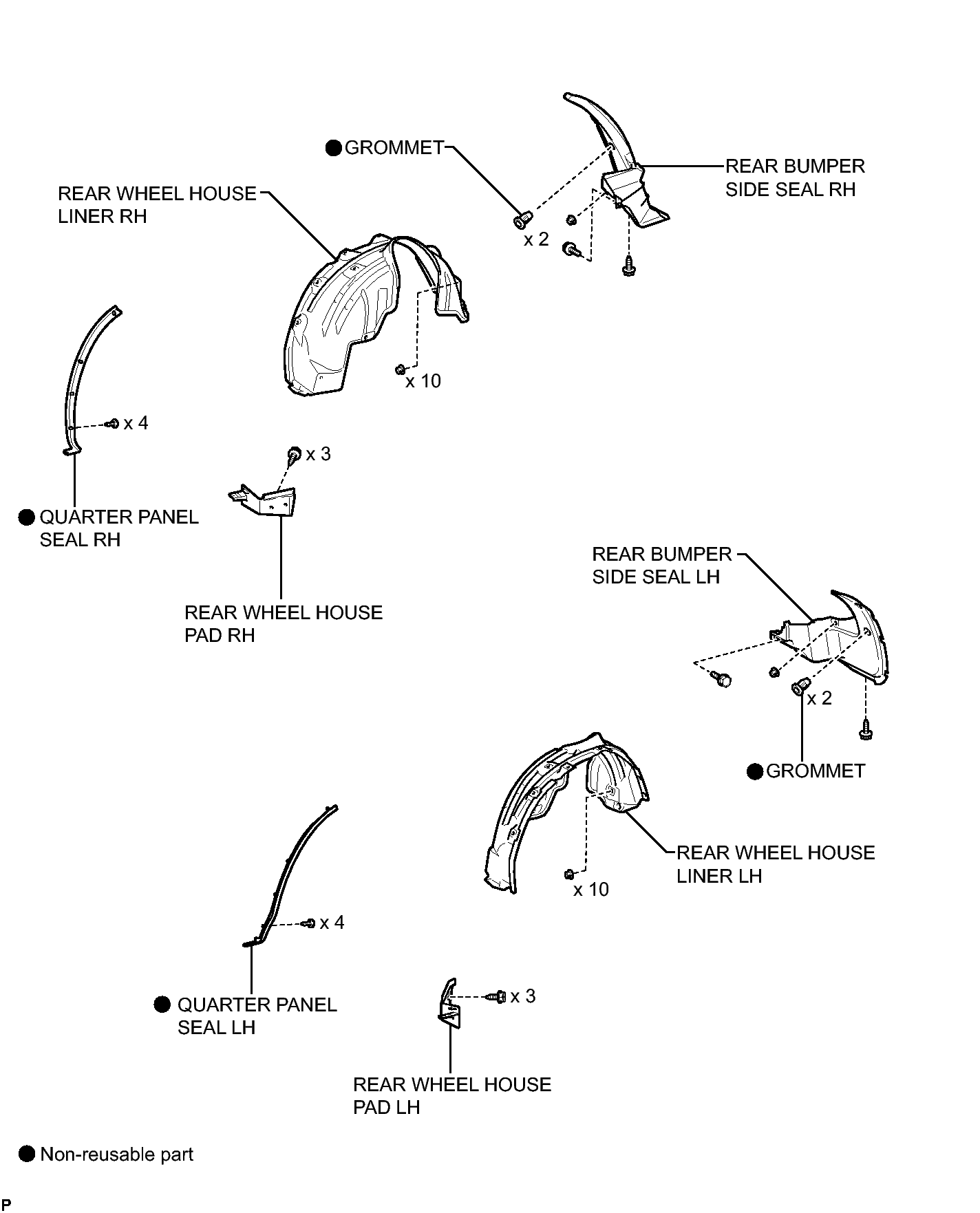

Fig 1: Identifying Fender Liner Replacement Components (For Rear Side)

GTY172884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
