Home >> Toyota >> 2012 >> Highlander Limited, AWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Exterior Trim (Service Information) (Except Hybrid) >> FENDER LINER (for Front Side) >> Components >> Illustration

FENDER LINER (for Front Side): Components: Illustration

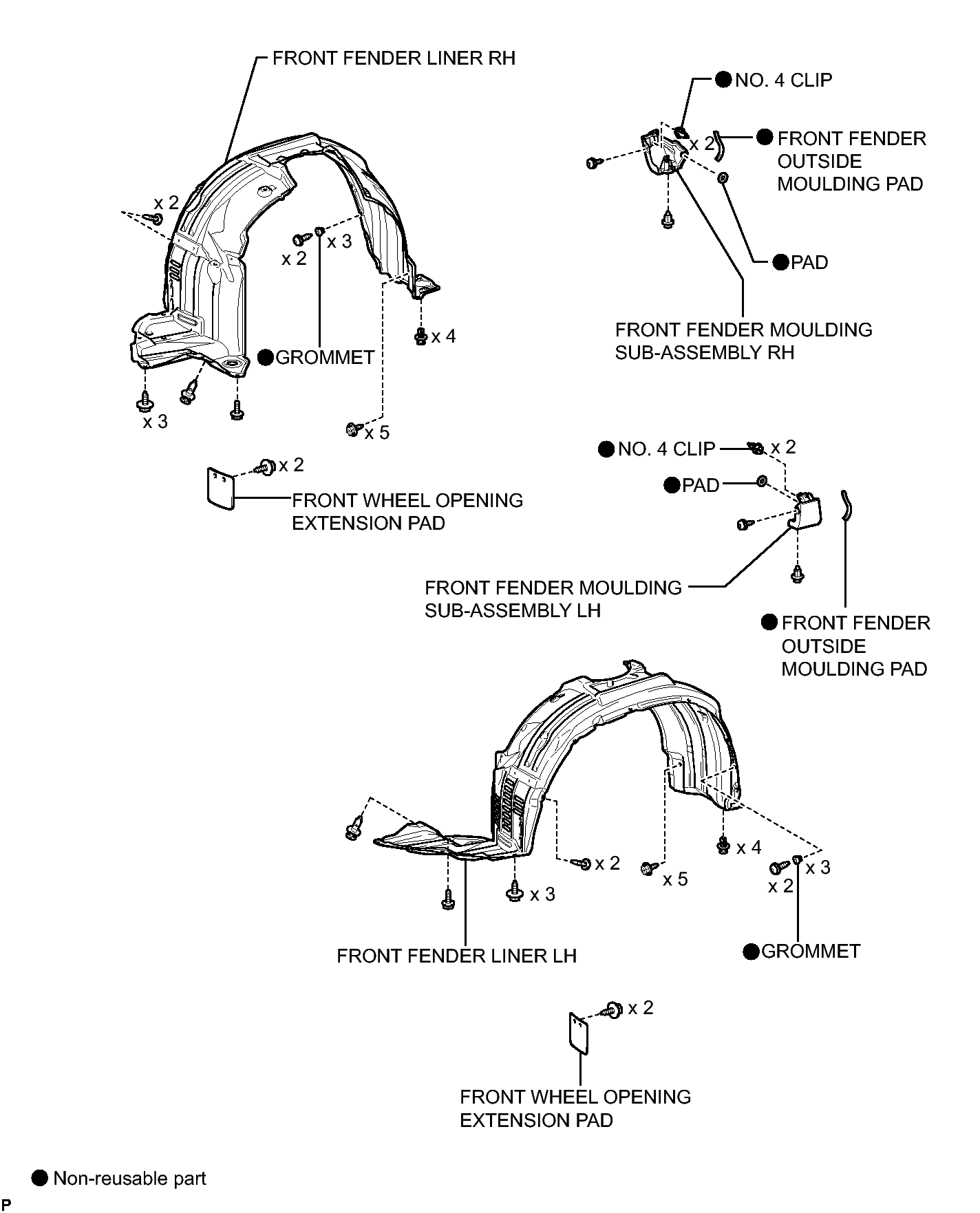

Fig 1: Identifying Fender Liner (For Front Side) Replacement Components

GTY294537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
