Rear Door: Components: Illustration

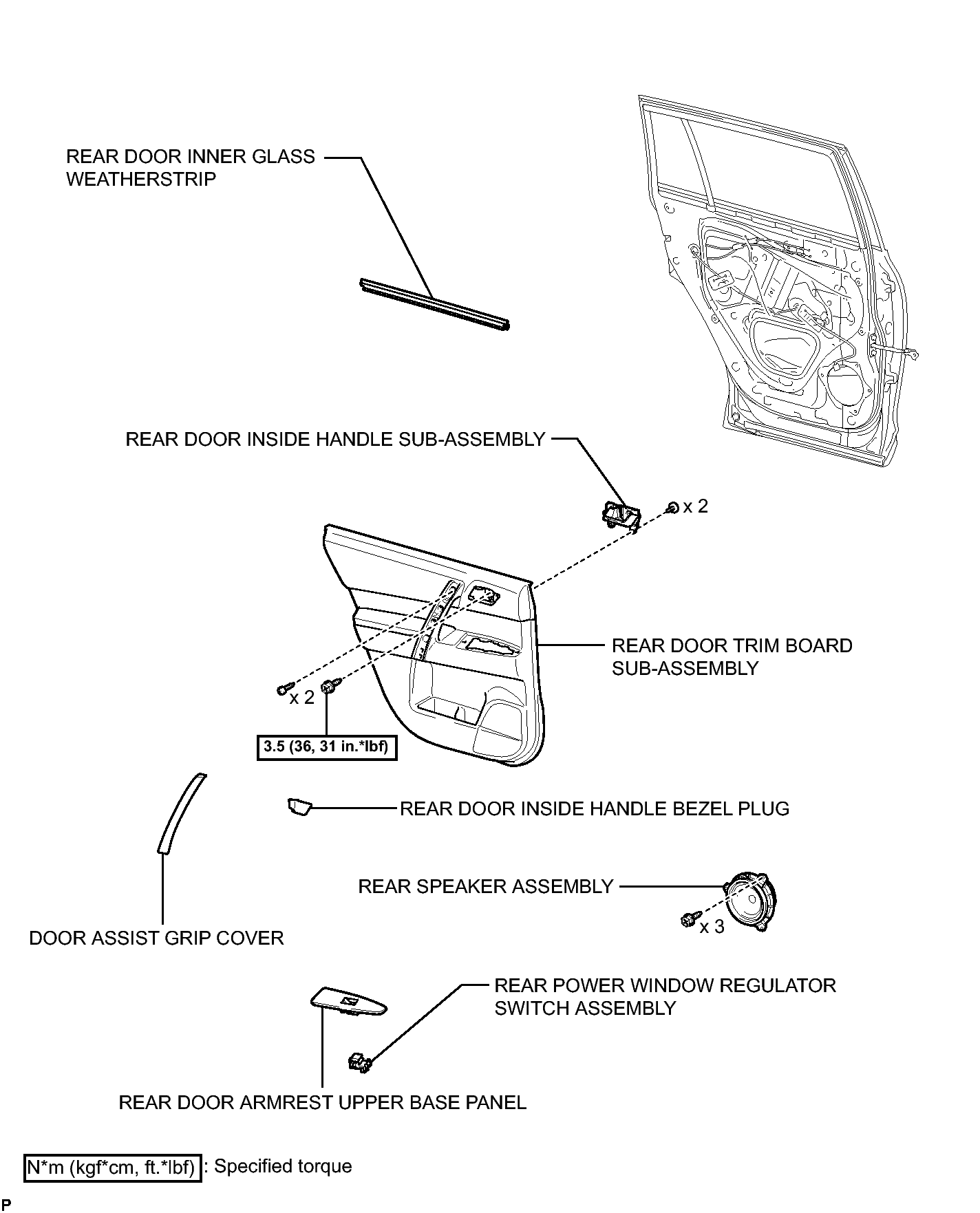

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (1 Of 4)
GTY171646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

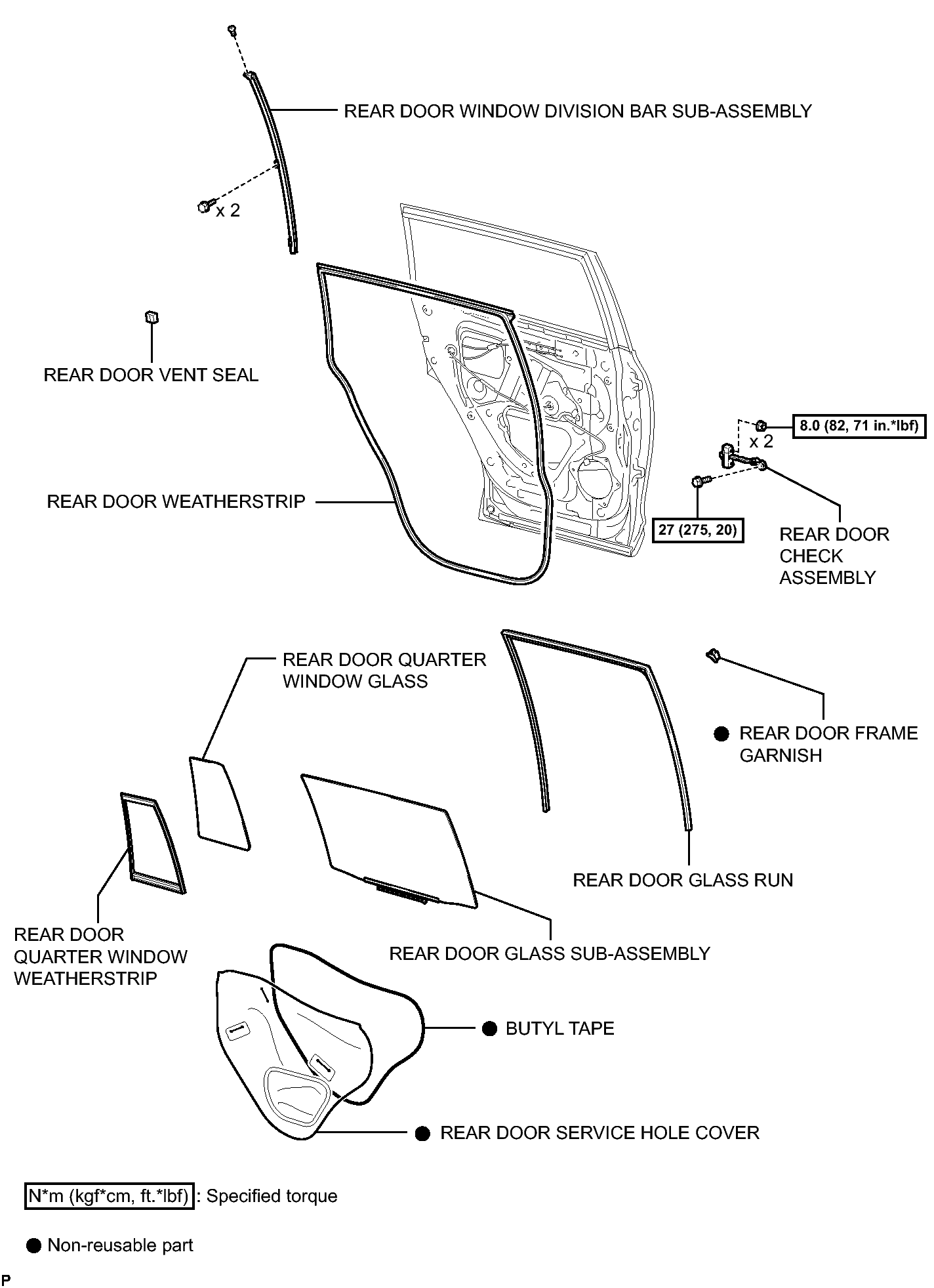

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (2 Of 4)
GTY199124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

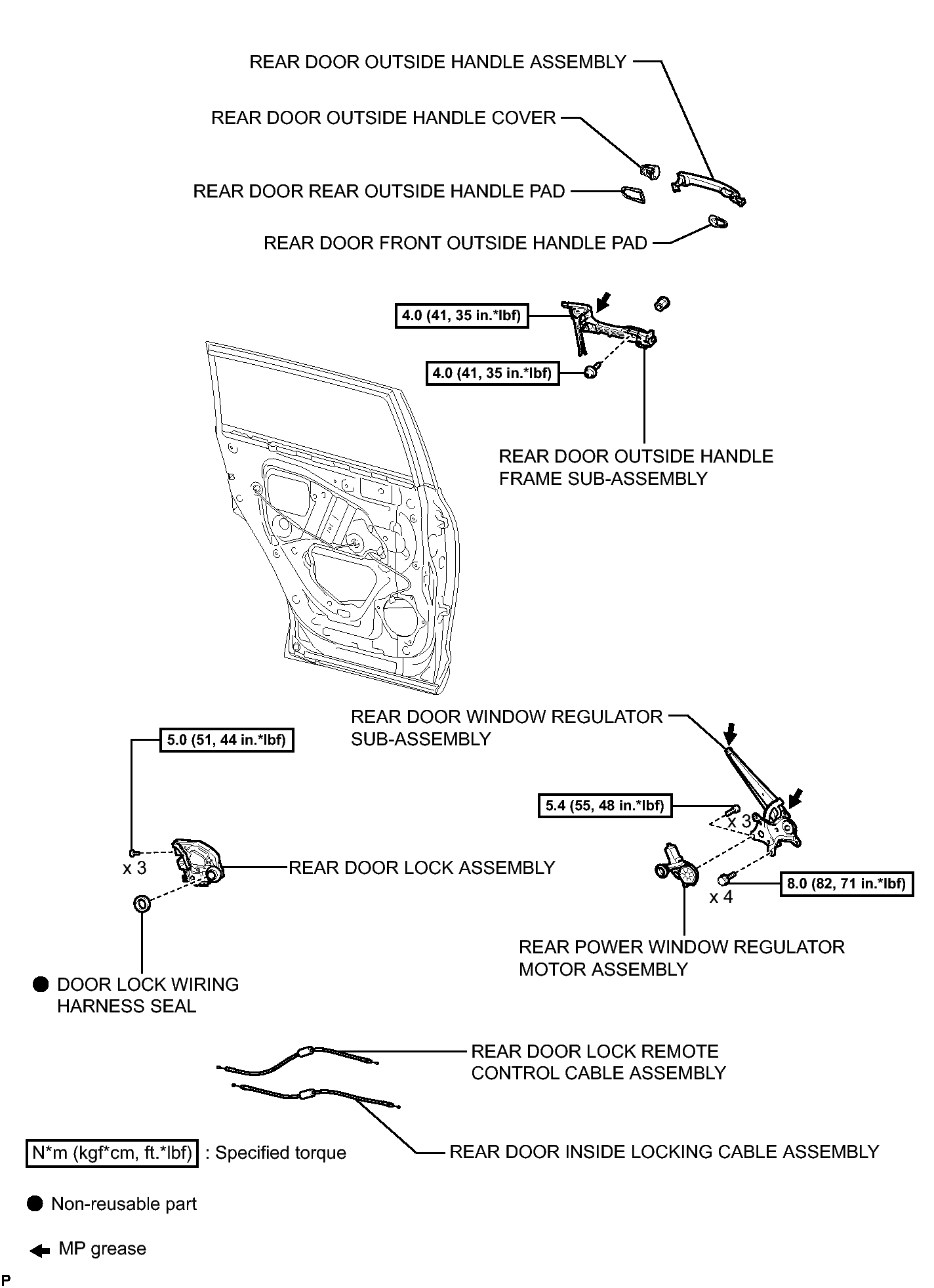

Fig 1: Identifying Rear Door Replacement Components With Torque Specifications (3 Of 4)
GTY199125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

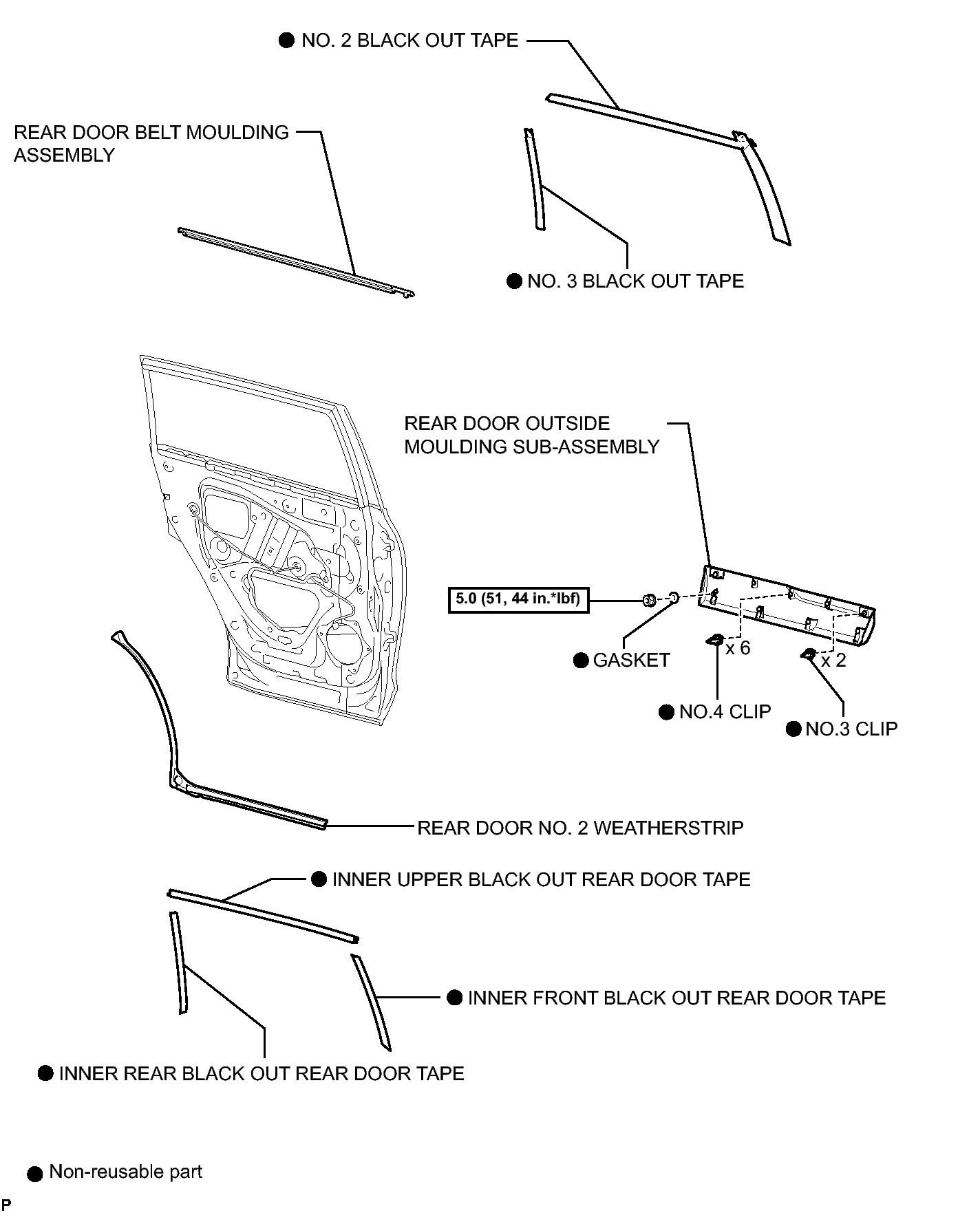

Fig 1: Identifying Rear Door Replacement Components (4 Of 4)
GTY305545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
