Power Back Door Opener / Closer Switch: Components: Illustration

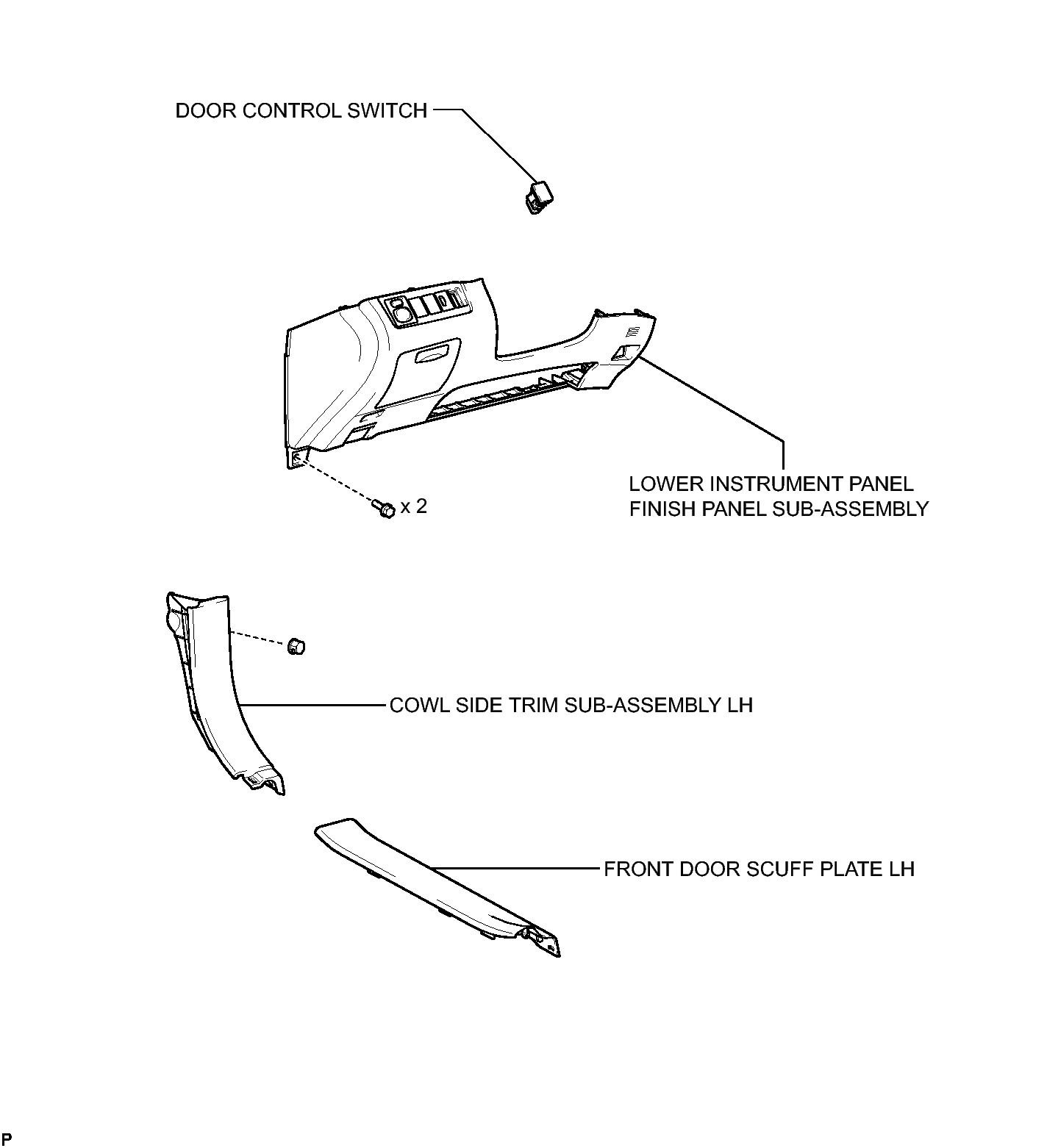

Fig 1: Identifying Power Back Door Opener/Closer Switch Replacement Components

GTY199219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
