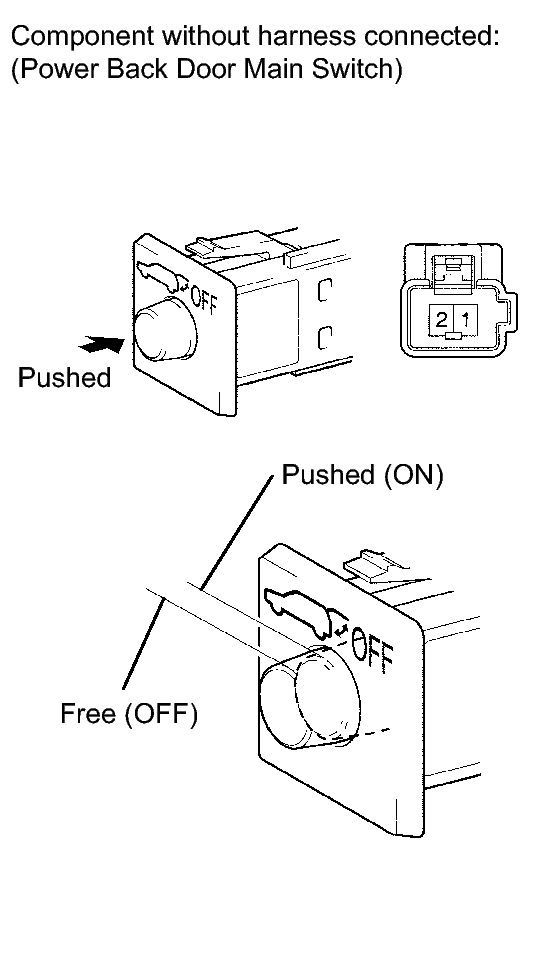

Measure the resistance according to the value(s) in the table below.Standard resistance
| Tester Connection |
Switch Condition |
Specified Condition |
| 1 - 2 |
Free (OFF) |
10 kΩ or higher |
| 1 - 2 |
Pushed (ON) |
Below 1 Ω |
If the result is not as specified, replace the switch.
