Home >> Toyota >> 2012 >> Highlander Limited, AWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> (Door / Hatch) (Service Information) (Except Hybrid) >> Hood >> Components >> Illustration

(Door / Hatch) (Service Information) (Except Hybrid): Hood: Components: Illustration

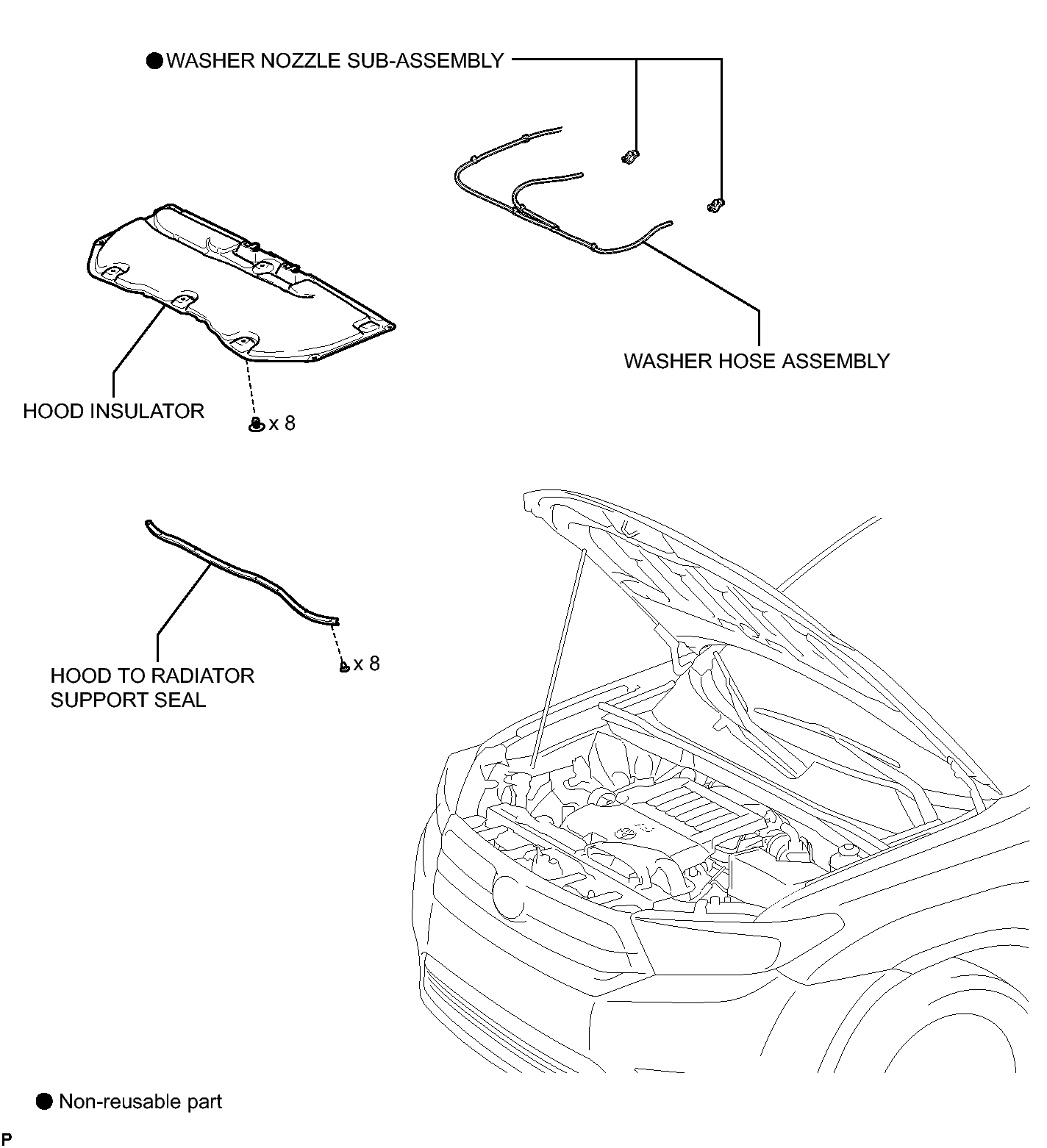

Fig 1: Identifying Hood Replacement Components

GTY303342

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
