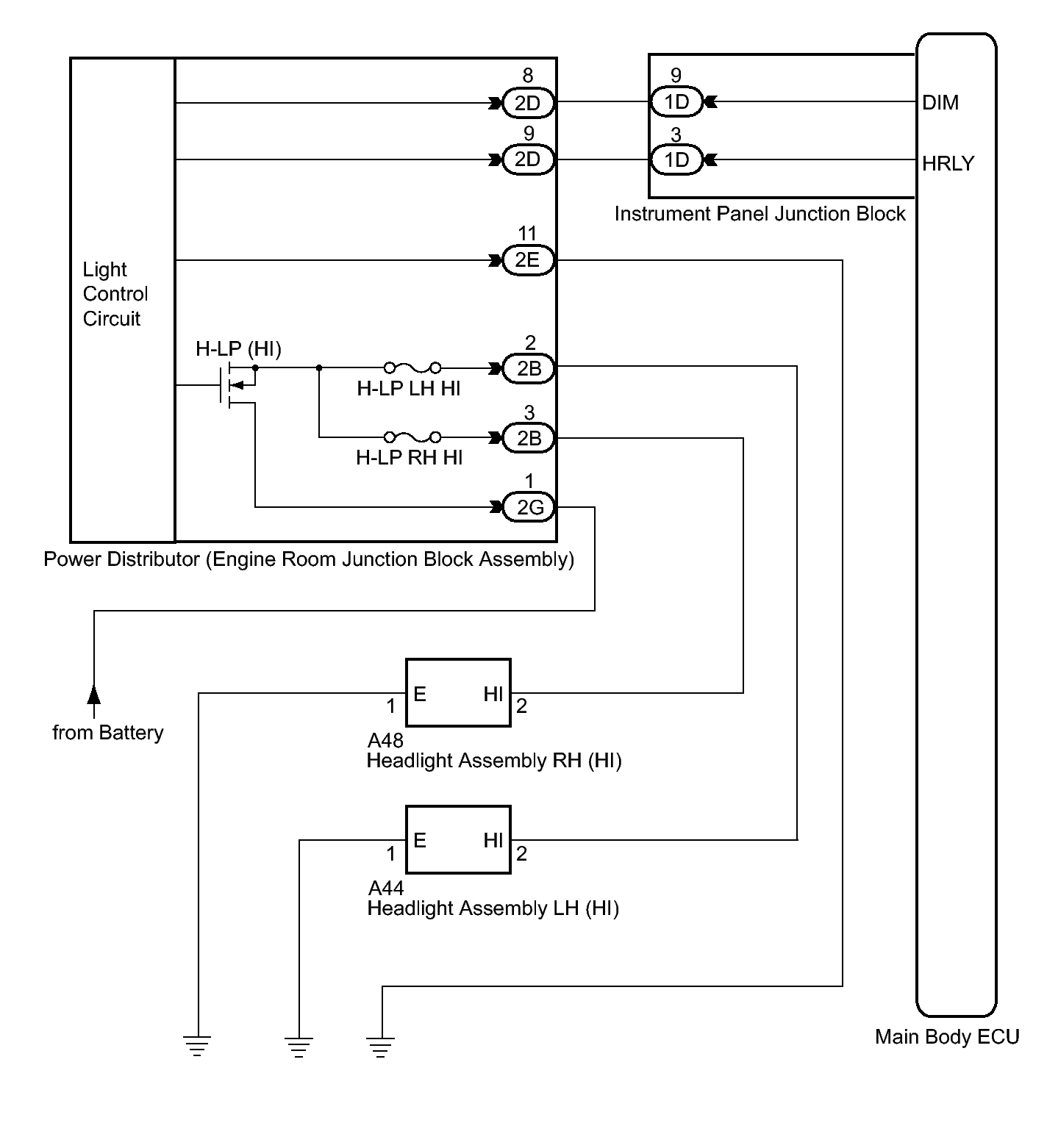

Home >> Toyota >> 2012 >> Highlander Limited, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting System (Diagnostic Codes & Circuit Tests) (Except Hybrid) >> Lighting System >> Circuit Tests >> Headlight (HI-BEAM) Circuit >> Wiring Diagram
