Navigation Receiver: Removal: Removal

  1. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to REMOVAL - Step 12
  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System)  . Refer to REMOVAL - Step 13
  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System)  . Refer to REMOVAL - Step 14
  4. REMOVE HEATER CONTROL AND ACCESSORY ASSEMBLY (for Manual Air Conditioning System)  . Refer to REMOVAL - Step 2
  5. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)  . Refer to REMOVAL - Step 3
  6. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET
    1. Remove the 4 bolts.

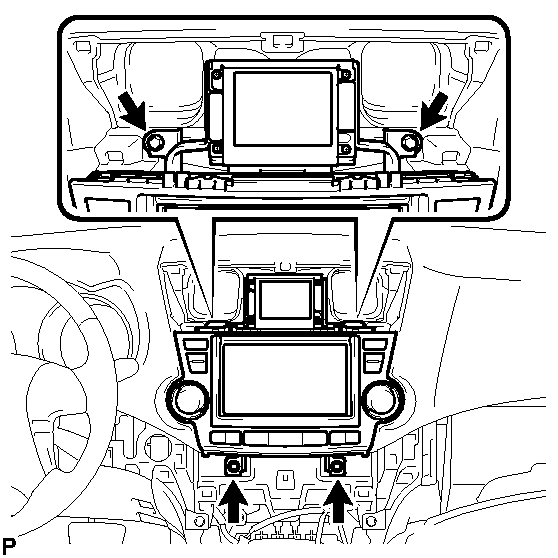

      Fig 1: Identifying Navigation Receiver Assembly Bracket Bolts
      GTY207966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the navigation receiver assembly with bracket toward the rear of the vehicle and disengage the 4 clips.
      Fig 2: Identifying Clips
      GTY184990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the navigation receiver assembly with bracket.
  7. REMOVE NO. 1 RADIO BRACKET
    1. Disengage the claw and disconnect the connector.
      Fig 3: Identifying Claw And Connector
      GTY207967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws and No. 1 radio bracket.
      Fig 4: Locating No. 1 Radio Bracket Screws
      GTY184483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 6 screws and No. 2 radio bracket.
      Fig 5: Locating No. 2 Radio Bracket Screws
      GTY184654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NAVIGATION RECEIVER ASSEMBLY
