Steering Pad Switch: Components: Illustration

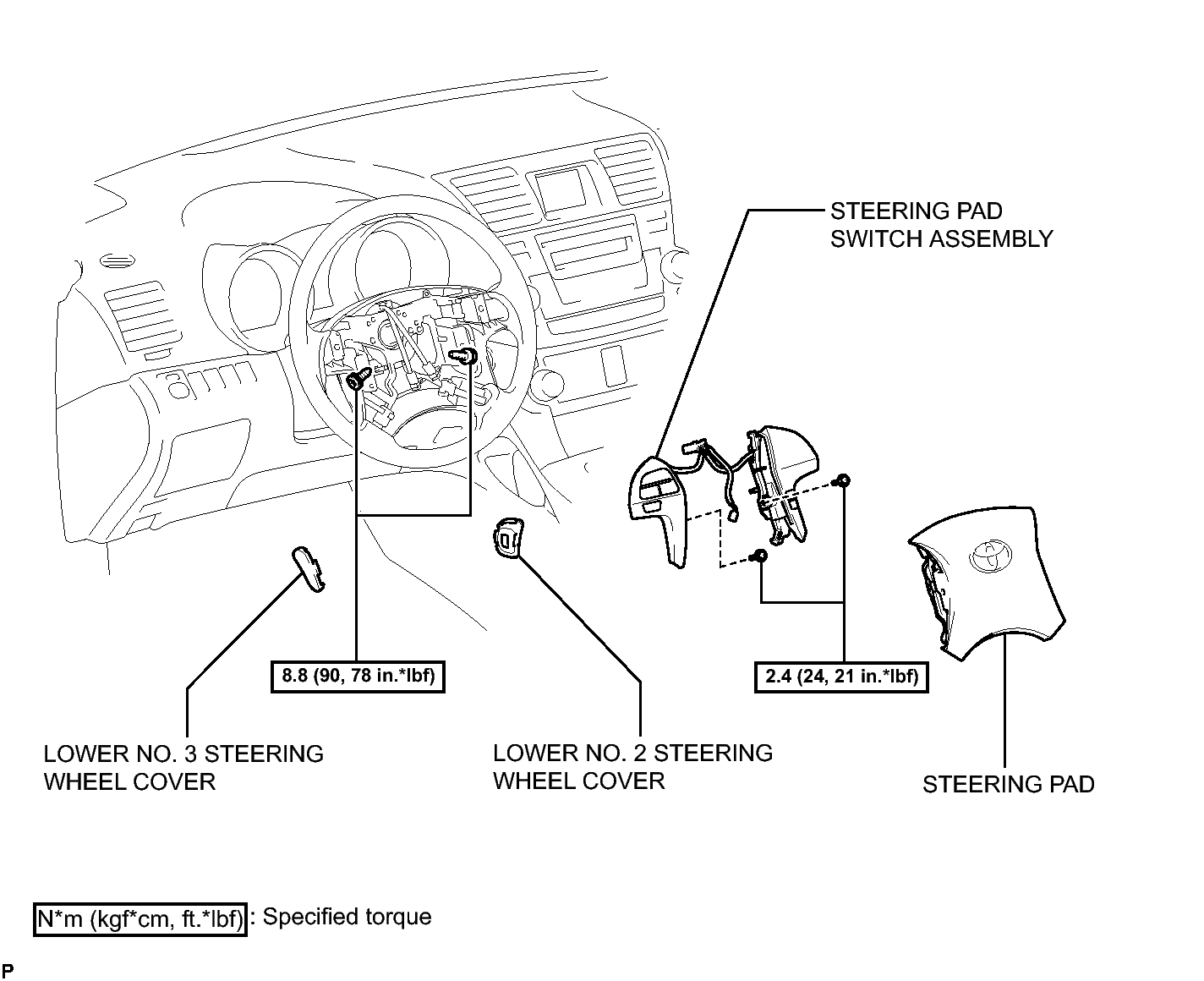

Fig 1: Identifying Steering Pad Switch Replacement Components With Torque Specifications

GTY298058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
