Spiral Cable: Components: Illustration

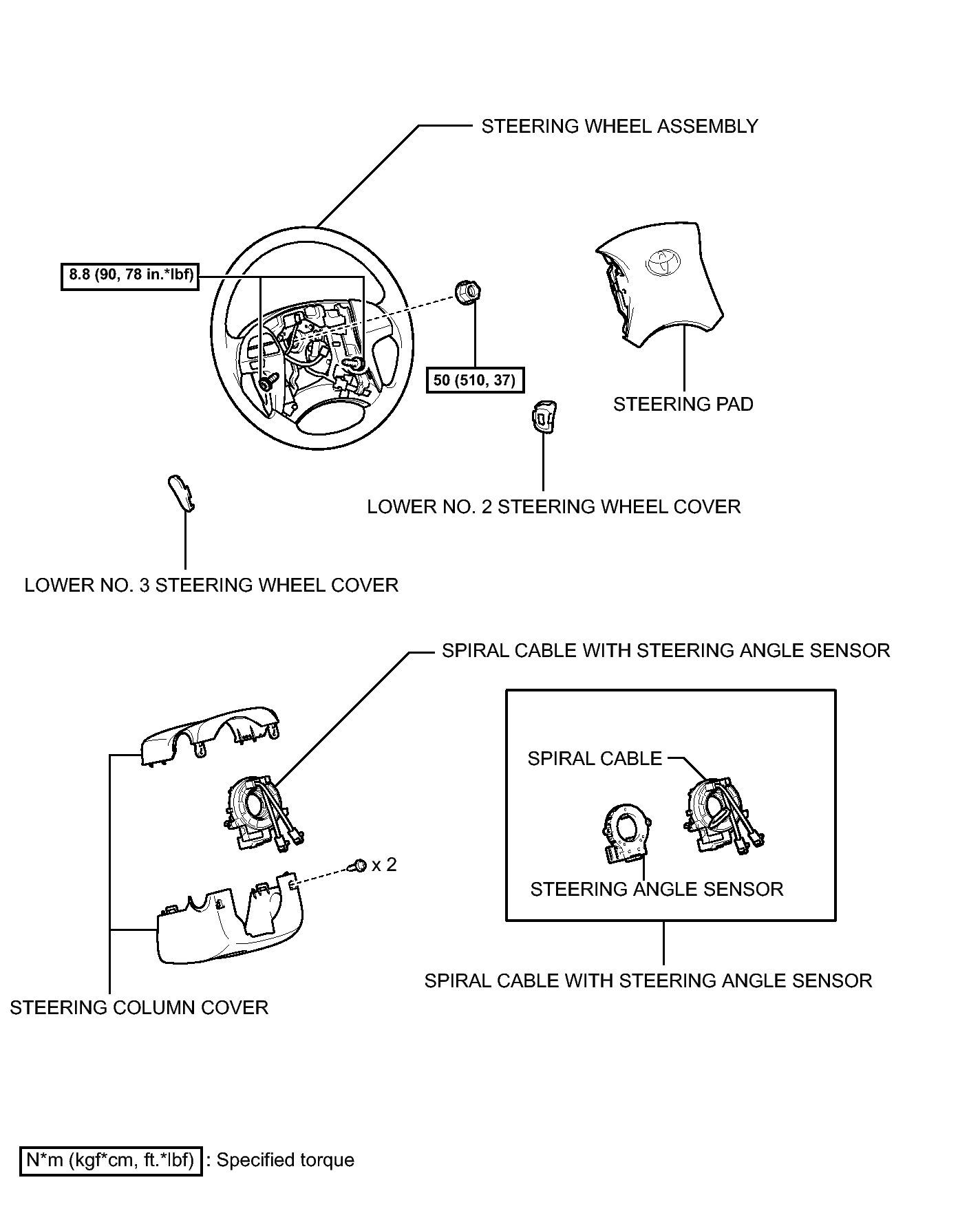

Fig 1: Identifying Spiral Cable Replacement Components With Torque Specifications

GTY204162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
