Meter / Gauge System: Initialization: Initialization

  1. MAINTENANCE REQUIRED REMINDER RESET OPERATION

    HINT:

    • The TRIP meter reset knob is located below the speedometer.
    • This reset operation is required only for U.S.A.
    1. Turn the ignition switch on (IG).
    2. Press the ODO/TRIP switch until the TRIP meter A appears.
    3. Turn the ignition switch off.
    4. Turn the ignition switch on (IG) while pressing and holding the TRIP meter reset knob. Hold the TRIP meter reset knob until the following conditions are met and 5 seconds have passed.

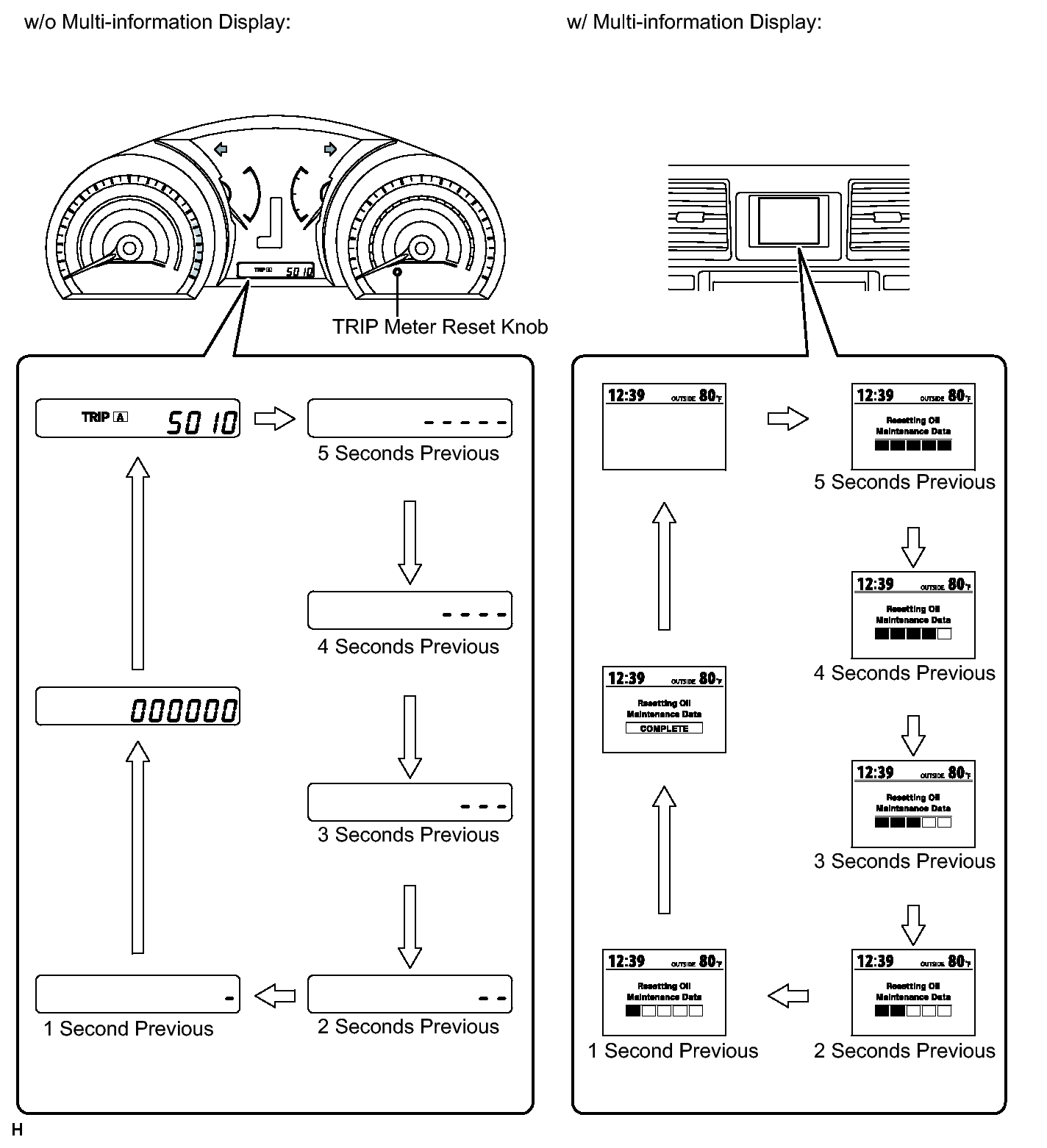

      Fig 1: Identifying Multi-Information Display Table
      GTY190417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • The multi-information display shows "Resetting Oil Maintenance Data".
      • When maintenance required reminder light turns off, the reset is complete.
