Sound Signal Circuit between Video Terminal and Television Display: Wiring Diagram

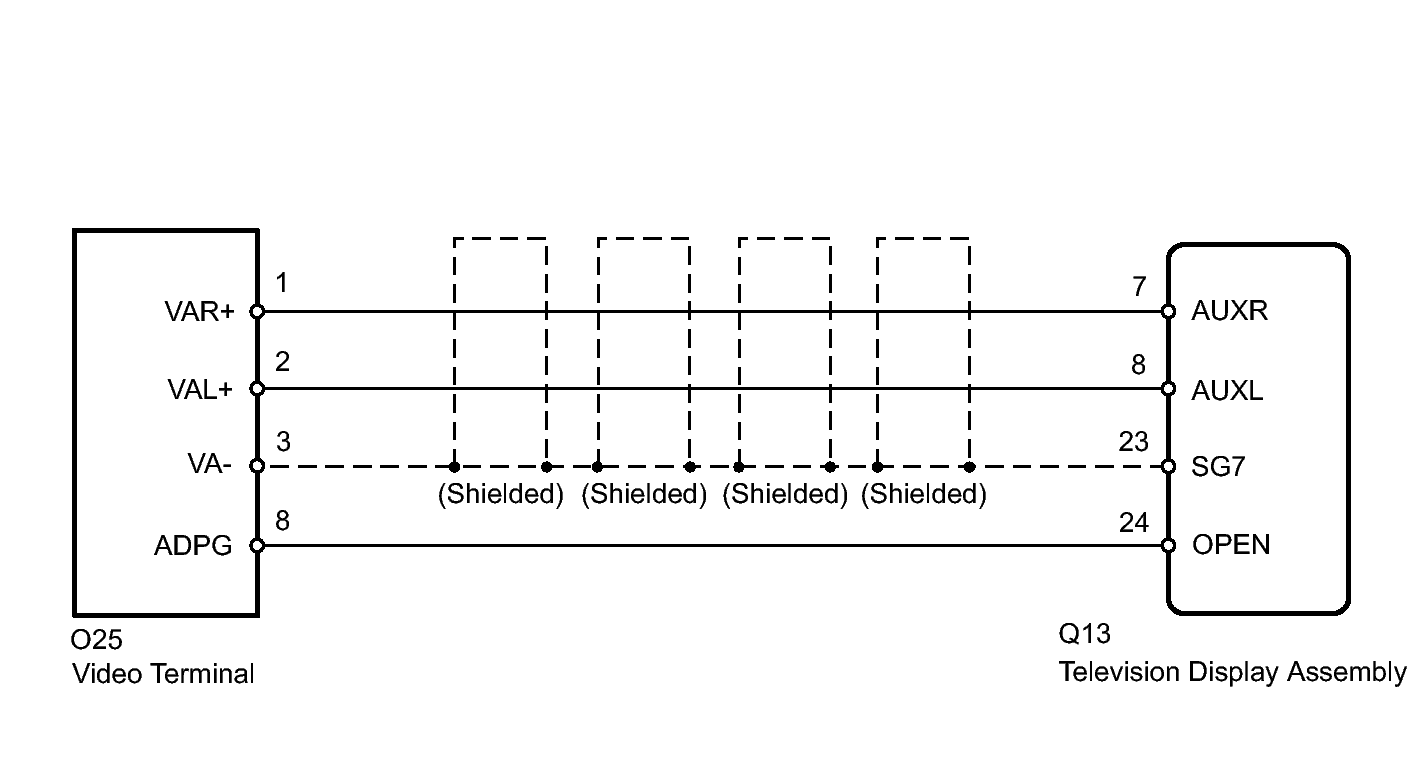

Fig 1: Sound Signal Between Video Terminal And Television Display Circuit - Wiring Diagram
GTY208284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
