DTC C2176/76: Receiver Error: Wiring Diagram

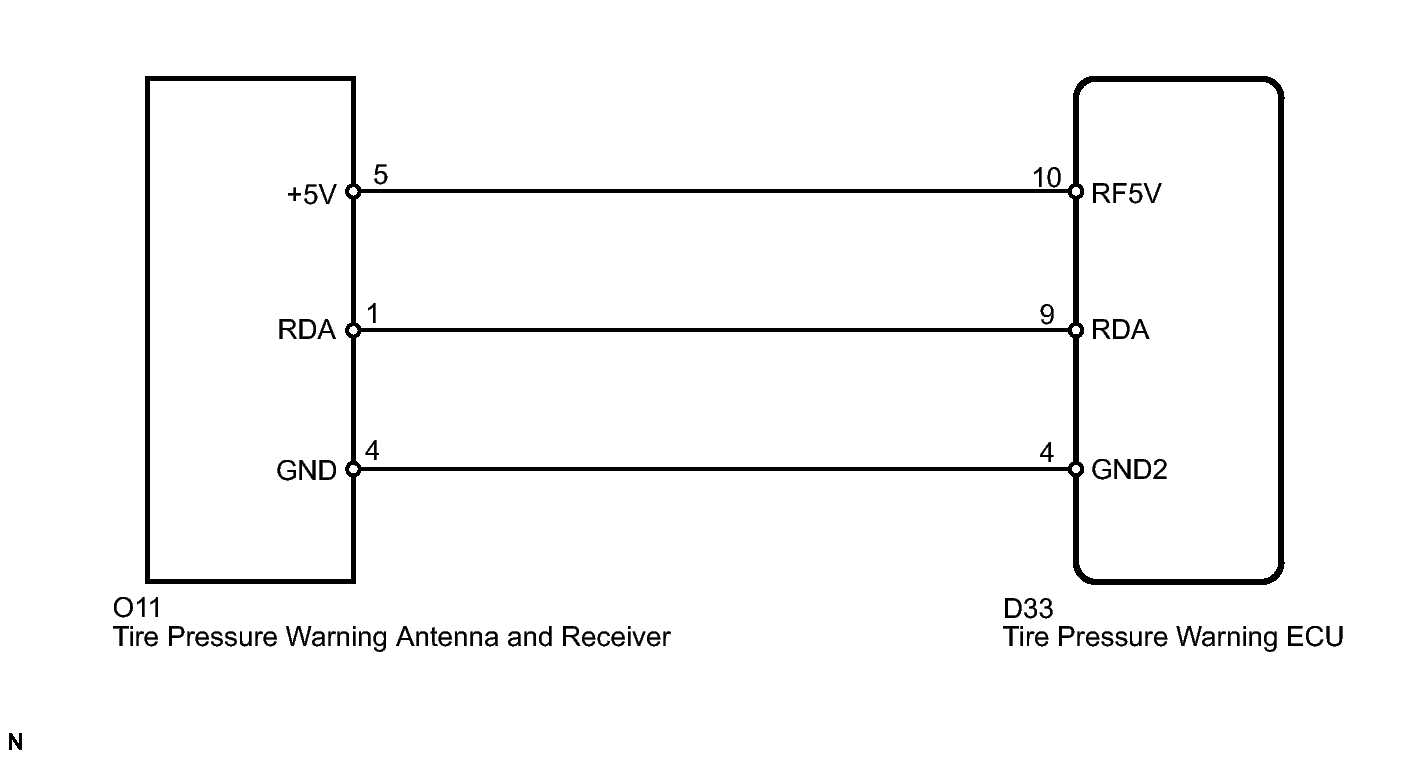

Fig 1: TPWS ECU Circuit Wiring Diagram

GTY202650

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
