Tire Pressure Warning Valve And Transmitter: Components: Illustration

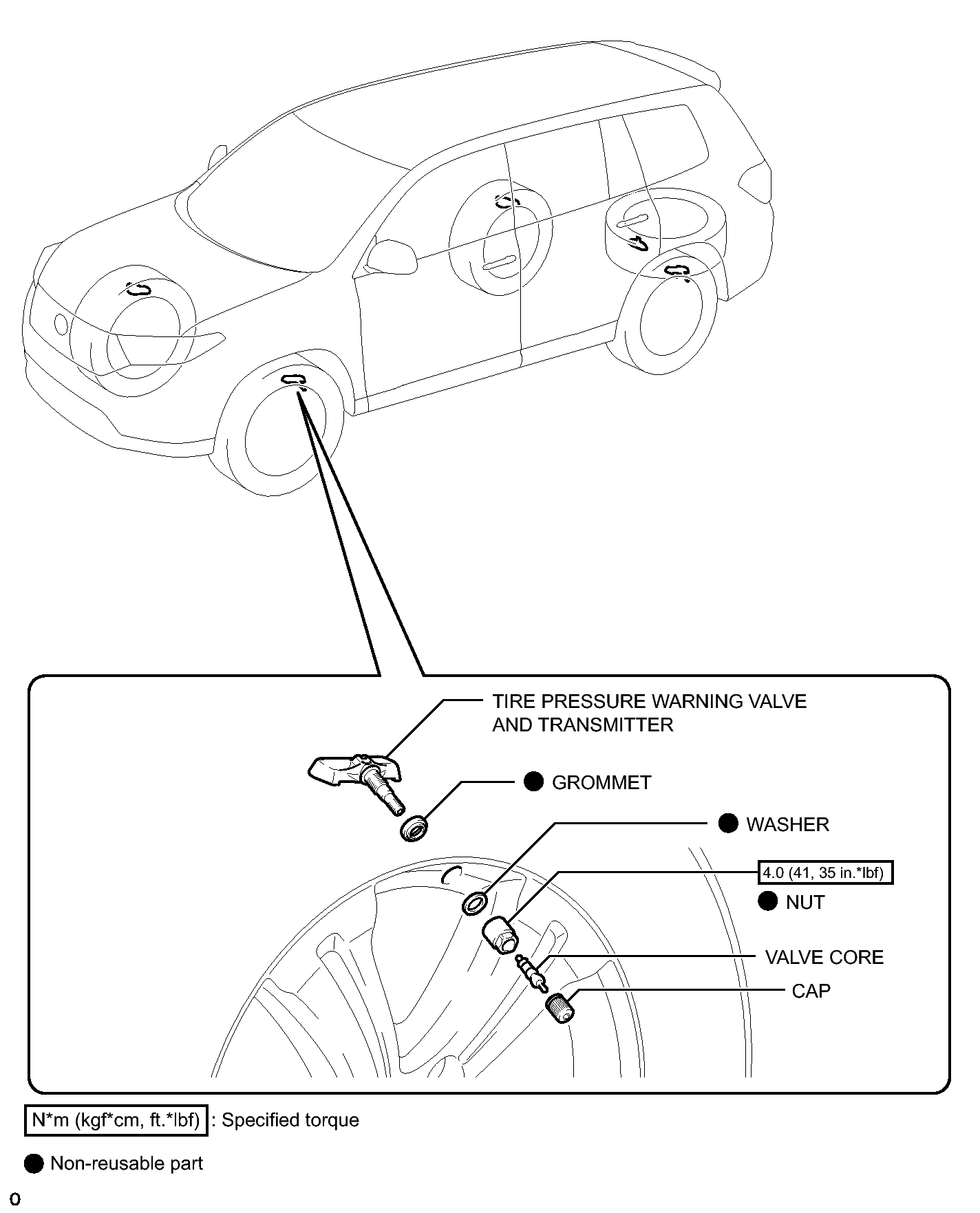

Fig 1: Identifying Tire Pressure Warning Valve And Transmitter Replacement Components With Torque Specifications
GTY318274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
