Tire Pressure Warning Receiver: Components: Illustration

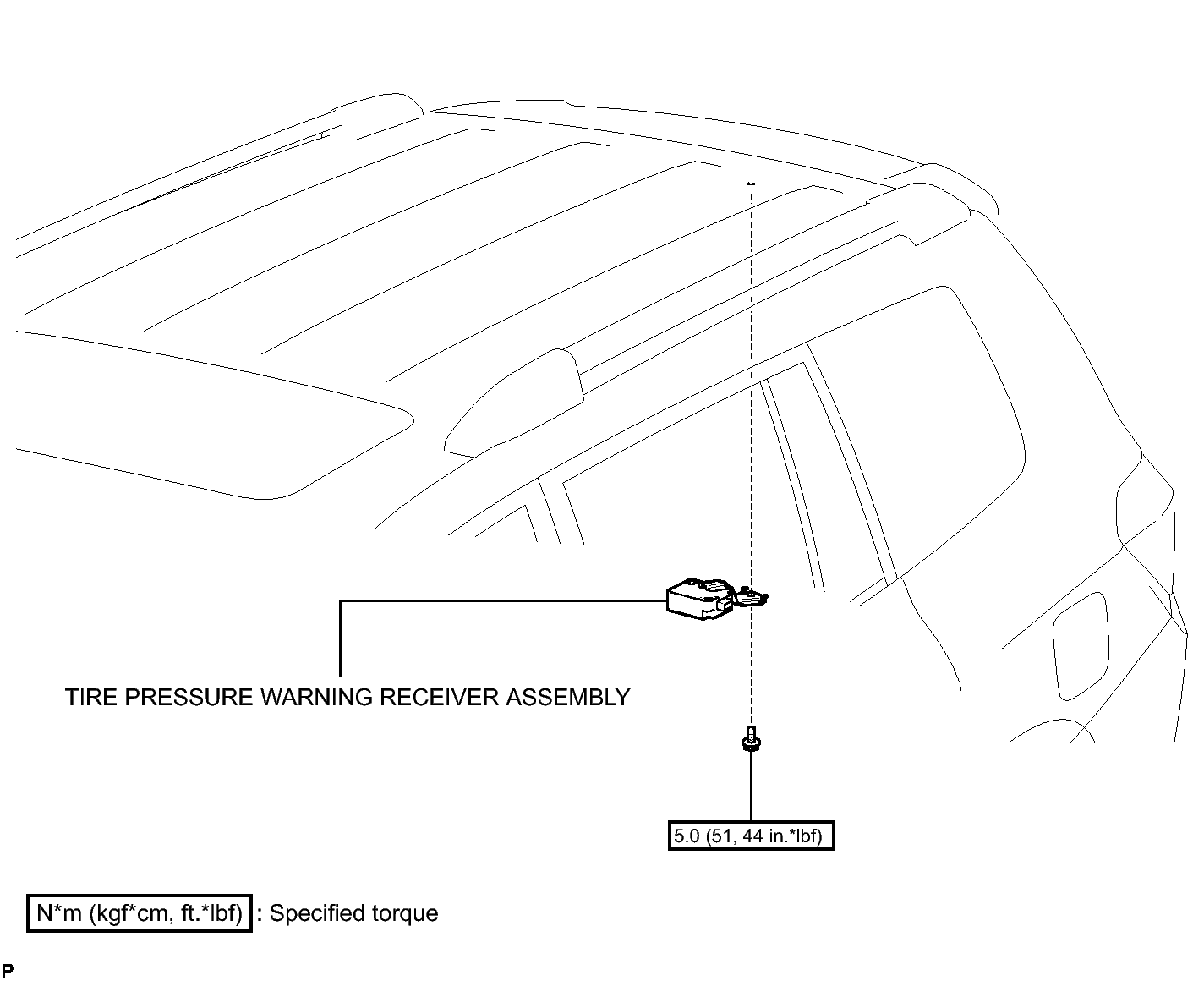

Fig 1: Identifying Tire Pressure Warning Receiver Assembly Replacement Components With Torque Specifications
GTY297058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
