Tire Pressure Warning Ecu: Components: Illustration

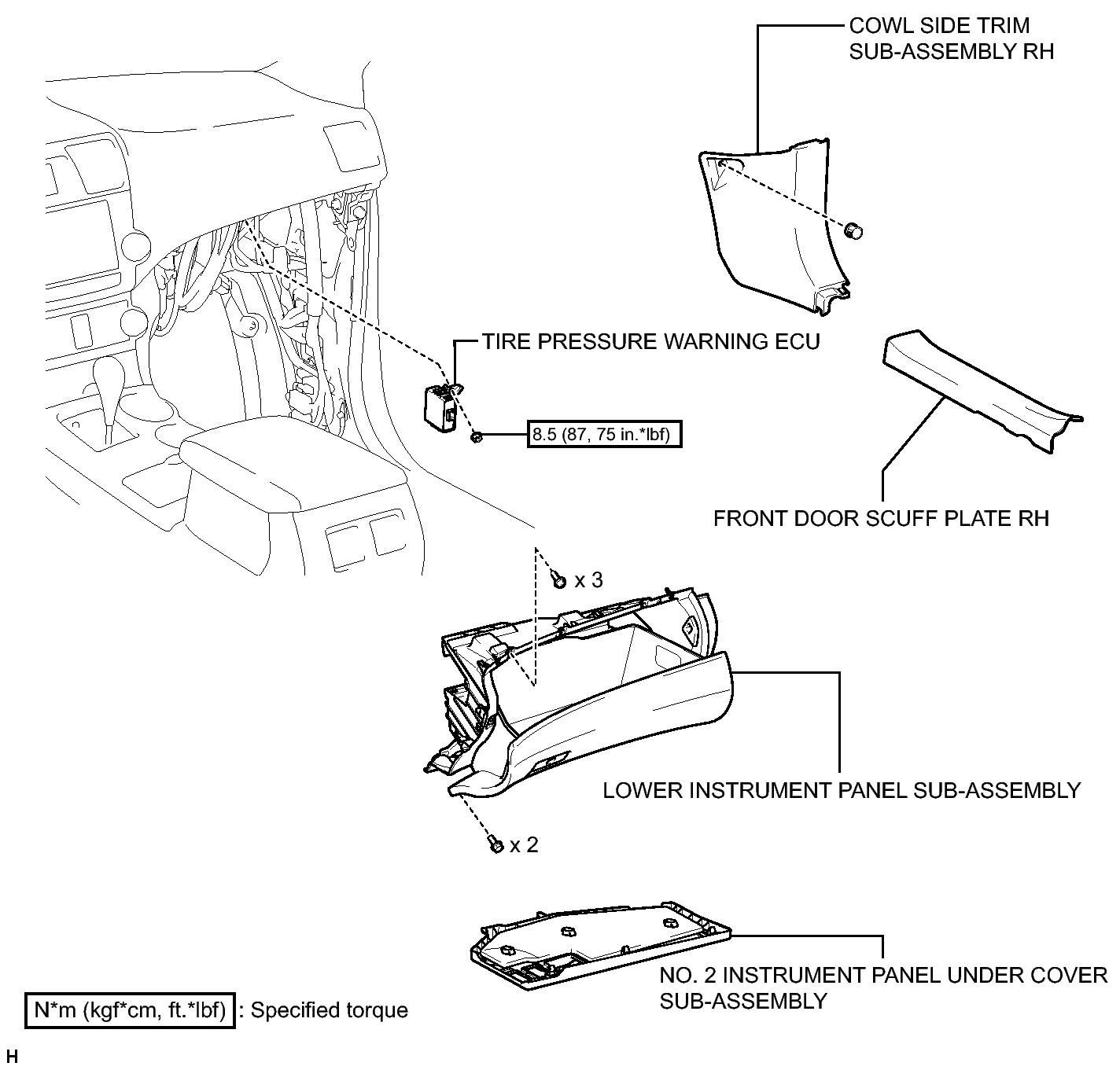

Fig 1: Identifying Tire Pressure Warning ECU Replacement Components With Torque Specifications

GTY297235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
