DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction
>>
Wiring Diagram
DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction: Wiring Diagram

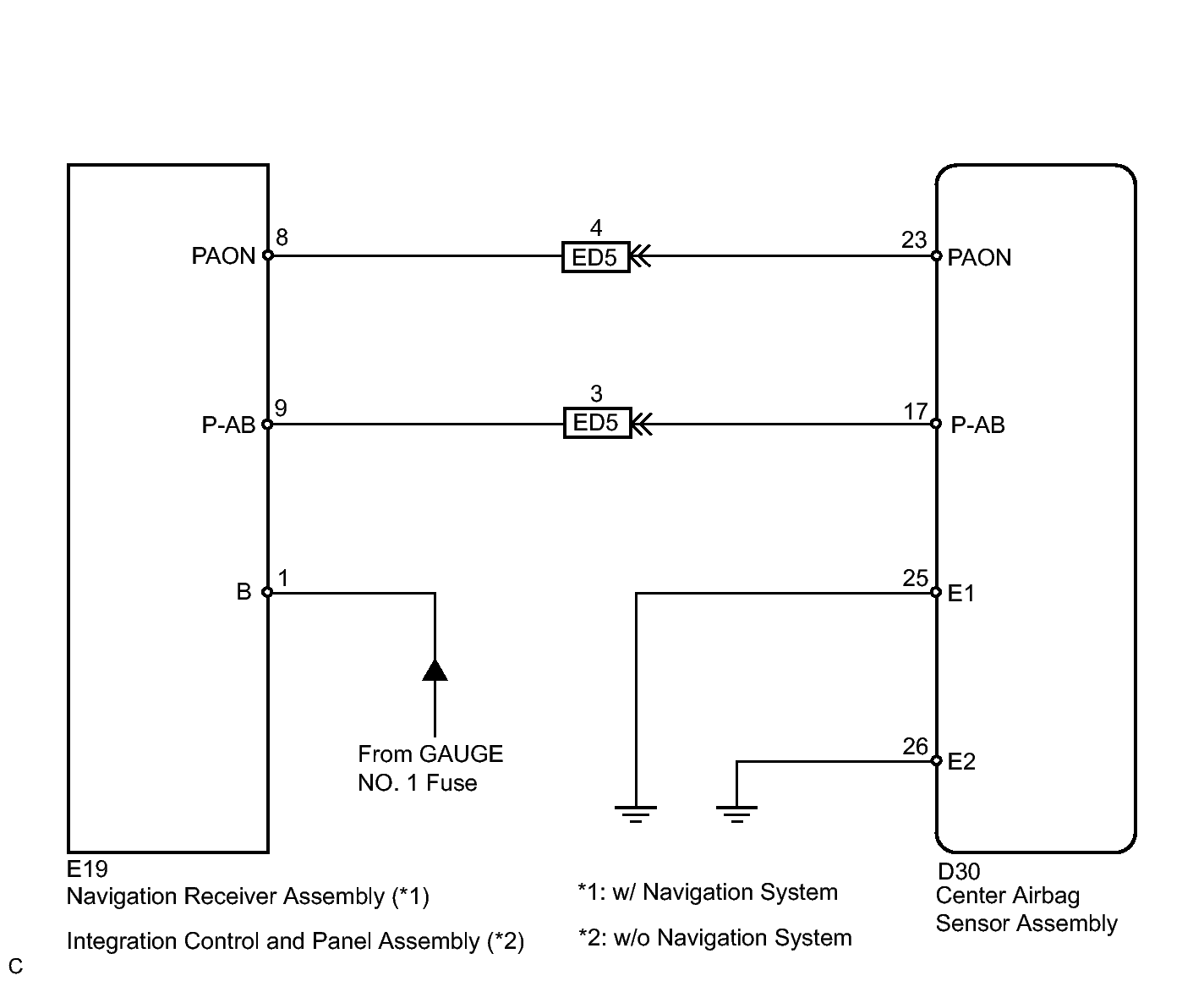

Fig 1: Passenger Airbag ON/OFF Indicator Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
