DTC B1625/22: Side Airbag Sensor LH Circuit Malfunction: Wiring Diagram

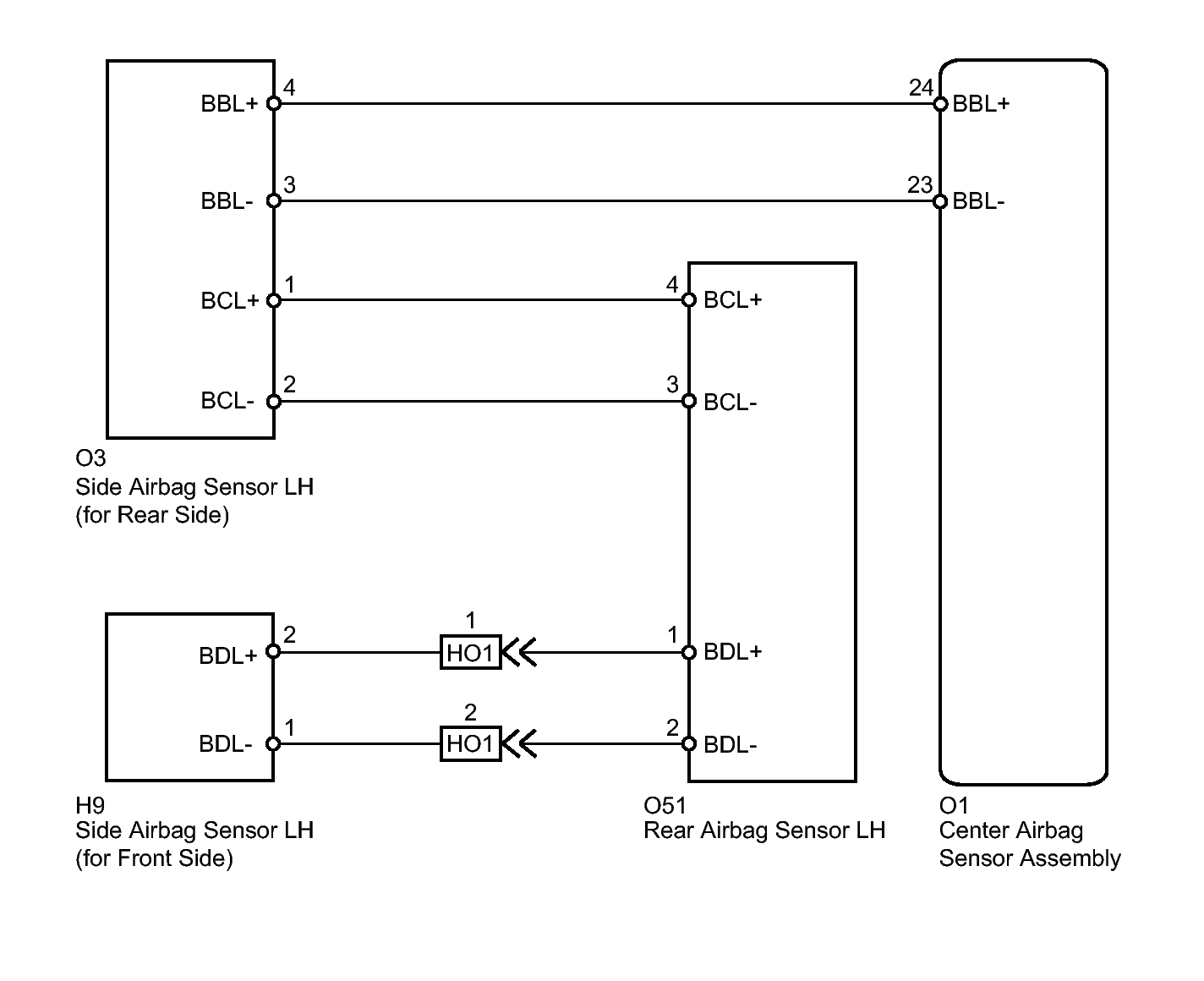

Fig 1: Side Airbag Sensor LH Wiring Diagram

GTY299208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
