DTC B161A/8A: Lost Communication with Front Satellite Sensor Bus: Wiring Diagram

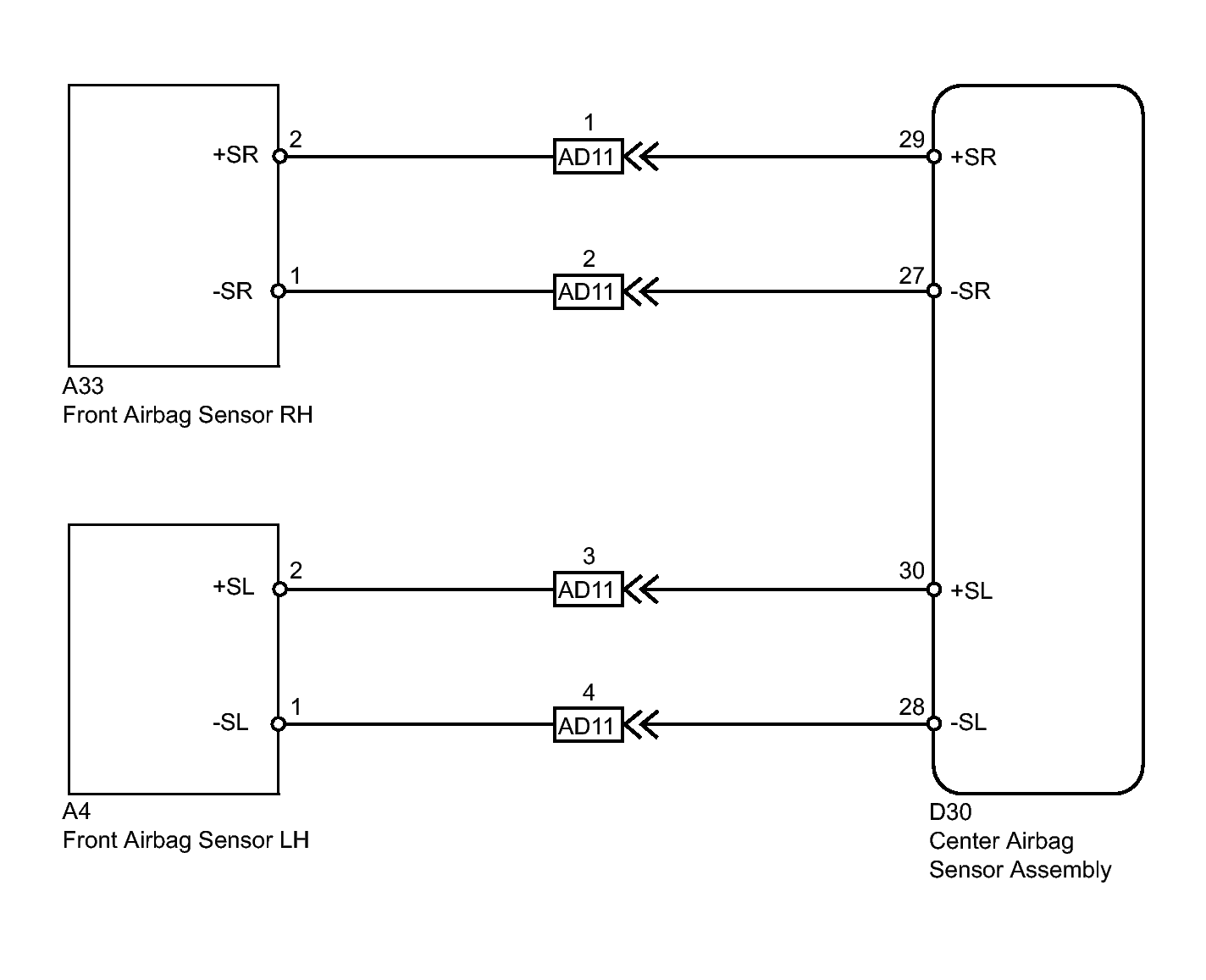

Fig 1: Front Airbag Assembly Wiring Diagram

GTY298624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
