REAR NO. 1 SEAT INNER BELT ASSEMBLY (for LH Side): Components: Illustration

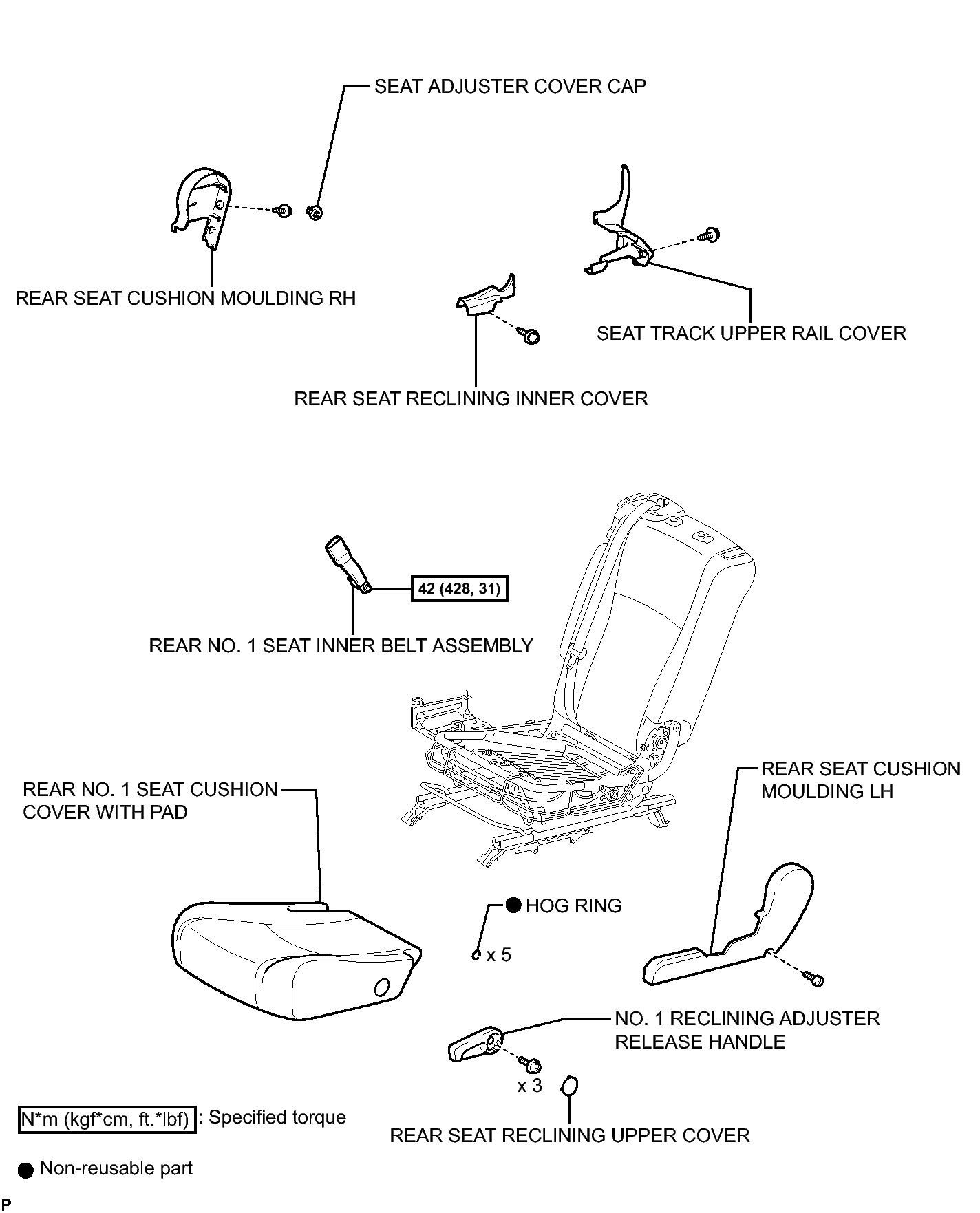

Fig 1: Identifying Rear NO. 1 Seat Inner Belt Assembly Replacement Components (For LH Side) With Torque Specifications (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear NO. 1 Seat Inner Belt Assembly Replacement Components (For LH Side) With Torque Specifications (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
