Front Seat Outer Belt Assembly With PRETENSIONER: Components: Illustration

Fig 1: Identifying Front Seat Outer Belt Assembly Replacement Components (1 Of 2)
GTY300837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

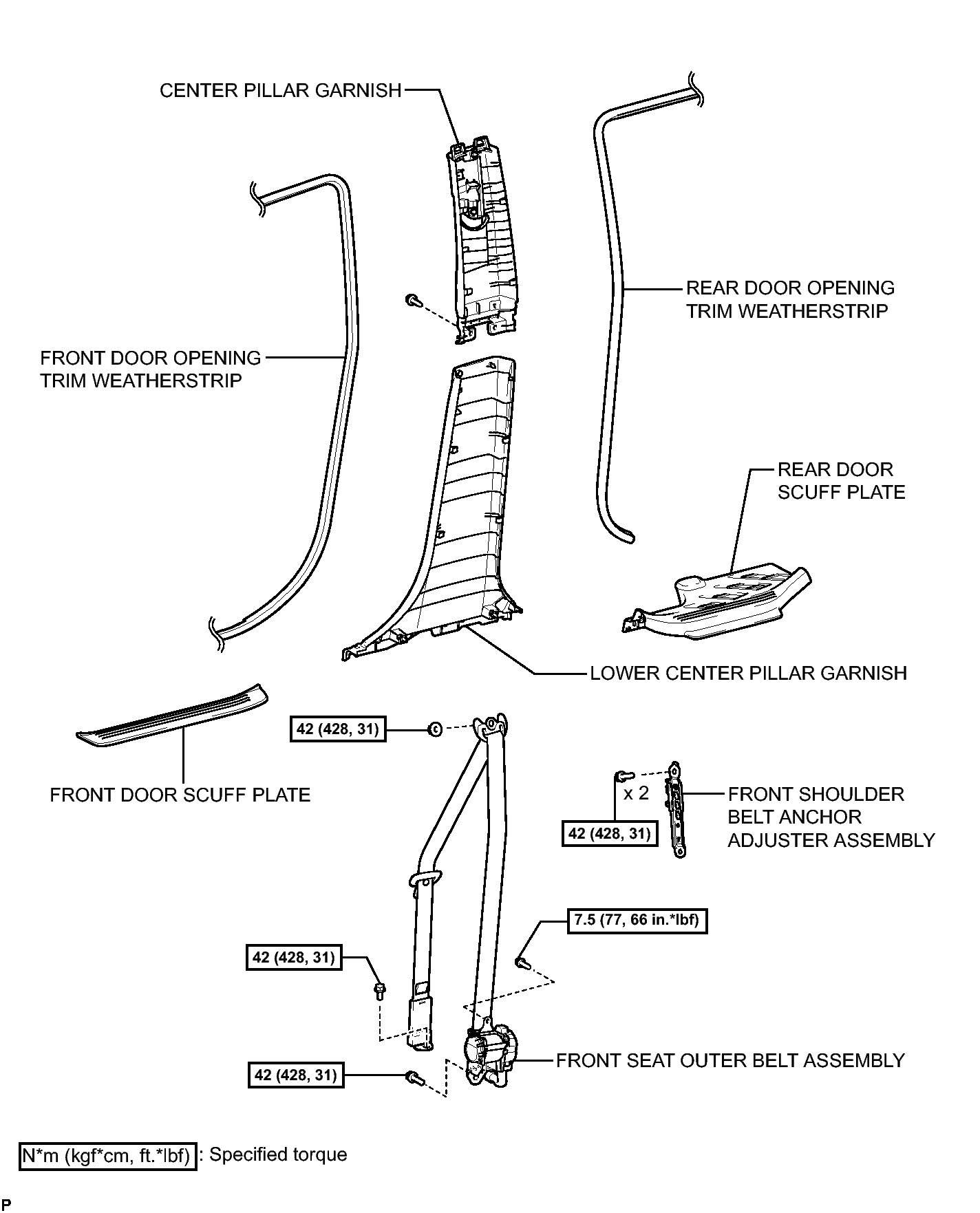

Fig 1: Identifying Front Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY198881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
