DTC P0A79-136: Drive Motor "B" Inverter Performance: Wiring Diagram

Refer to the wiring diagram for DTC P324E-788. Refer to WIRING DIAGRAM .

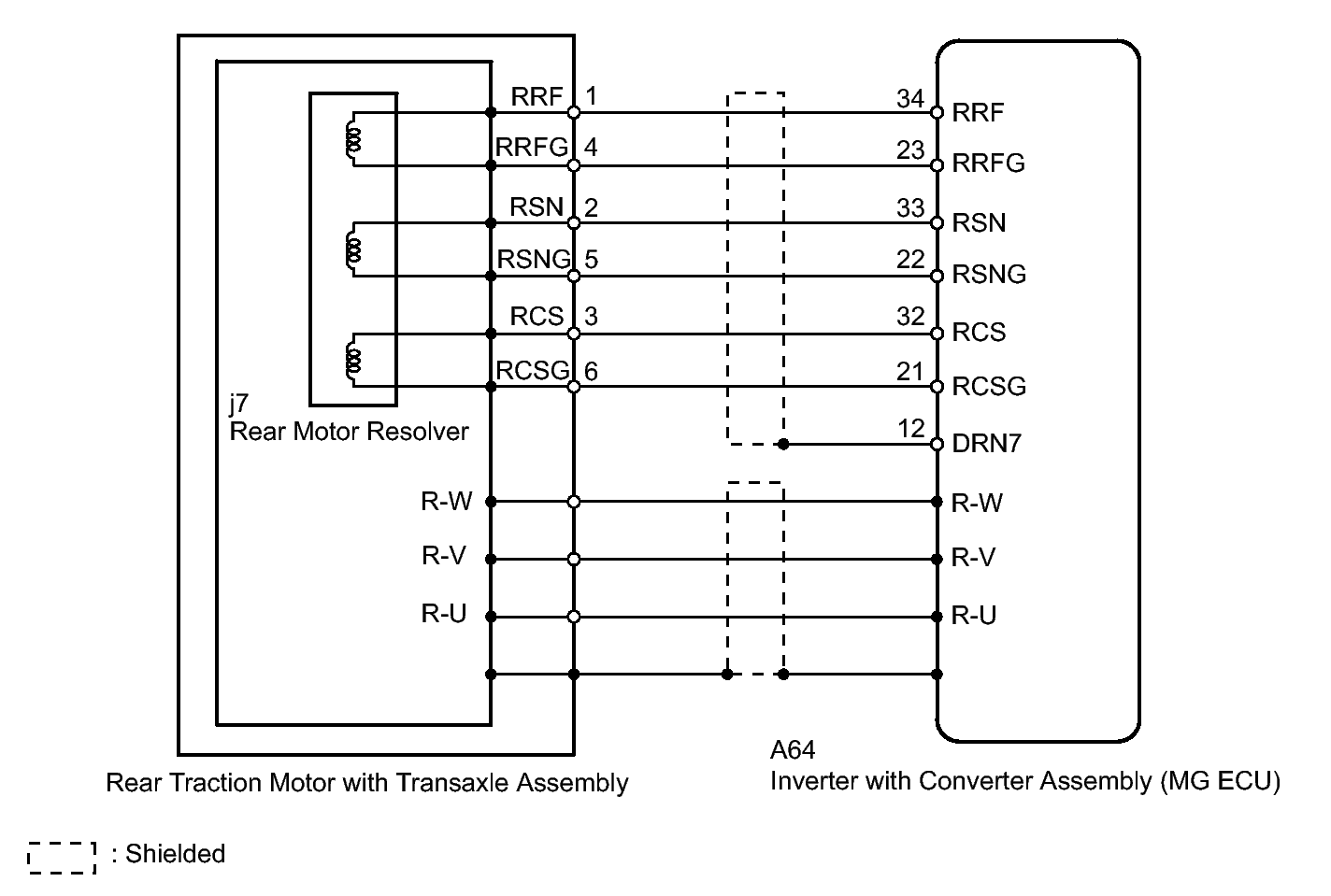

Fig 1: Identifying Rear Traction Motor With Transaxle Assembly Wiring Diagram
