DTC B1497/97: BUS IC Communication Malfunction: Wiring Diagram

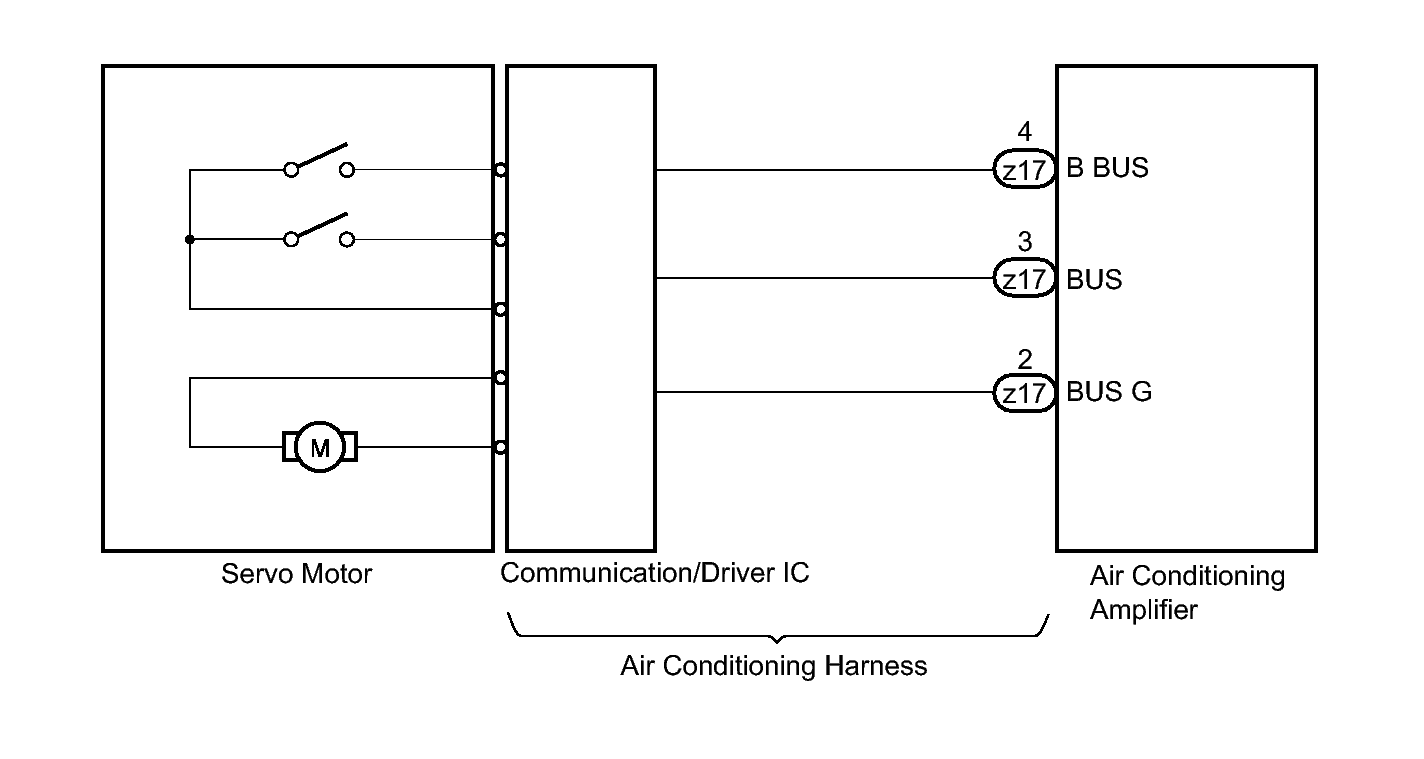

Fig 1: Identifying Bus IC Communication Wiring Diagram

GTY304223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
