DTC B1476/76: A/C Inverter Load System Malfunction: Wiring Diagram

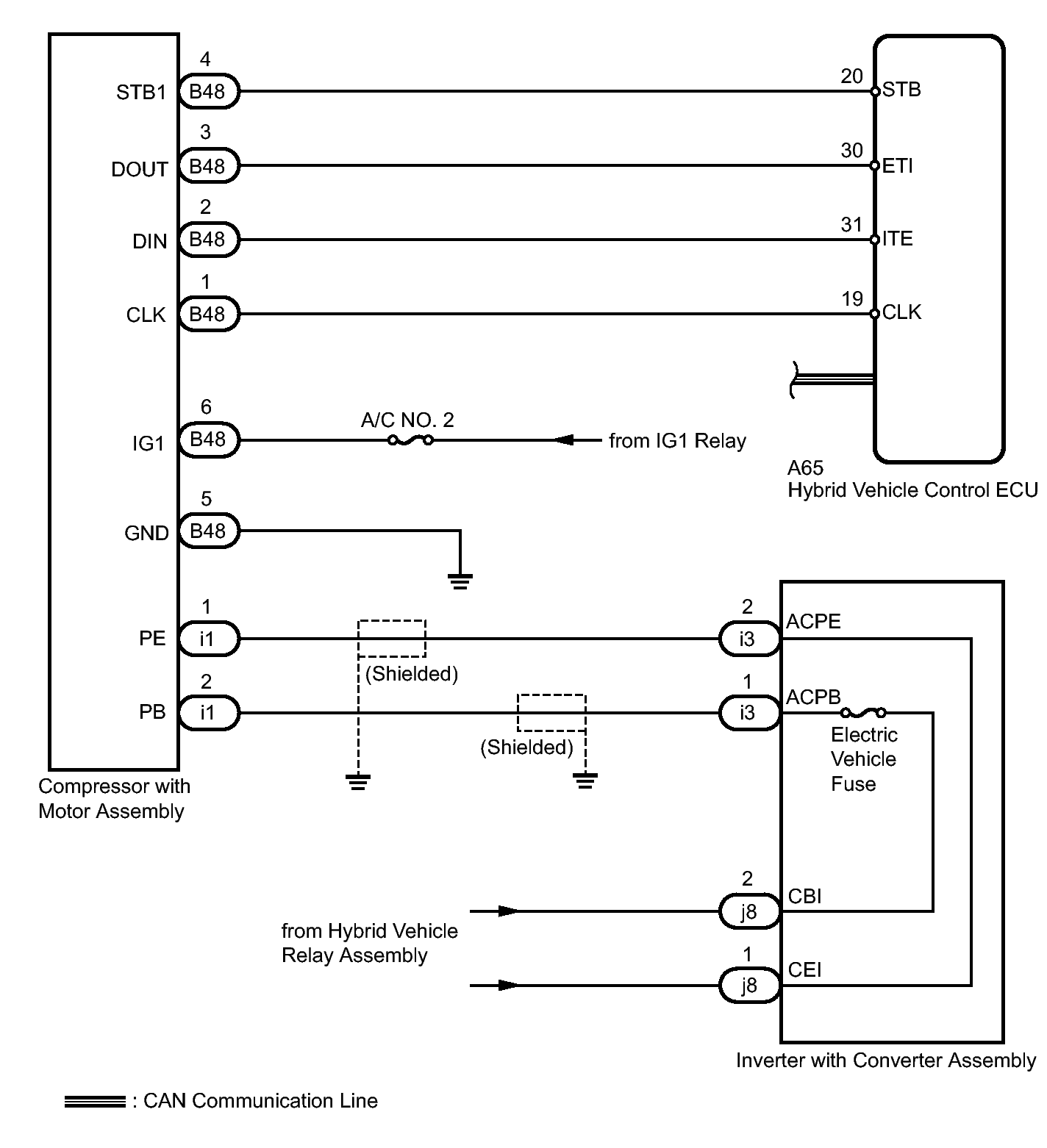

Fig 1: Identifying A/C Inverter High Voltage Power Resource System Wiring Diagram

GTY303913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
