Section 127 (Air Conditioning (Manual) (Diagnostic Codes & Circuit Tests) (Except Hybrid))
>>
AIR CONDITIONING SYSTEM (for Manual Air Conditioning System)
>>
Circuit Tests
>>
Blower Motor Circuit
>>
Wiring Diagram
Blower Motor Circuit: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

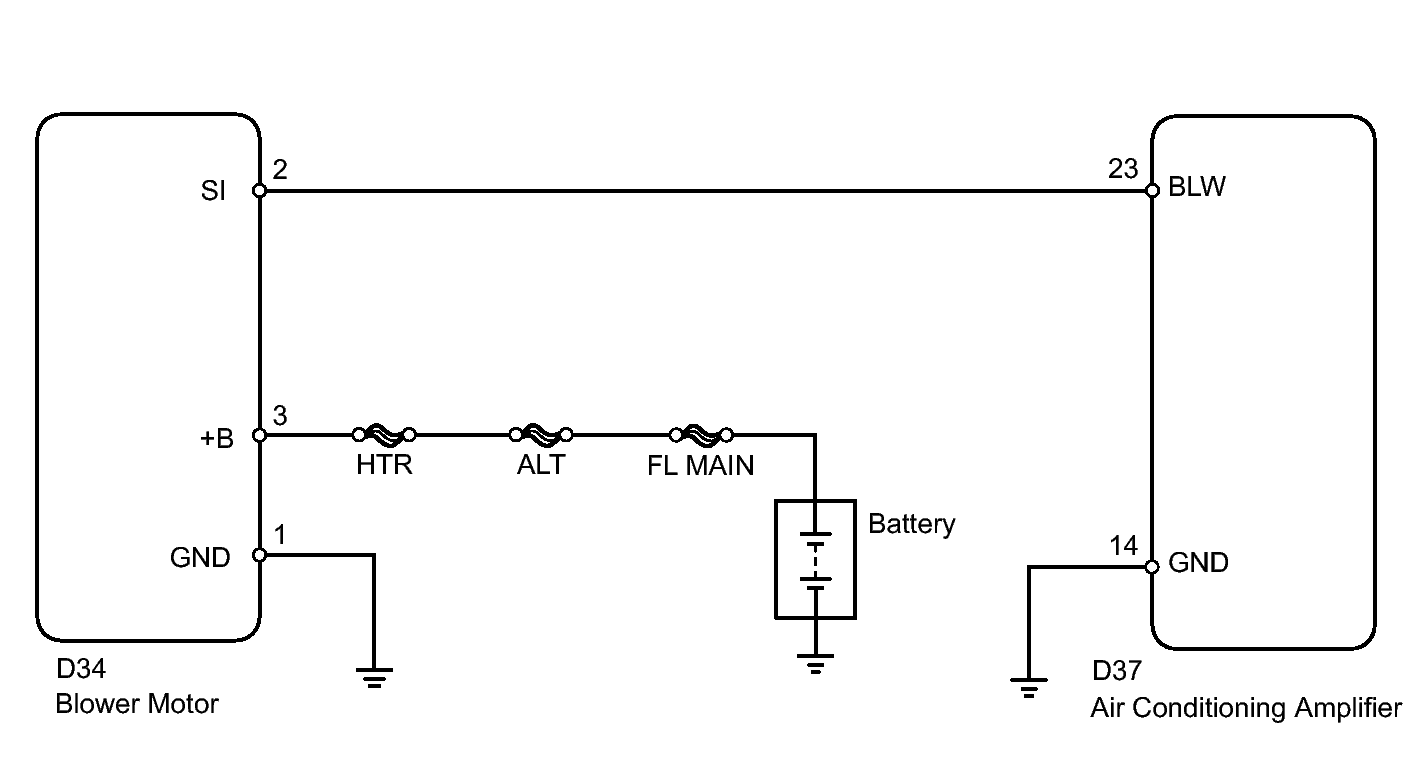

Fig 1: Blower Motor Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
