Position of Parts in Instrument Panel

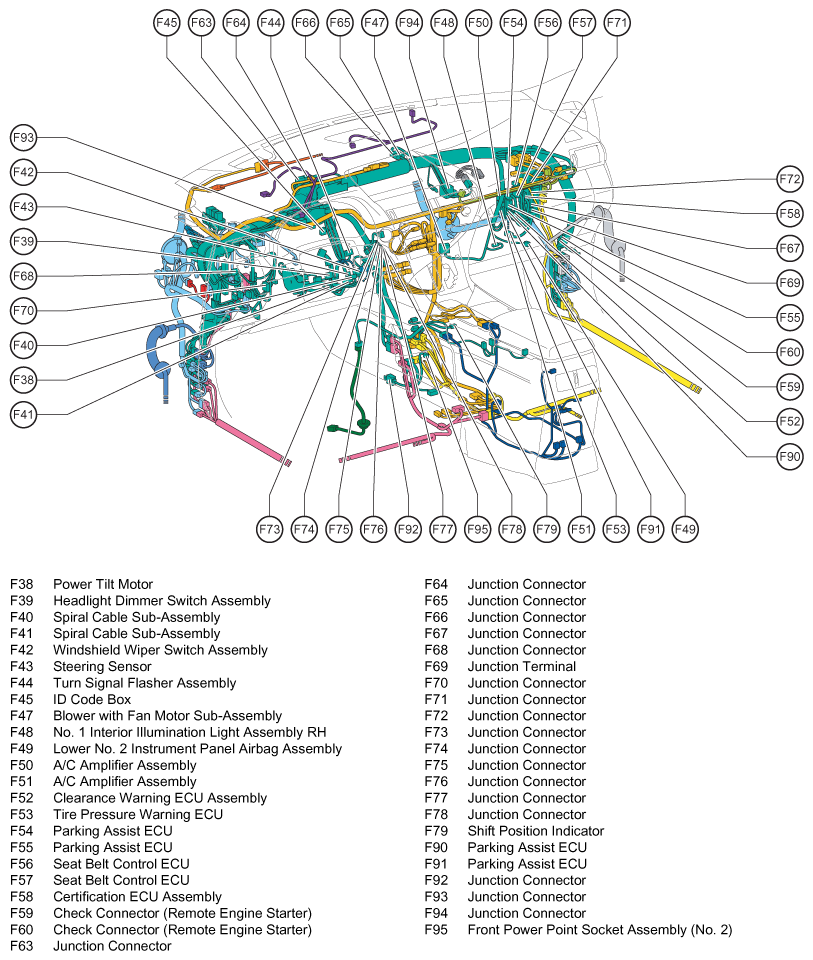

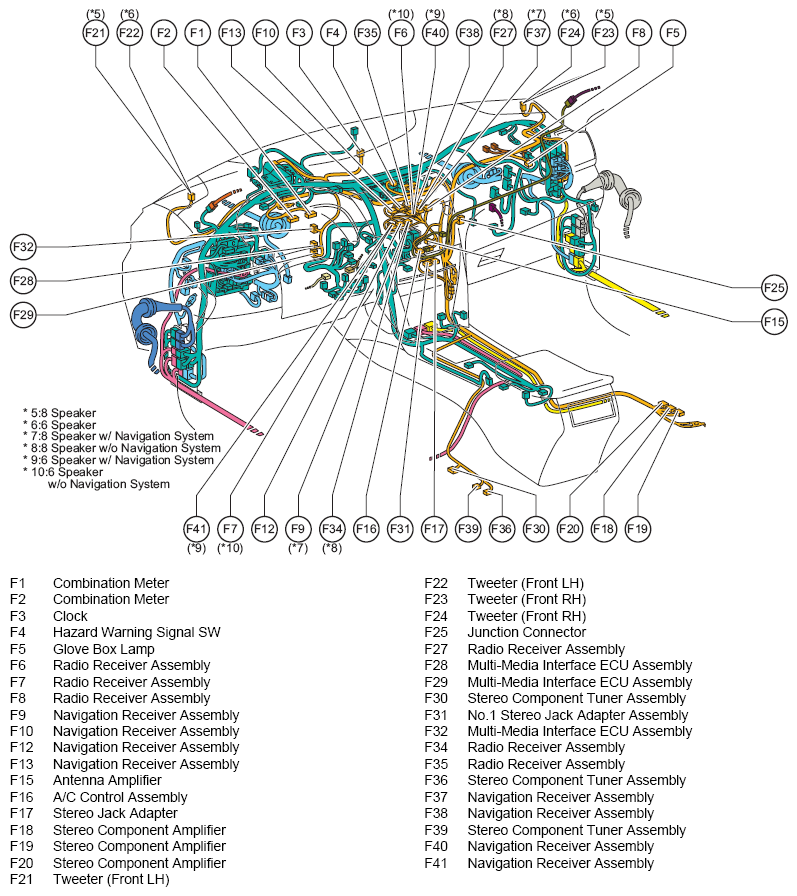

Fig 1: Instrument Panel Parts (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

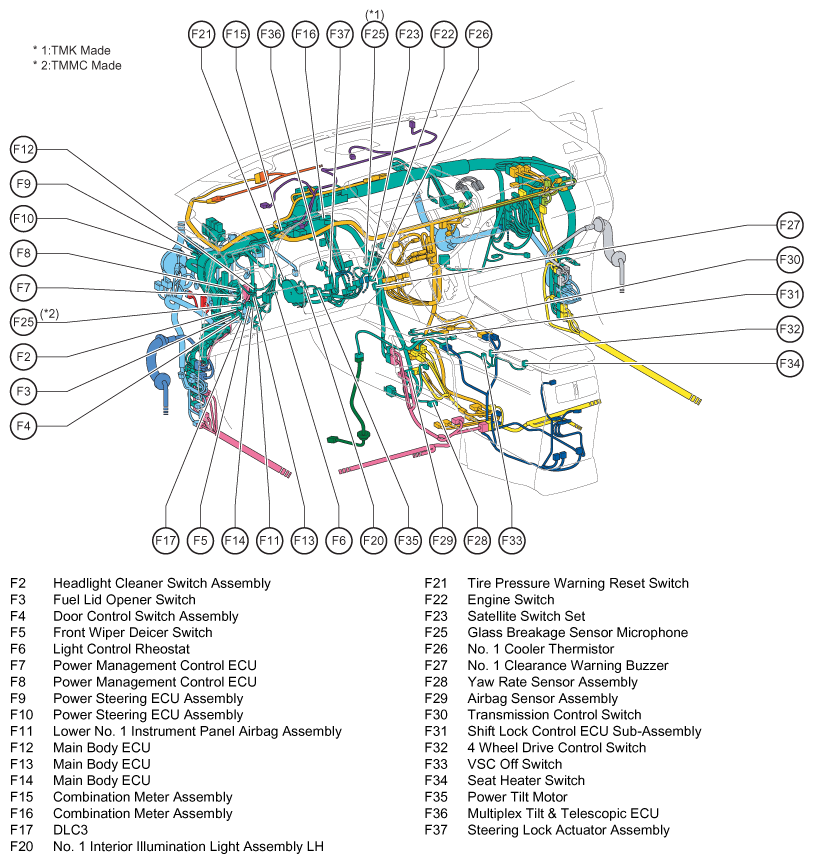

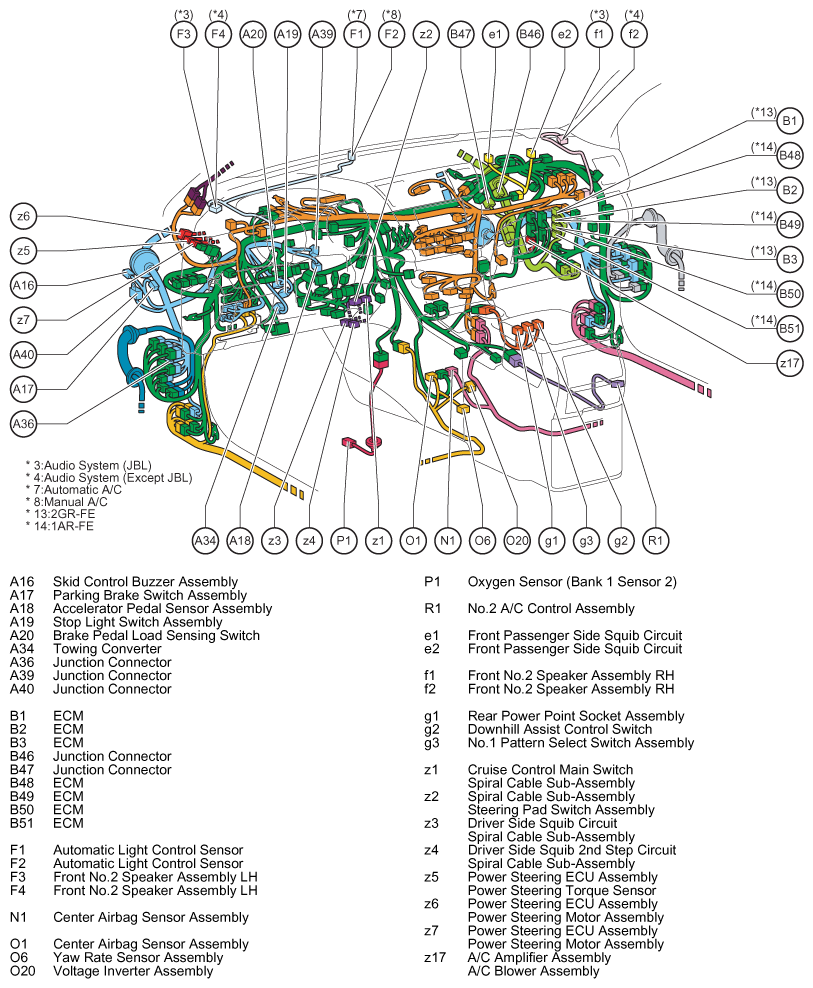

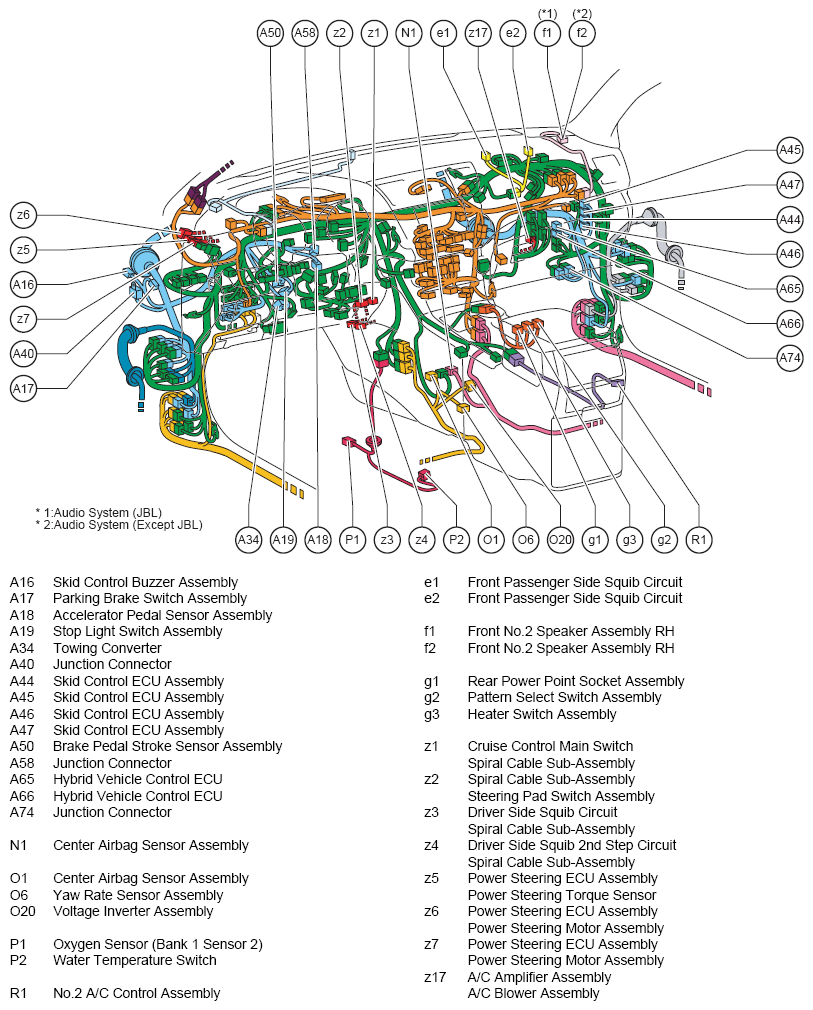

Fig 2: Instrument Panel Parts (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

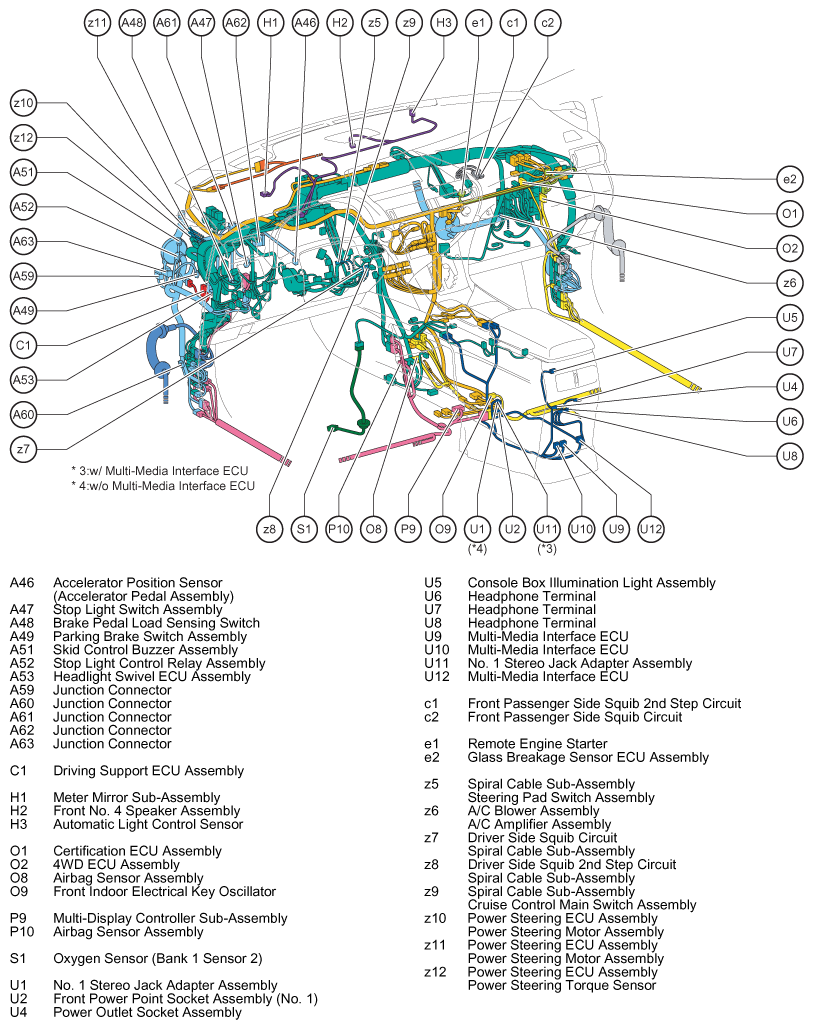

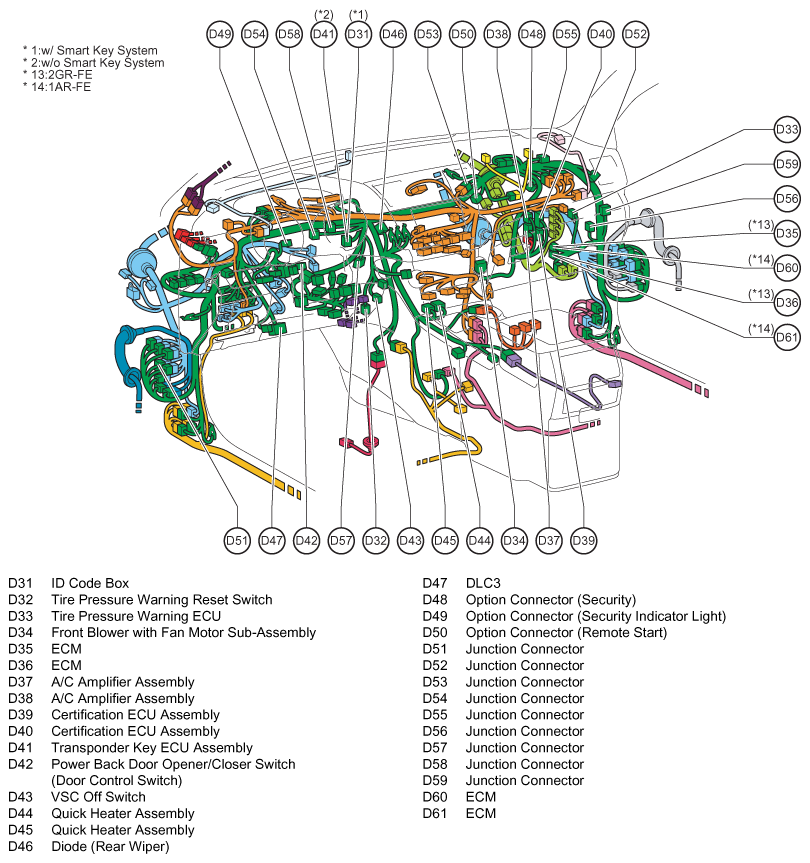

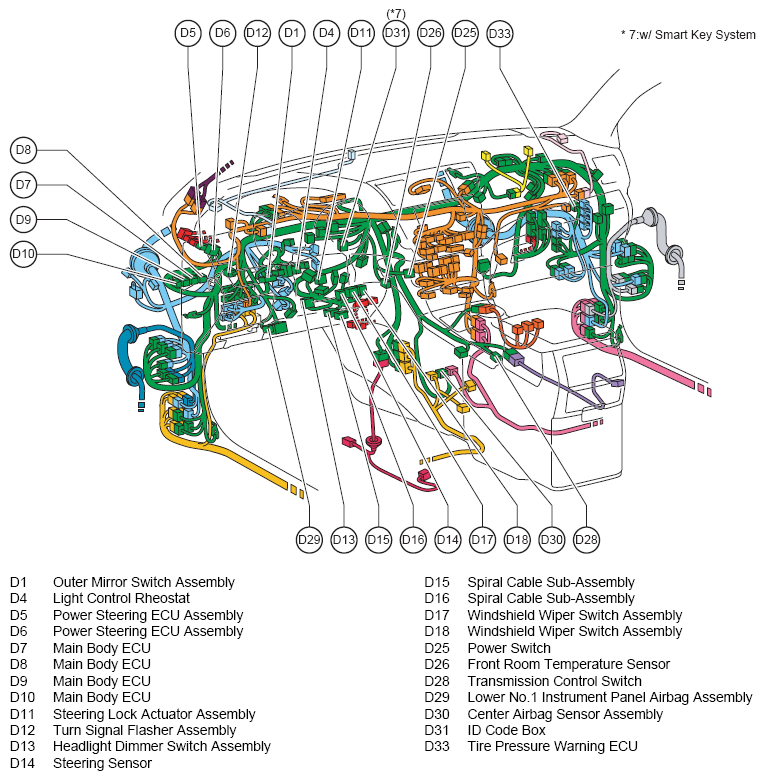

Fig 3: Instrument Panel Parts (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

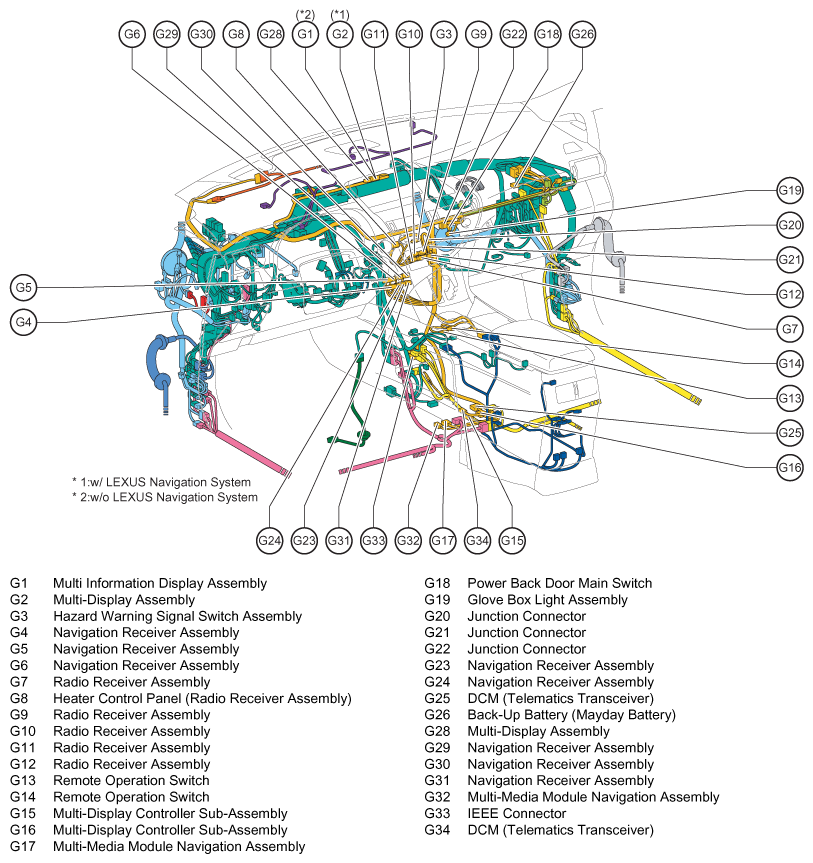

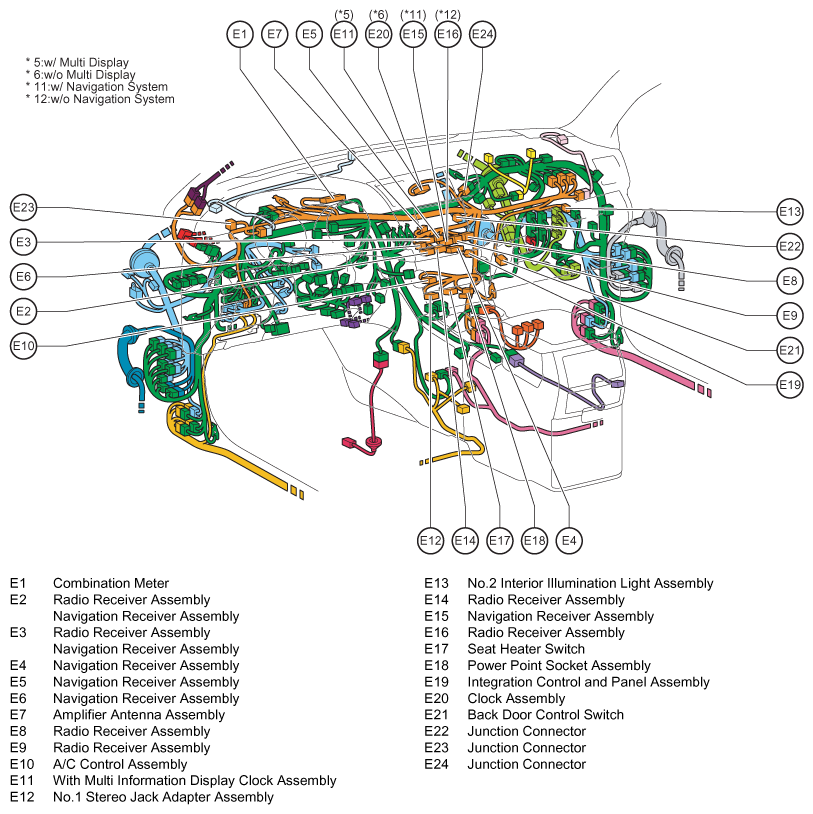

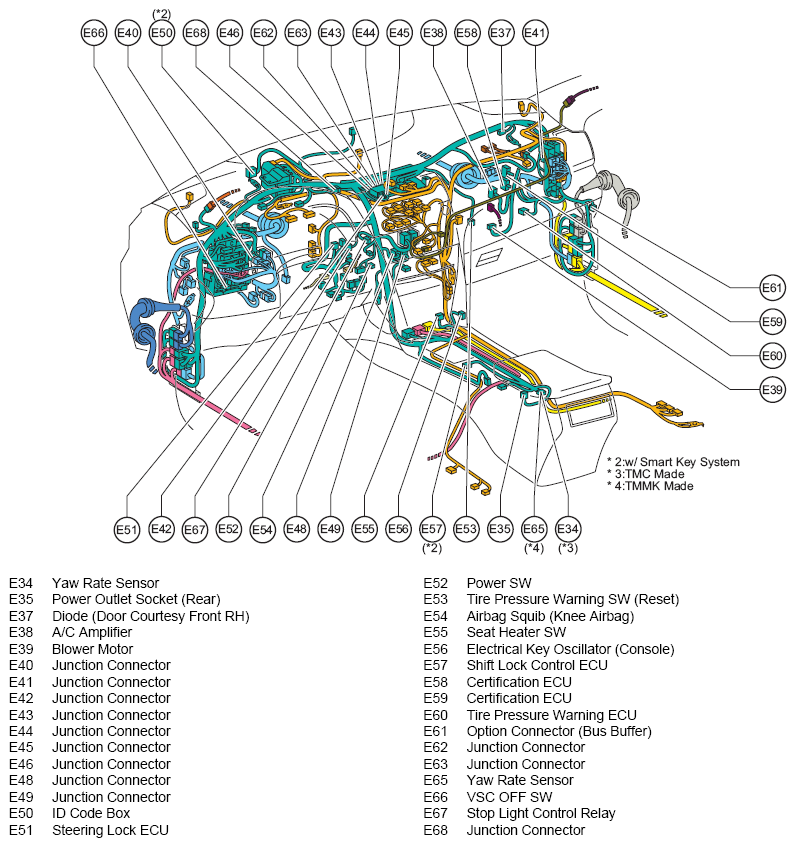

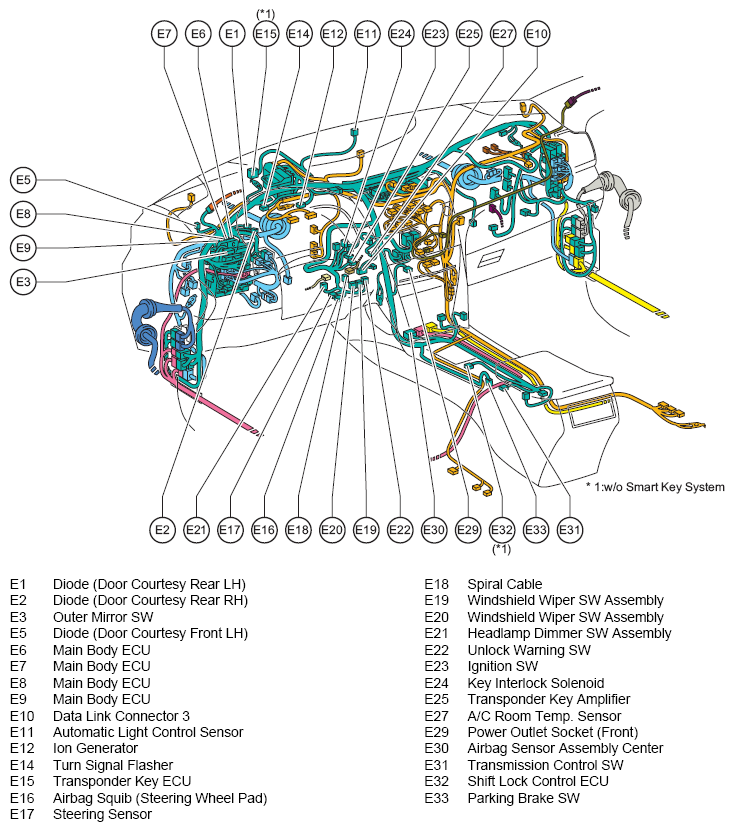

Fig 4: Instrument Panel Parts (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
