Position of Parts in Body — 2012 Toyota Highlander Hybrid Service Manual ~ LEMON Manuals

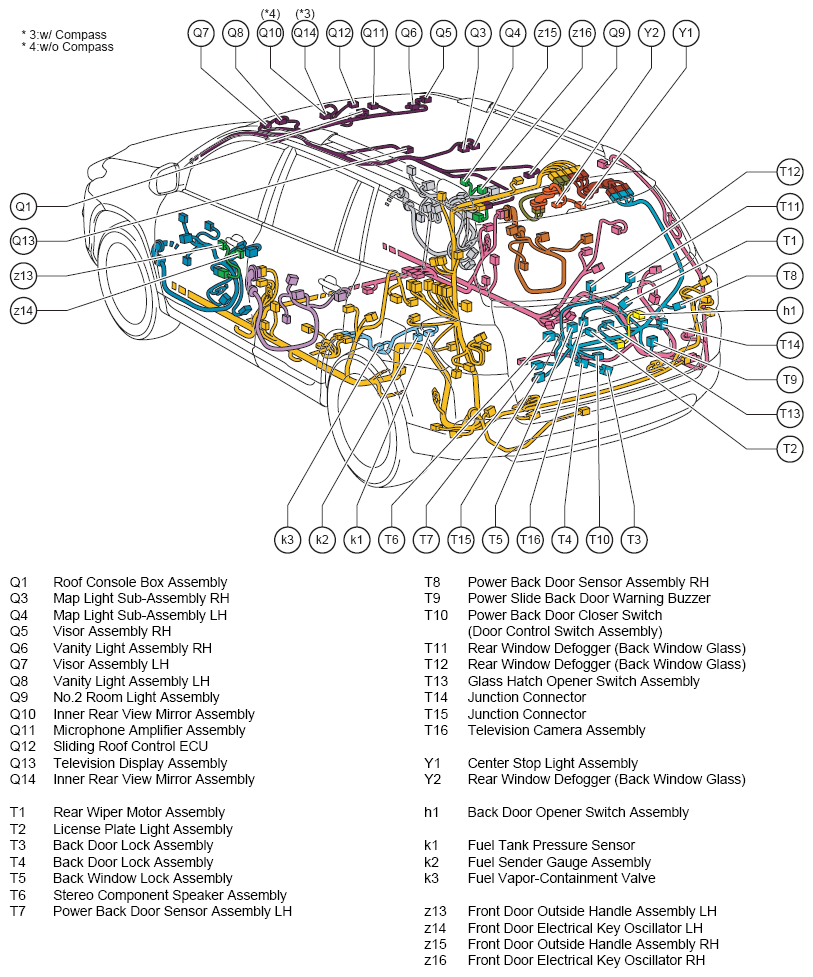

Fig 1: Body Parts (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

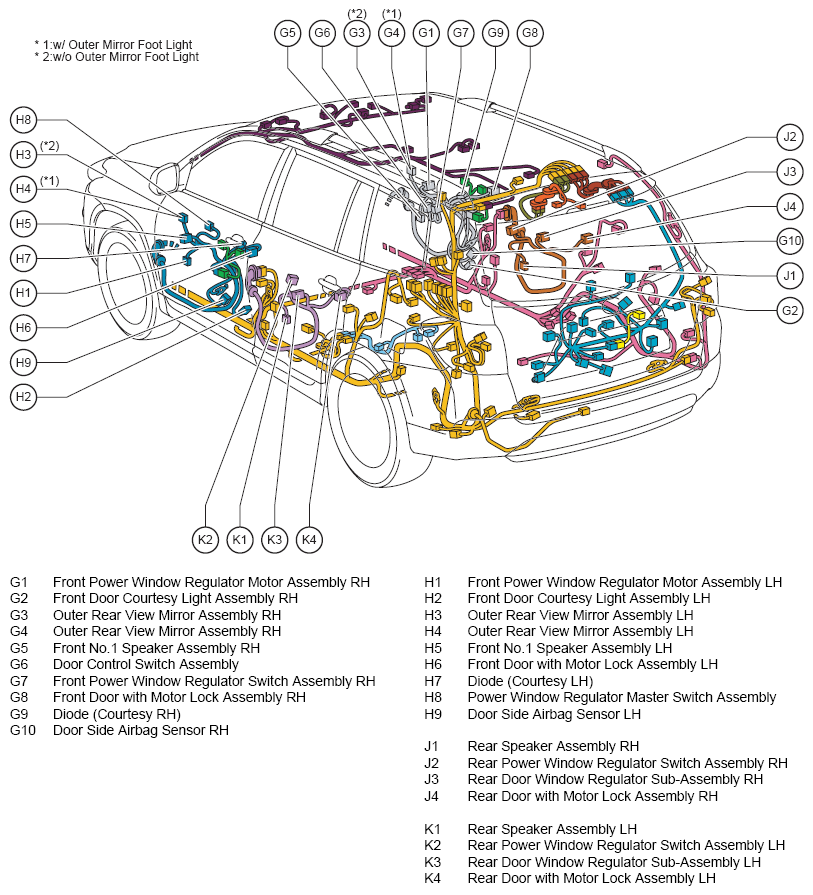

Fig 2: Body Parts (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

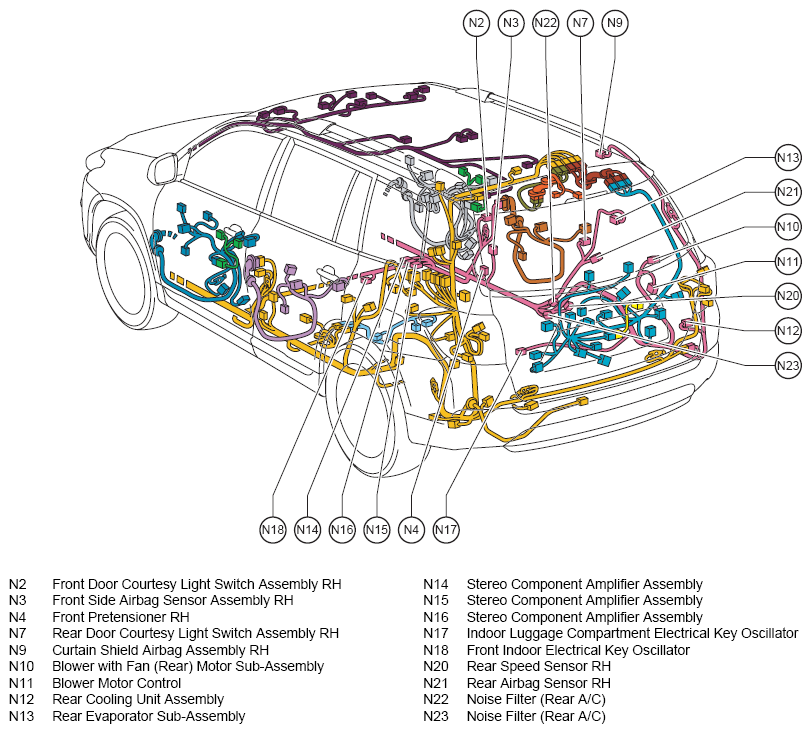

Fig 3: Body Parts (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Body Parts (4 Of 5)

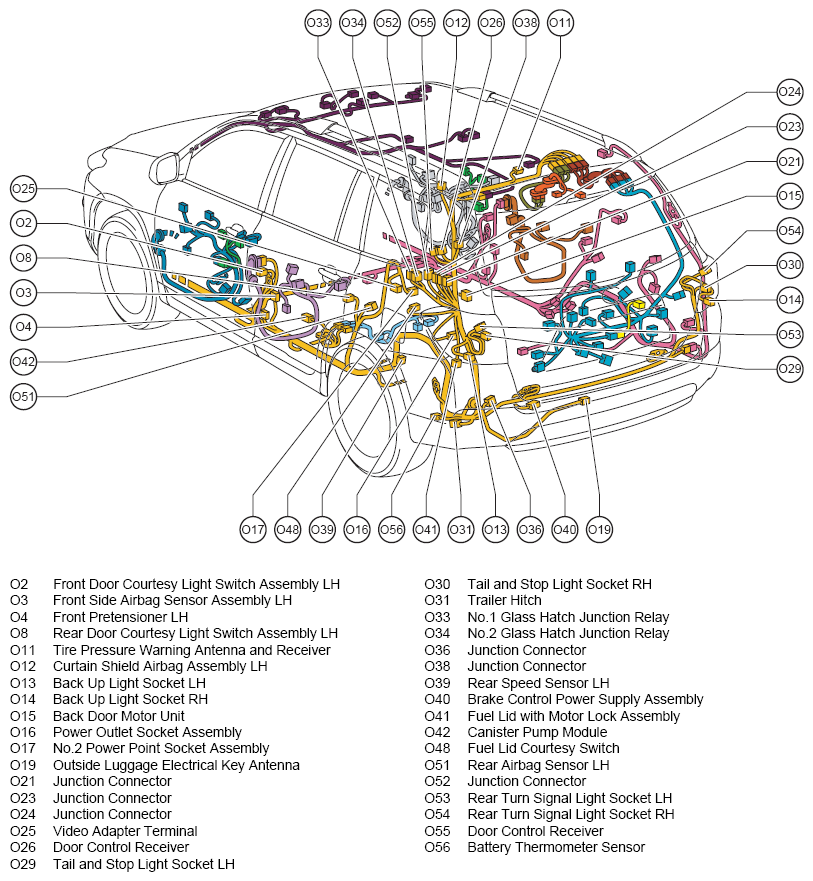

Fig 5: Body Parts (5 Of 5)
