: Location of Ground Points: Notes

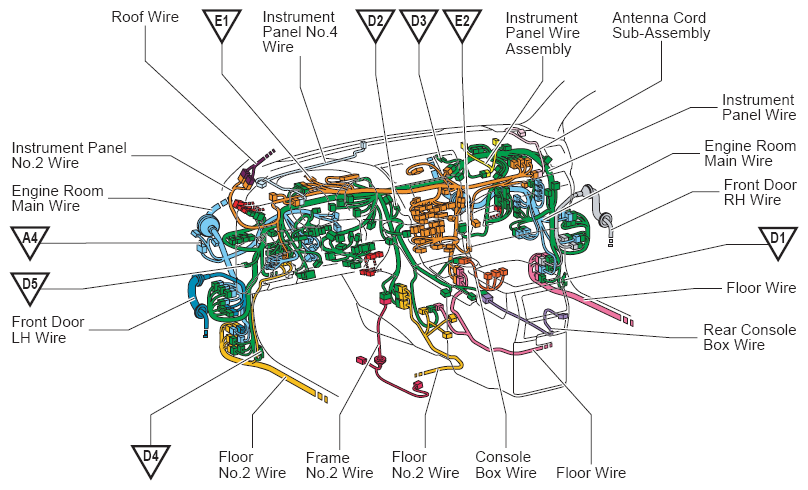

Fig 1: Locating Ground Points
G08857752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

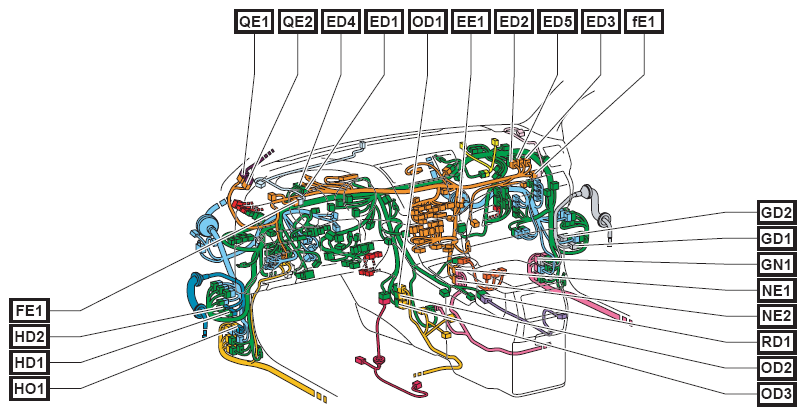

Fig 2: Locating Wiring Harnesses (1 Of 2)
G08857753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

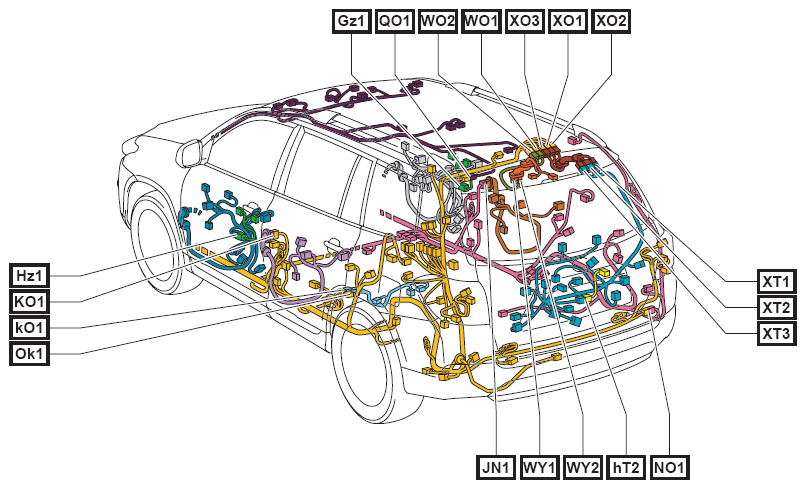

Fig 3: Locating Wiring Harnesses (2 Of 2)
G08857754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

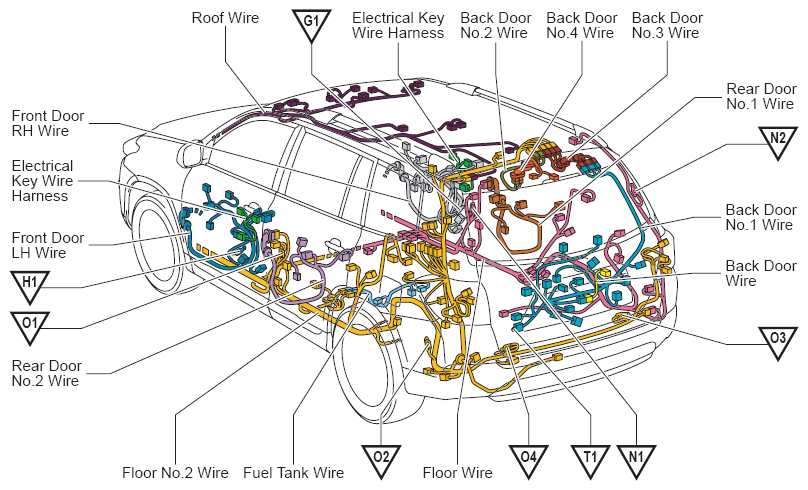

Fig 4: Locating Ground Points
G08857755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

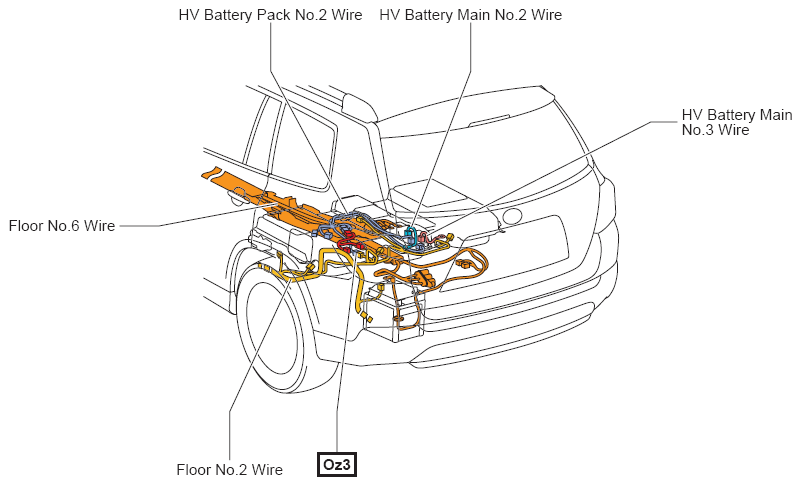

Fig 5: Locating Wiring Harnesses
G08857756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
