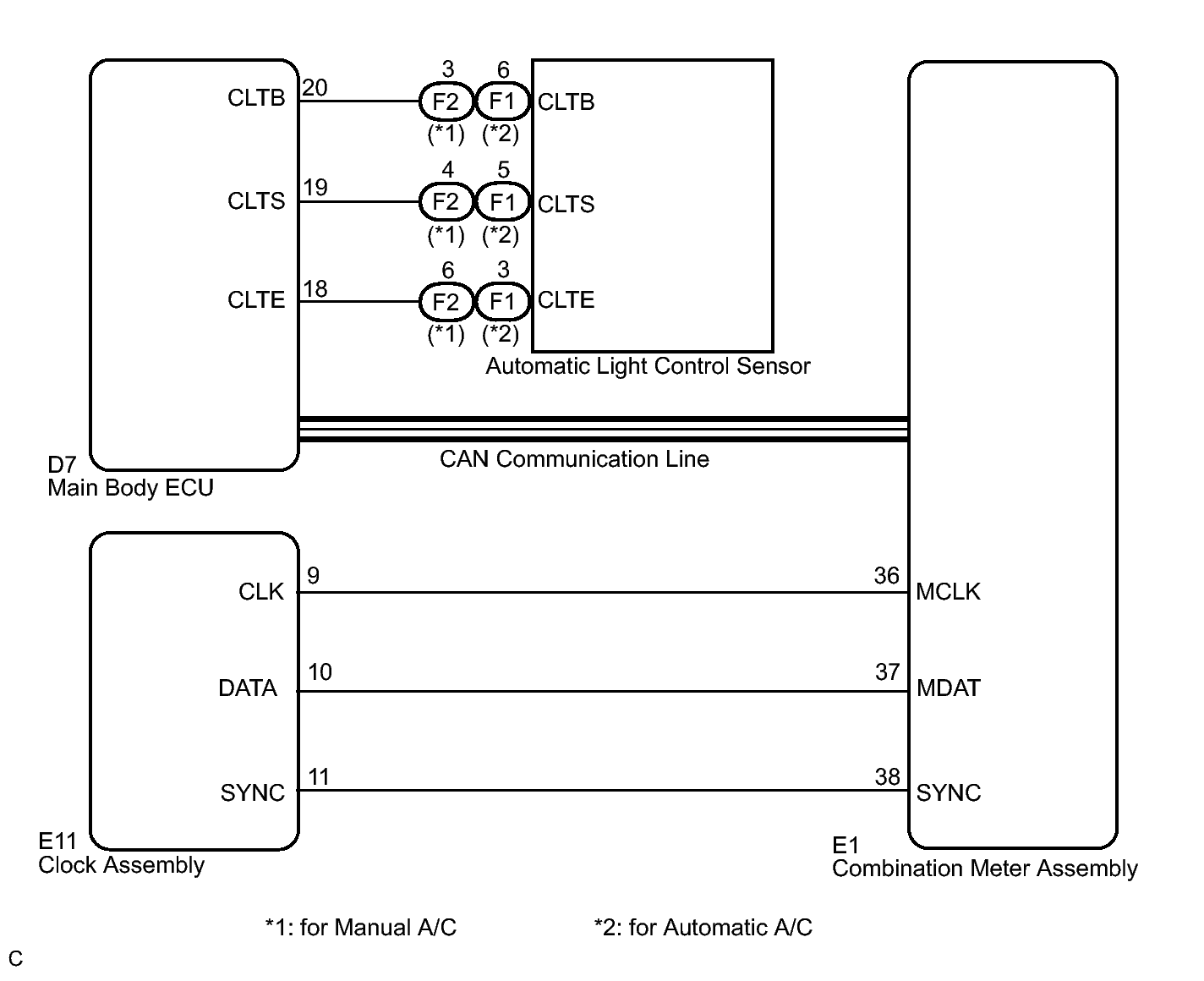

Home >> Toyota >> 2012 >> Highlander Hybrid >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Clock System (Diagnostics & Circuit Tests) (Hybrid) >> Clock System >> Illumination Circuit >> Wiring Diagram
