Engine Room Relay Block No. 2 Assembly - Front Fender Apron LH
Engine Compartment (See Figure)

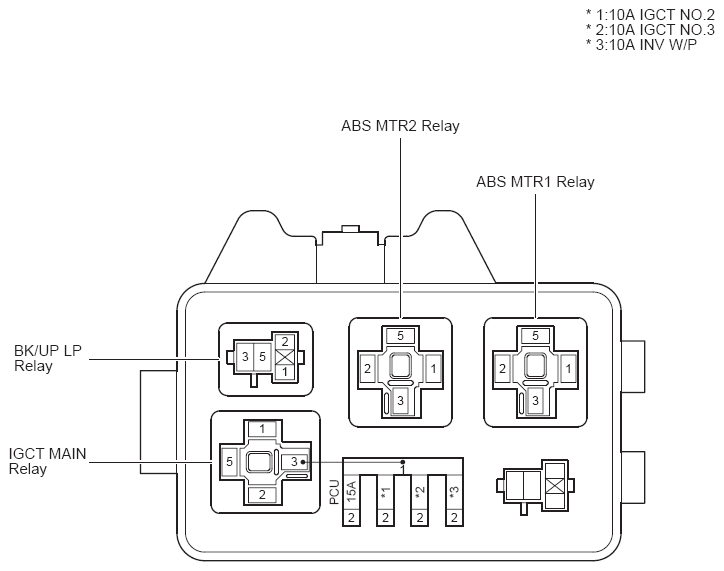

Engine Room R/B No. 2 Relay Identification
| RELAY DESCRIPTION |
|---|
| IGCT Main Relay |
| BK/UP LP Relay |
| ABS MTR2 Relay |
| ABS MTR1 Relay |
Engine Room R/B No. 2 Assembly Fuse Identifying Legend
| Fuse | System | |
|---|---|---|
| 10A | IGCT NO. 2 | Hybrid System |
| Multi-Display and Parking Assist (Rear View Monitor w/o Navigation System) | ||
| 10A | IGCT NO. 3 | Audio System (JBL), Navigation System and Parking Assist (Rear View Monitor w/Navigation System) |
| Back Door Opener (w/o Power Back Door), Door Lock Control, Glass Hatch Opener and Wireless Door Lock Control (w/o Smart Key System) | ||
| Back-Up Light | ||
| EPS | ||
| Hybrid System | ||
| Hybrid Vehicle Immobiliser System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System) | ||
| Interior Light | ||
| Power Back Door | ||
| 10A | INV W/P | Air Conditioning |
| 15A | PCU | Hybrid System |
