Rear Wiper And Washer, Trailer Towing

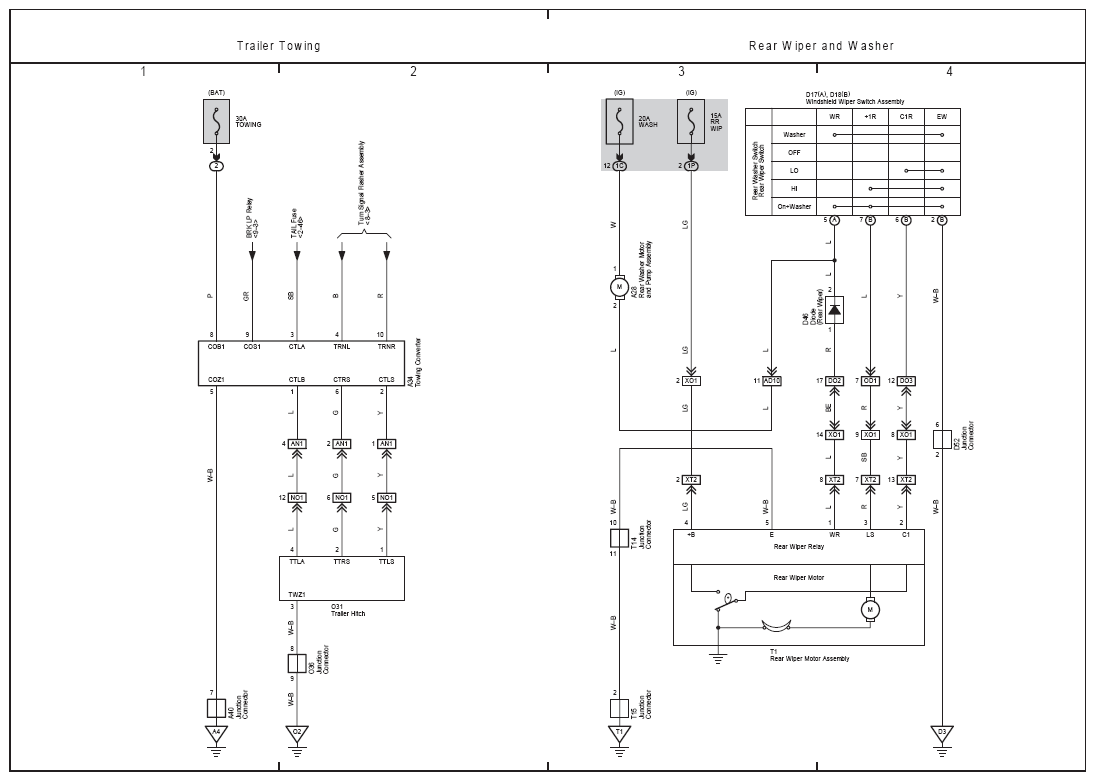

Fig 1: Rear Wiper And Washer, Trailer Towing Electrical Wiring Diagram

G08858530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
